110V 1~200Hz Electromagnetic Vibration Table
Product Overview
The intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries.
The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration. The split type design can greatly reduce the failure rate of the control circuit.
1.Product parameter:
Voltage:
AC110V
Power: 1.5kW
Rated test load weight: 132lbs(60kg)
Working table size: 19.7"*19.7"(50cm*50cm)
Vibration frequency range: 1~200Hz
(Fixed frequency or sweep frequency can be set arbitrarily)
No-load vibration amplitude: 0 ≤ 5mm PP
(Note: The vibration amplitude varies depending on frequency and weight. The
amplitude under no load must not exceed ±2.5 mm.)
Vibration direction: Vertical / (Y/X/Z)
Operating environment: 0~40 ℃; RH＜80%
Net weight/Gross weight: 502.6lbs(228kg)/619.5lbs(281kg)
Note: It
can be set with 20 different vibration parameters. The testing time for each
segment can be set arbitrarily, up to 999 minutes (i.e., 16 hours), and the
number of cycles can range from 0 to 200 times (standard model).

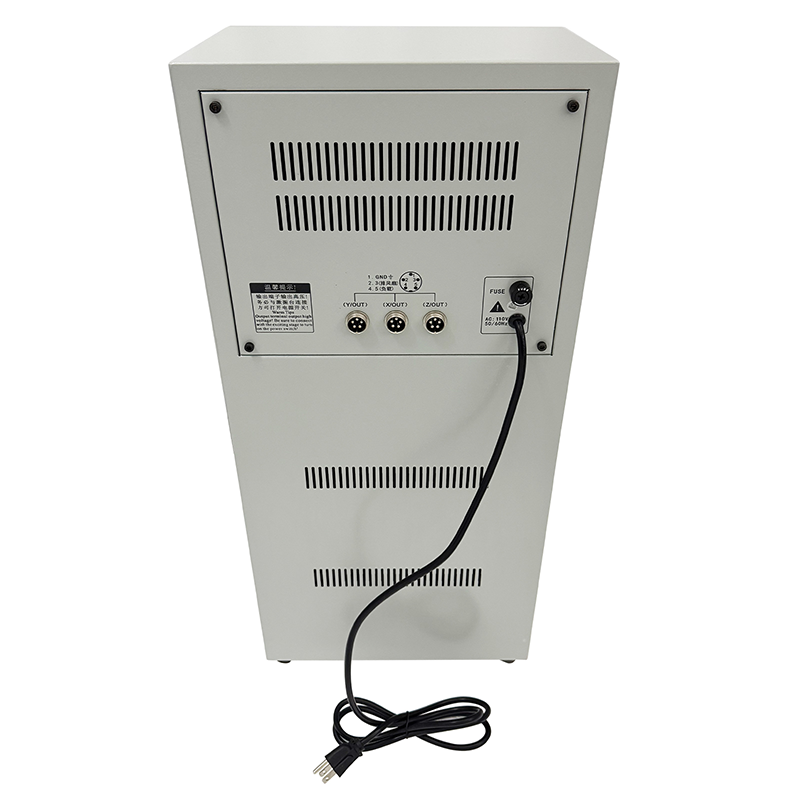

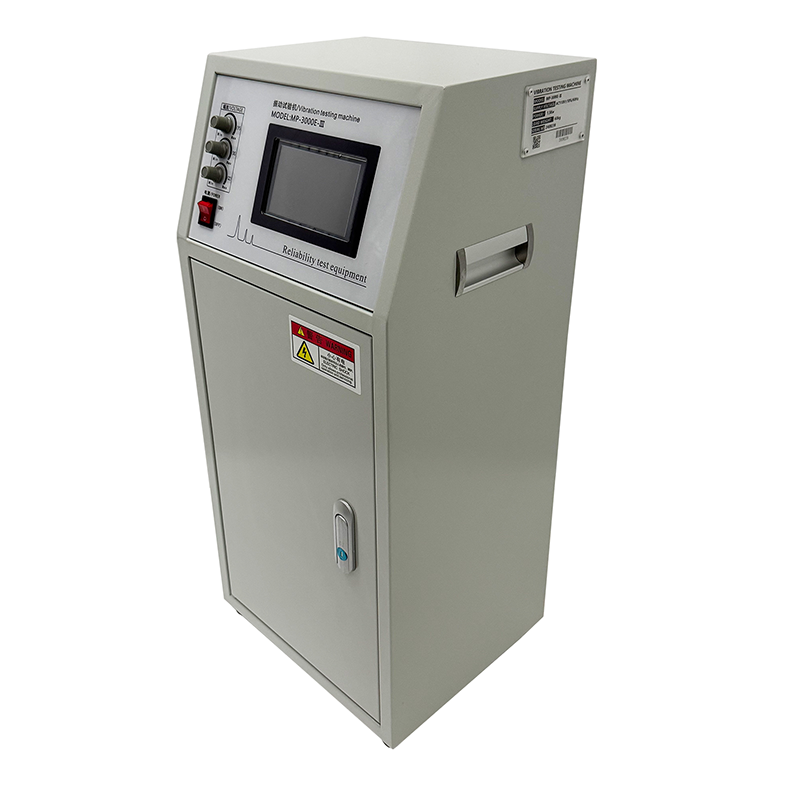

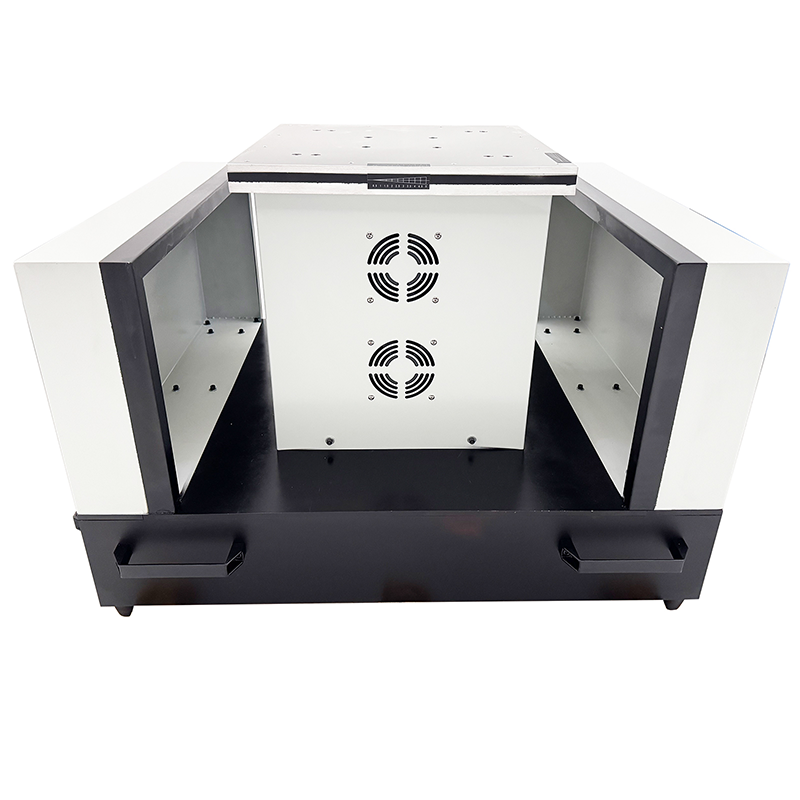

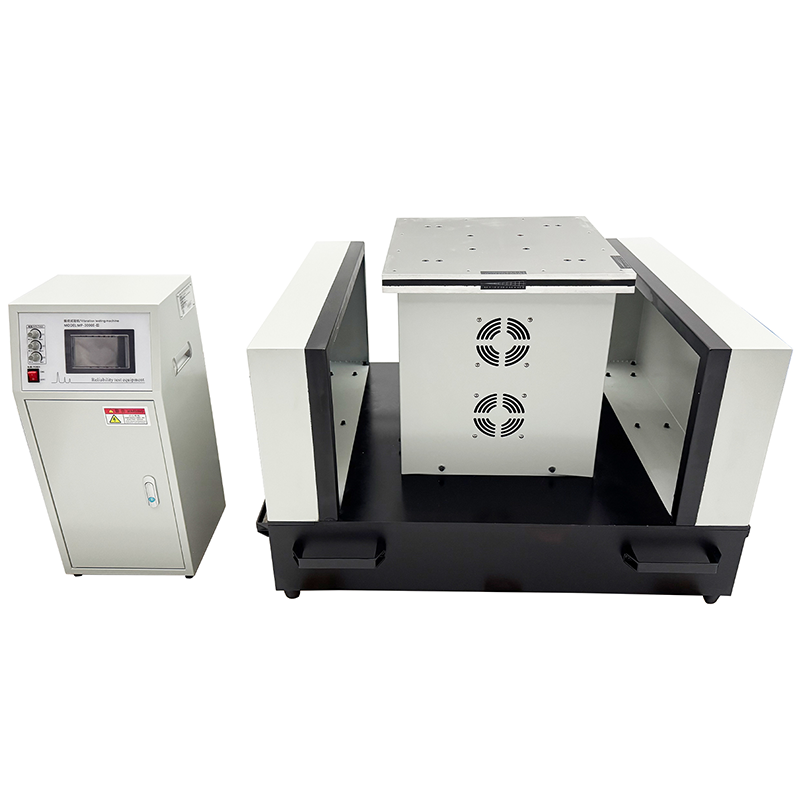

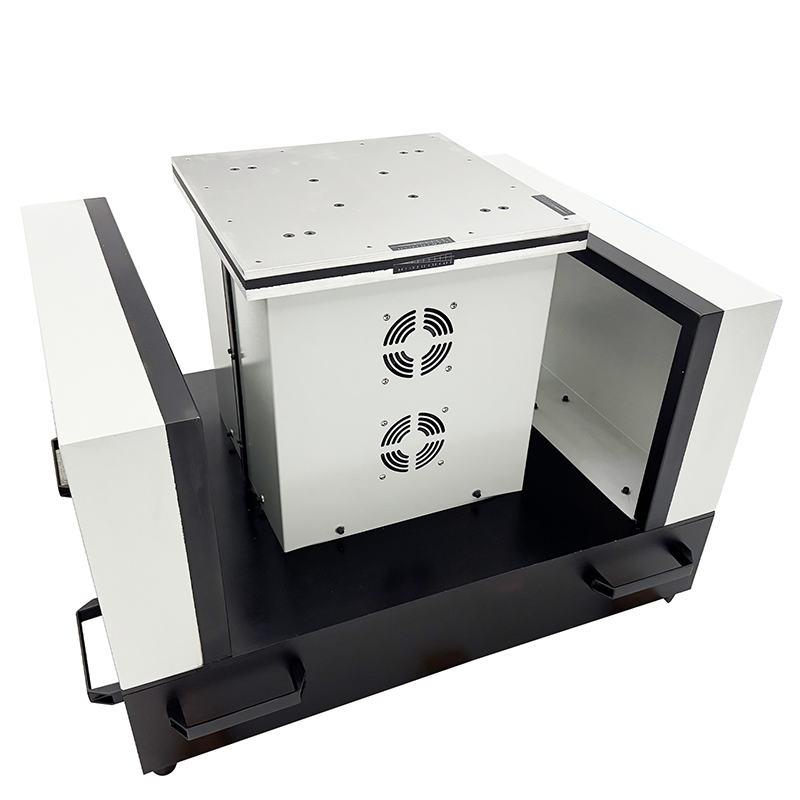

2.Product display:
3.Product features:
-----Power
off Automatic Memory
Automatic setting, simple operation, the use of advanced microcomputer control
circuit, you can permanently memory set parameters, power will not lose data. At
the same time, the number of vibration program segments and the number of
program cycles can be set. When the machine completes the vibration test stop or
the machine is shut down and powered off, the machine will automatically
remember the current vibration data and automatically reset.
-----Intelligent Control
Built-in overload protection fuse, and equipped with high-performance chip, read
data more accurately. The microcomputer protection circuit is adopted to
overcome the defect that the ordinary machine is burned by the impulse voltage
when starting up, and the use is more convenient and reliable.
-----Safe and Reliable
The hooks can be firmly hung on the vibration test machine, while the strap has
enough elasticity and strength to tightly tie the object under test to ensure
that no loosening or displacement occurs during the vibration test.
-----Precise Control
Frequency and amplitude are adjusted independently, without affecting each
other). The amplitude changes with the change of frequency and load weight, the
higher the frequency, the amplitude decreases and the acceleration increases
accordingly.
-----Easy to Move
There are handles on both sides of the machine for easy lifting and handling,
and it can be easily moved to the place where it is needed, saving time and
effort.
-----Smooth Operation
Both test bench and the control cabinet have heat dissipation holes, timely heat
dissipation, discharge the excess heat inside the machine, to ensure the
long-term stable operation of the machine.

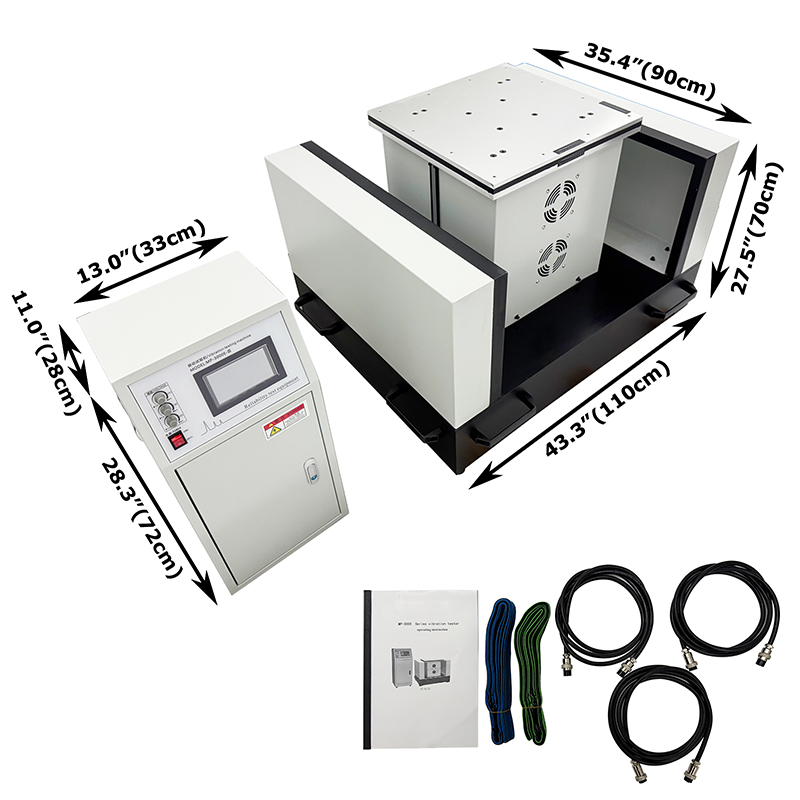

4.Product dimensions:
