110V MP-3000E+ Variable Frequency Vibration Test Bench
Product Overview
MP-3000E+ intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries.
The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration. The split type design can greatly reduce the failure rate of the control circuit.
1.Product parameter:
Model:
MP-3000E+
Voltage: 110V
Power: 1.5kW
Rated test load weight: 132lbs(60kg)
Vibration frequency range: 1~400hz
(Fixed frequency or sweep frequency can be set arbitrarily)
No-load maximum displacement (amplitude): P～P/5mm
Working surface size: 19.7"*19.7"(50cm*50cm)
Vibration direction: Vertical, left and right, (Y / X)
Operating conditions: 0～40℃, RH<80%
Net weight/Gross weight: 352.3lbs(159.8kg) / 391.8lbs(177.7kg)

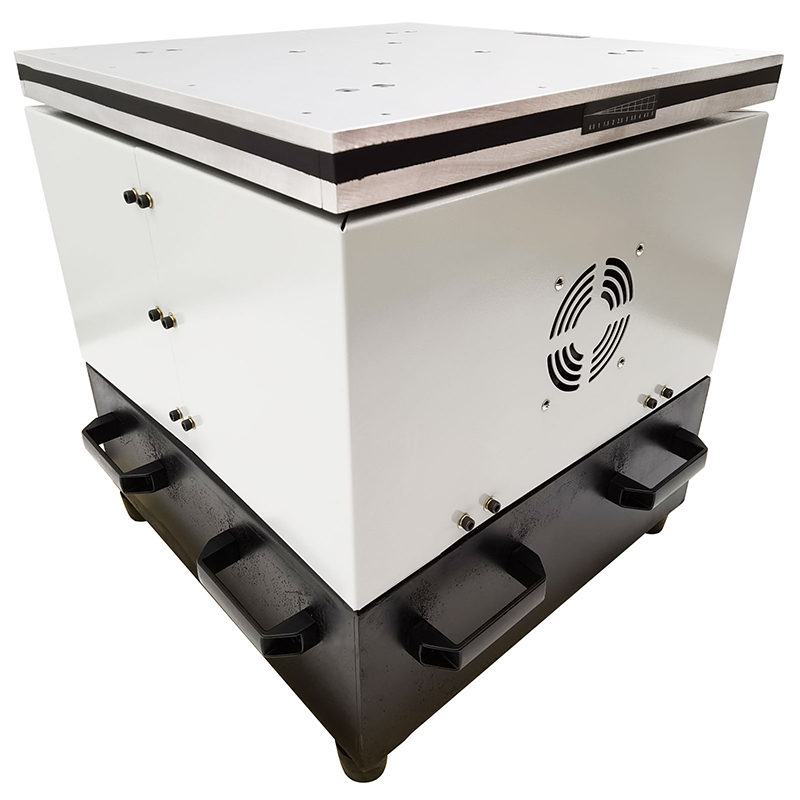

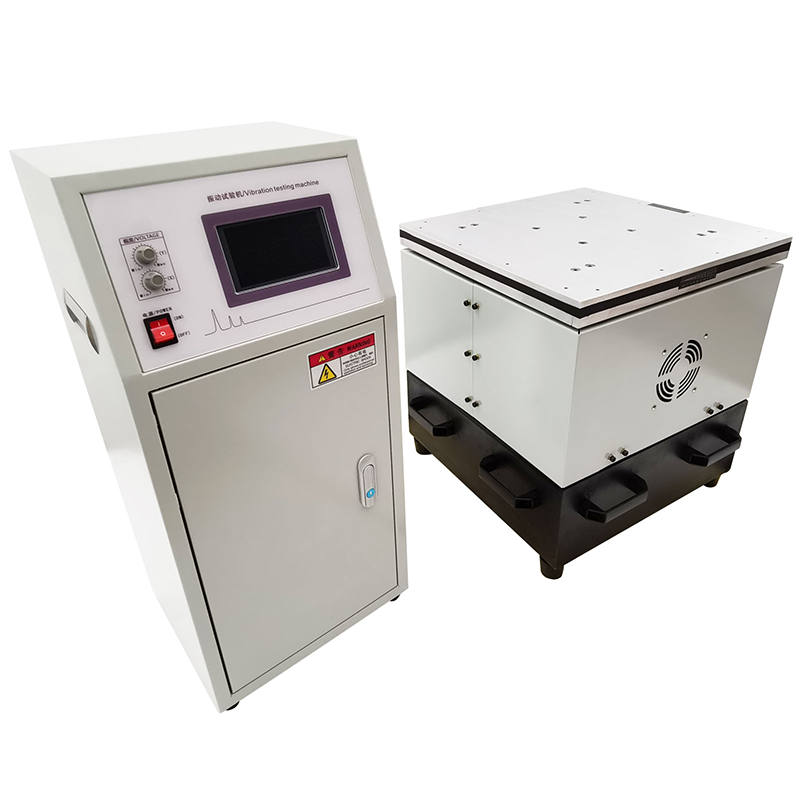

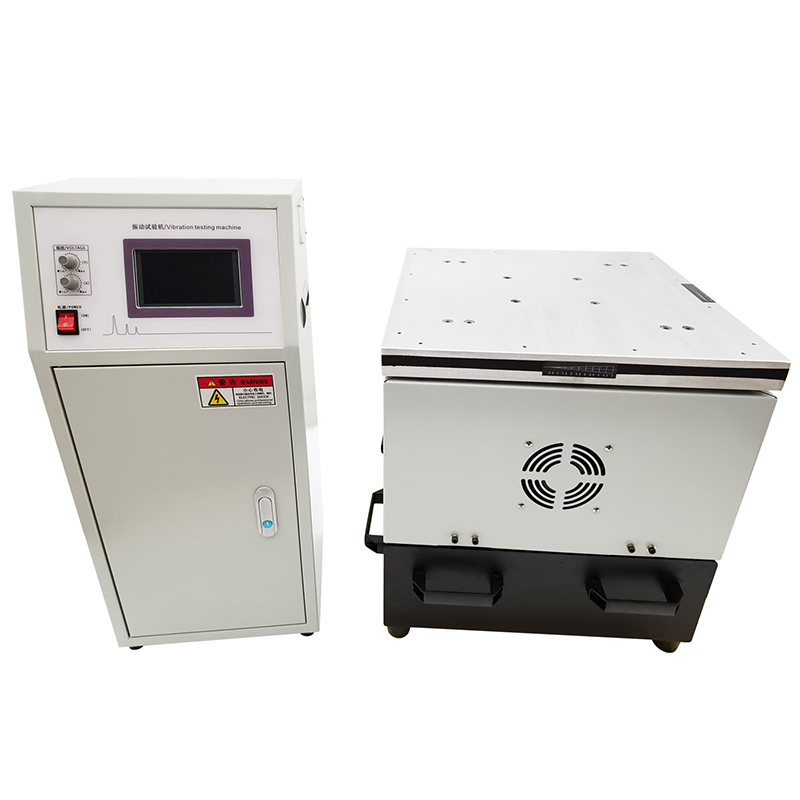

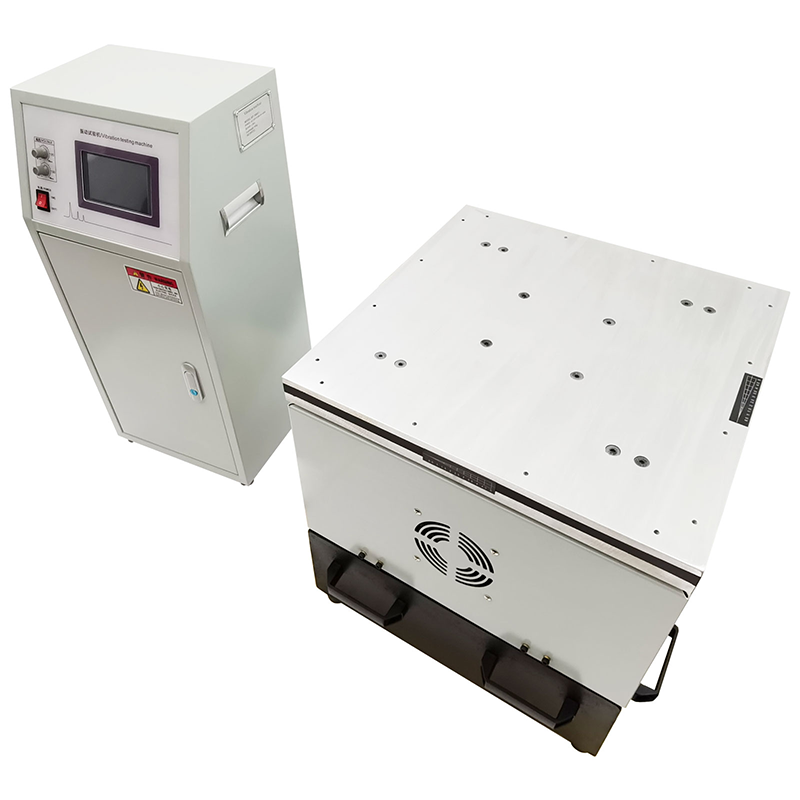

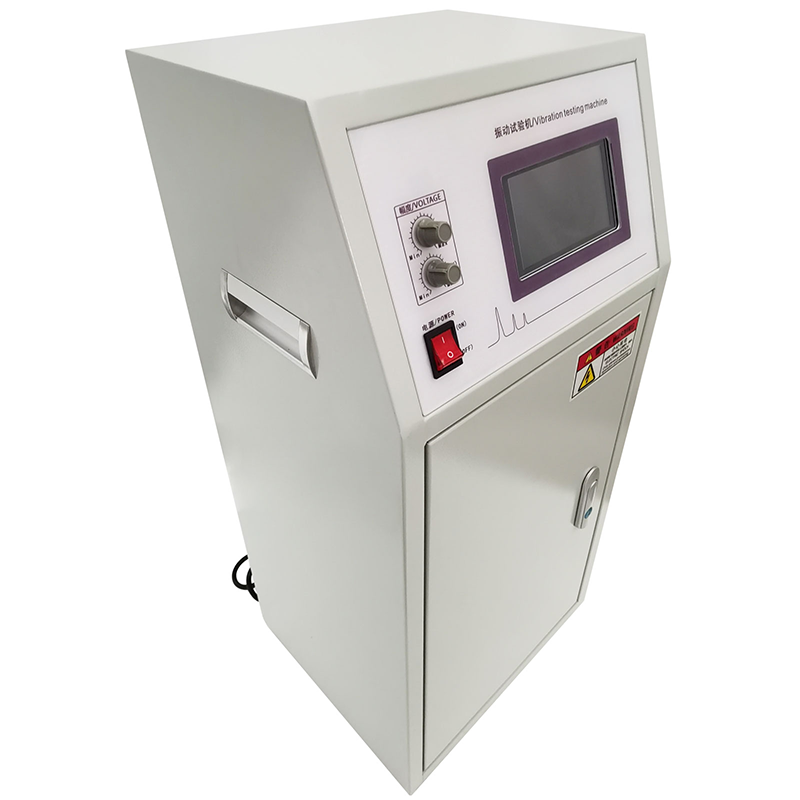

2.Product display:
3.Product features:
-----Automatic setting, simple operation, the use of advanced microcomputer
control circuit, you can permanently memory set parameters, power will not lose
data. At the same time, the number of vibration program segments and the number
of program cycles can be set. When the machine completes the vibration test stop
or the machine is shut down and powered off, the machine will automatically
remember the current vibration data and automatically reset.
-----Built-in overload protection fuse, and equipped with high-performance chip,
read data more accurately. The microcomputer protection circuit is adopted to
overcome the defect that the ordinary machine is burned by the impulse voltage
when starting up, and the use is more convenient and reliable.
-----Both test bench and the control cabinet have heat dissipation holes, timely
heat dissipation, discharge the excess heat inside the machine, to ensure the
long-term stable operation of the machine.
-----Rubber support legs at the bottom, which are non-slip, wear-resistant, good
silence, can ensure the stability of the machine, and can prevent water from
entering the machine from the bottom.
-----There are handles on both sides to facilitate the handling and moving of
the machine, and the machine can be moved to the place where it needs to work at
any time, saving worry and effort and making it safer.

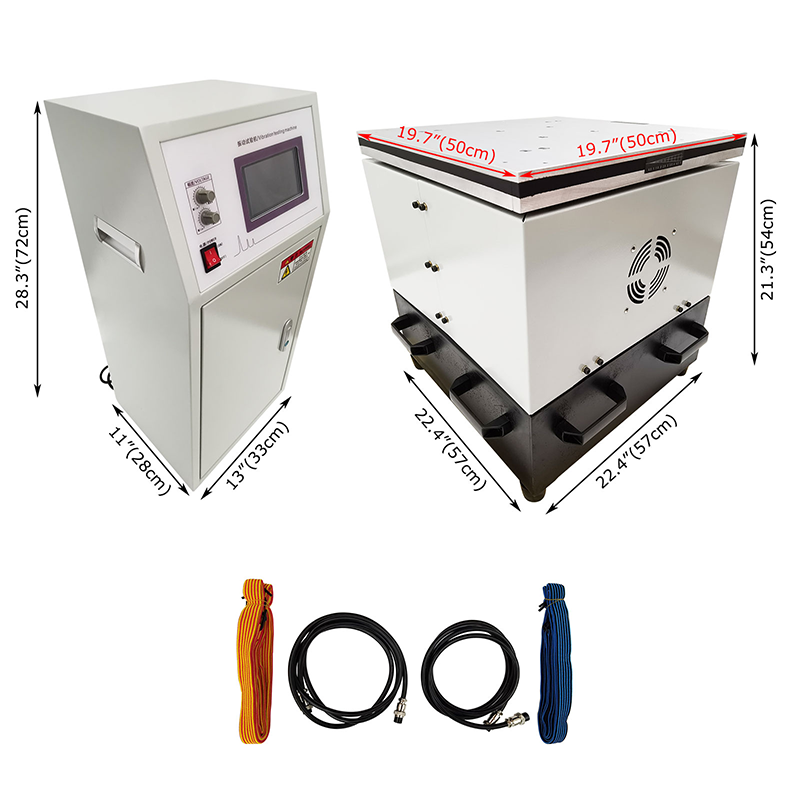

4.Product dimensions:
