110V MP-3000E+ Split-Type 3-Axis Variable Frequency Vibration Test Bench
MP-3000E+ intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries.
The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration. The split type design can greatly reduce the failure rate of the control circuit.
1.Product parameter:
Model:
MP-3000E+
Voltage: AC110V±10%/50-60Hz
Power: 1.5kW
Rated test load weight: 132lbs(60kg)
Vibration frequency range: 1~400hz
(Fixed frequency or sweep frequency can be set arbitrarily)
No-load maximum displacement (amplitude): P～P/5mm
Working surface size: 19.7"*19.7"(50cm*50cm)
Vibration direction: Vertical(Y), Horizontal(X), Longitudinal(Z)
Operating conditions: 0～40℃, RH<80%
Net weight/Gross weight: 393.5lbs(178.5kg) / 451.9lbs(205kg)
Different vibration parameters can be set in 20 segments, the maximum test time
of each period is 999 minutes (i. e. 16 hours), and the number of cycles of
0～200 times can be set arbitrarily.

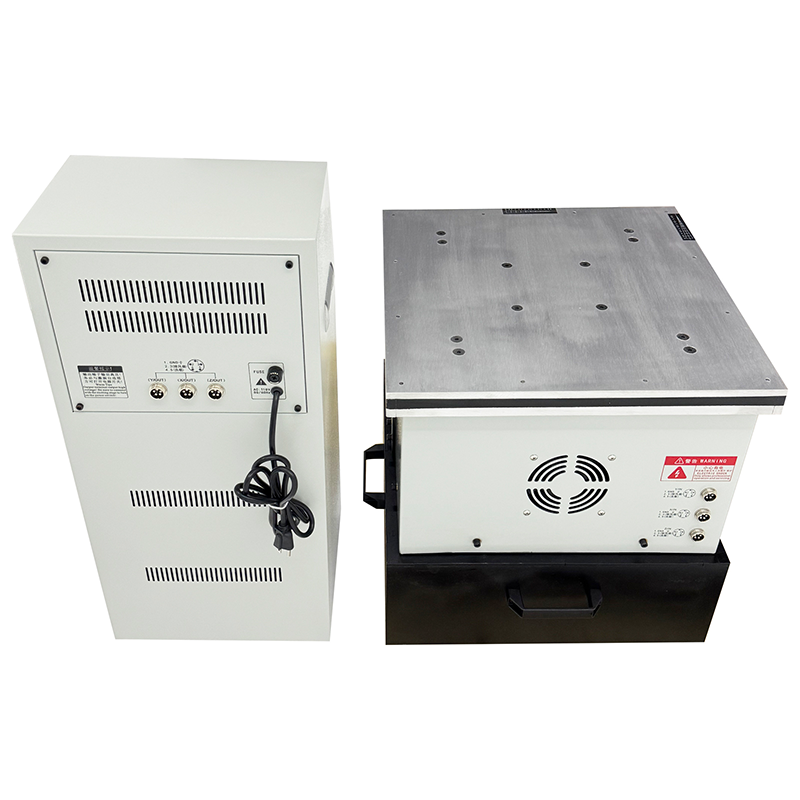

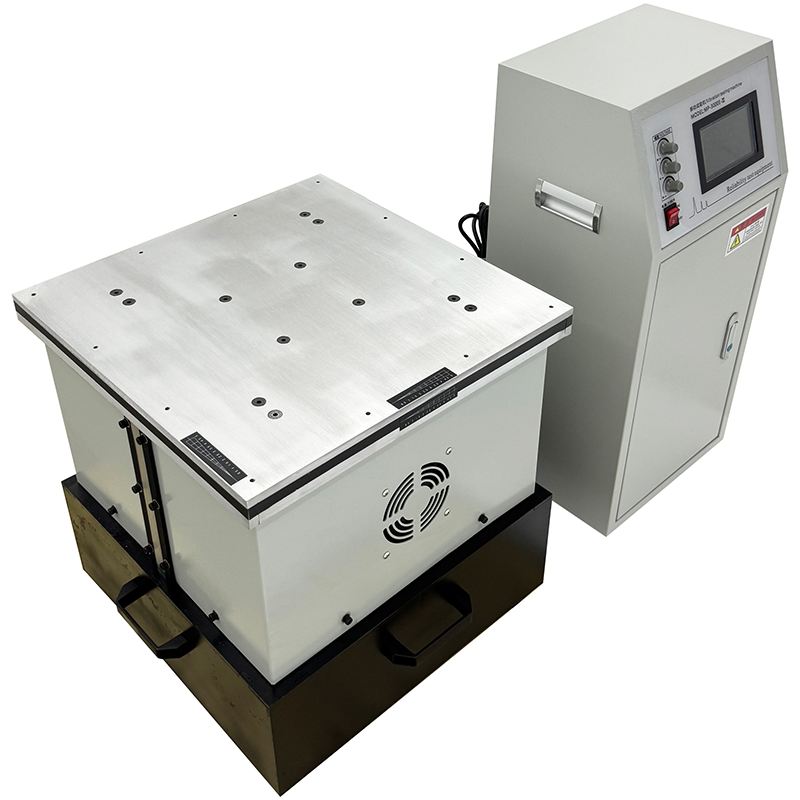

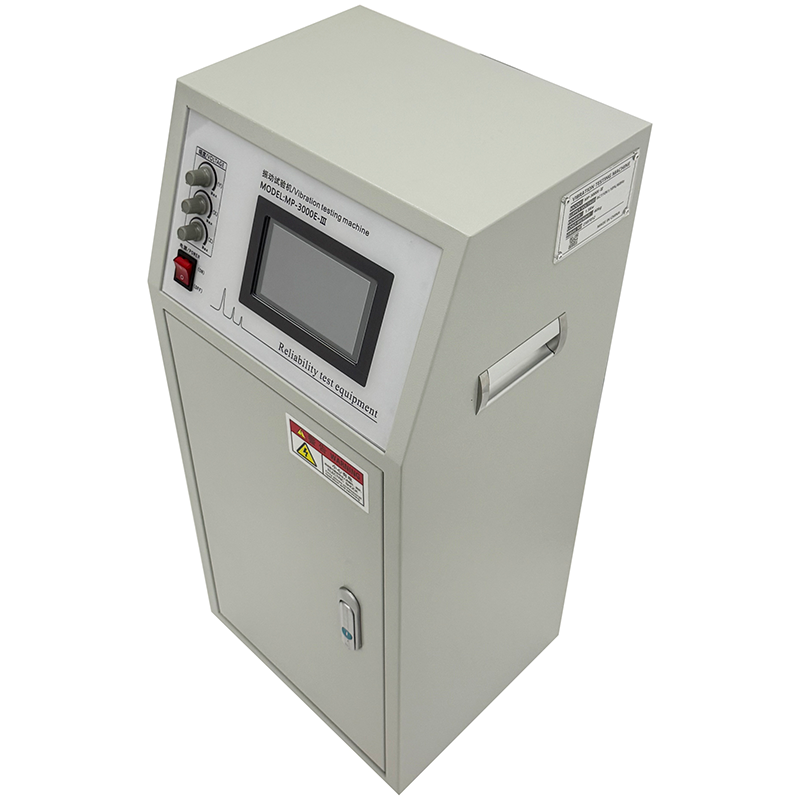

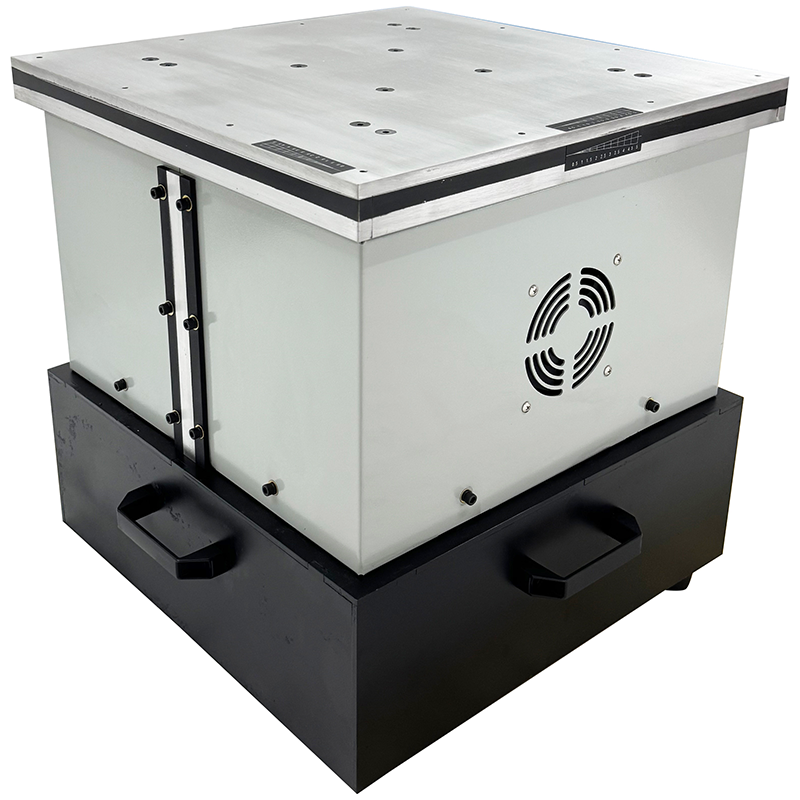

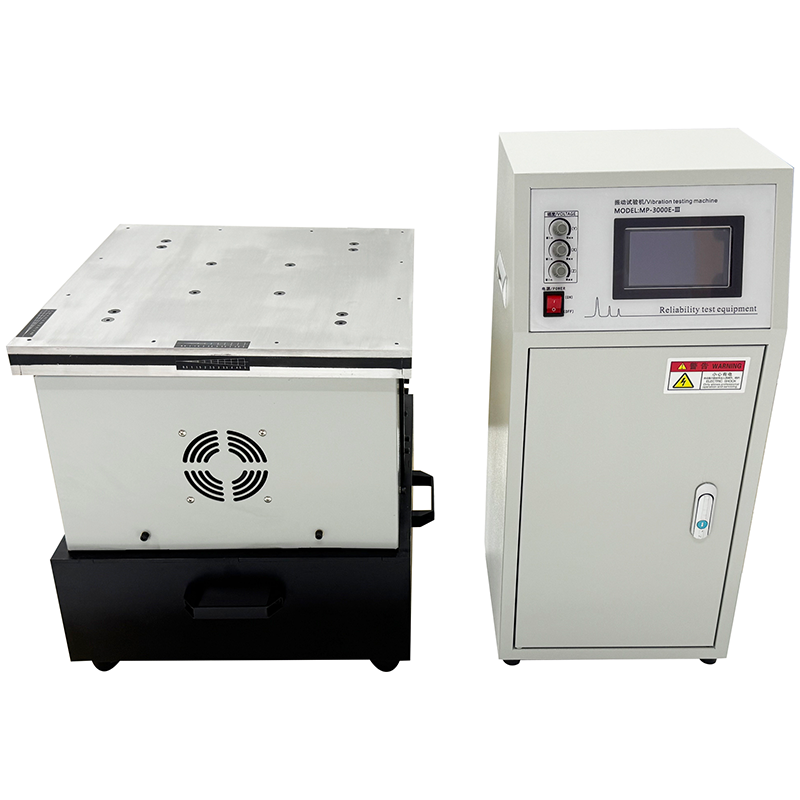

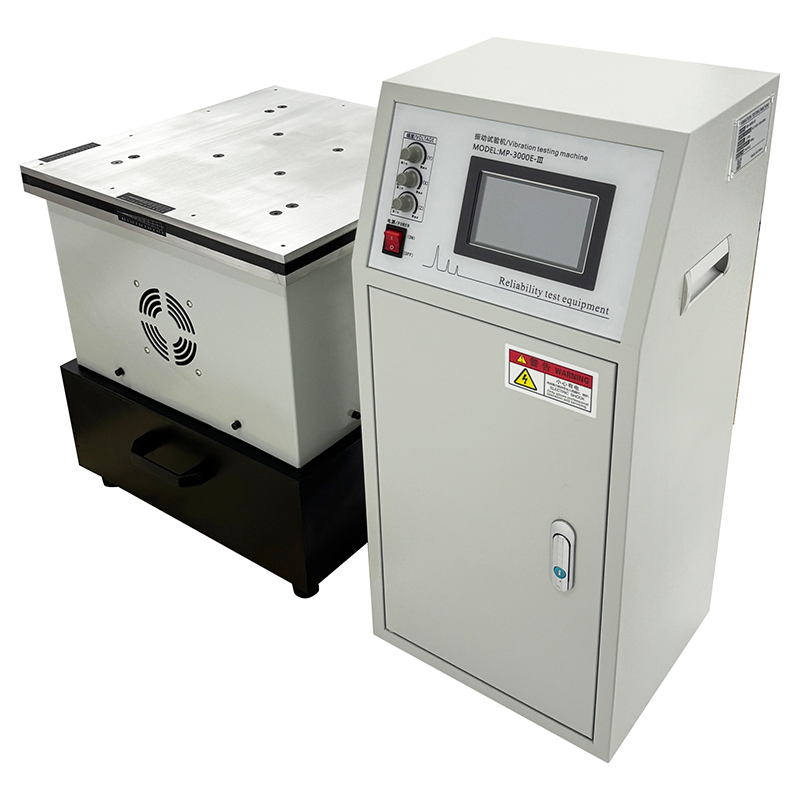

2.Product display:
3.Product features:
-----High-Efficiency Three-Axis Testing for Realistic Simulation: Capable of
conducting vibration tests along the X, Y, and Z axes simultaneously with a
single setup. This eliminates the need for repeated re-fixturing, significantly
boosts testing efficiency, and more accurately simulates the multi-directional,
complex vibrational environments encountered during transport or use.
-----Split-Type Design for Stable Performance & Flexible Layout: The separate
table and controller cabinet design effectively isolates the electronics from
vibration interference, ensuring long-term operational stability and longevity
of the control system. It also offers greater flexibility for laboratory space
planning.
-----Multiple Test Modes for Diverse Requirements: Supports various vibration
modes including fixed frequency and sine sweep, with the capability to program
up to 20 test steps. It effortlessly handles everything from simple durability
tests to complex multi-stage profile simulations.
-----Precise Control & Safe Operation Ensure Test Reliability: Equipped with
high-precision sensors and an intuitive touchscreen interface for accurate
control over vibration parameters (frequency, amplitude, time). Comprehensive
safety features including overload protection, and safety interlocks provide
dual assurance for both the test process and the operator.
-----User-Friendly Design Enhances Operational Convenience: Featuring an
intuitive touchscreen control, straightforward parameter setup, and multiple
operation modes (Timed/Manual), the system significantly reduces the learning
curve, enabling users to get started quickly and perform tests efficiently.

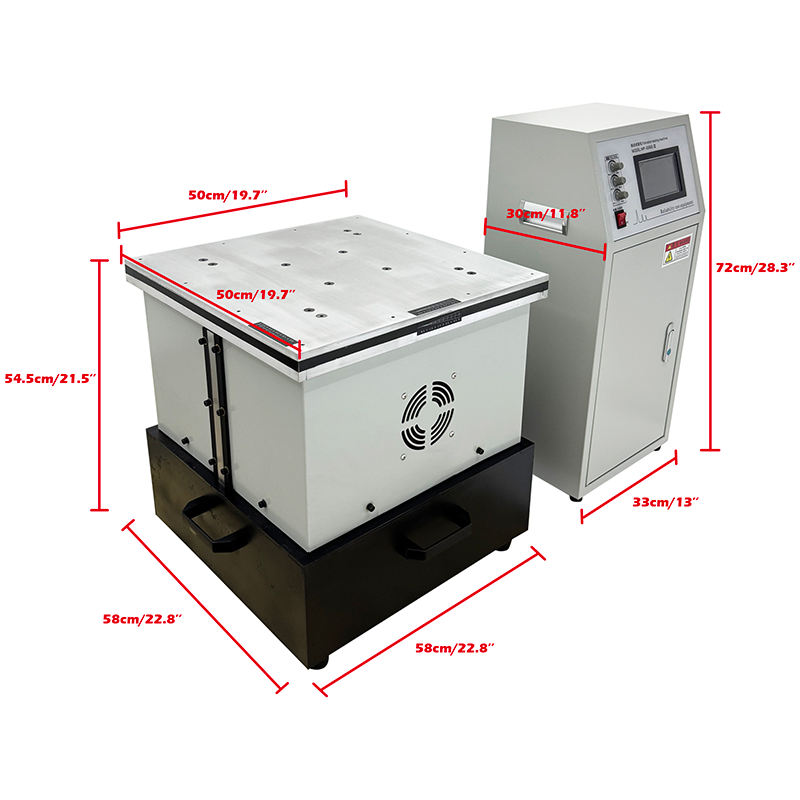

4.Product dimensions:
