MP-3000E Professional Vertical Vibration Test Bench
Product Overview
MP-3000E intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries.
The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration.
1.Product parameter:
Voltage:
110V/60Hz
Power: 1.2KW
Rated test load weight: 66lbs(30kg)
Vibration frequency range: 1~200hz
(Fixed frequency or sweep frequency can be set arbitrarily)
No load vibration amplitude: P～P/3mm
Vibration direction: Vertical/(Y)
Service environment: 0-40℃ RH＜80%
Working table size: 15.5"*14.2"(39.5CM*36CM)
Product size: 18.7"*15.7"*11.2"(47.5CM*40CM*28.5CM)
Package size: 20"*19"*14.6"(50CM*48CM*37CM)
Net weight/Gross weight: 77lbs(35kg)/86lbs(39kg)

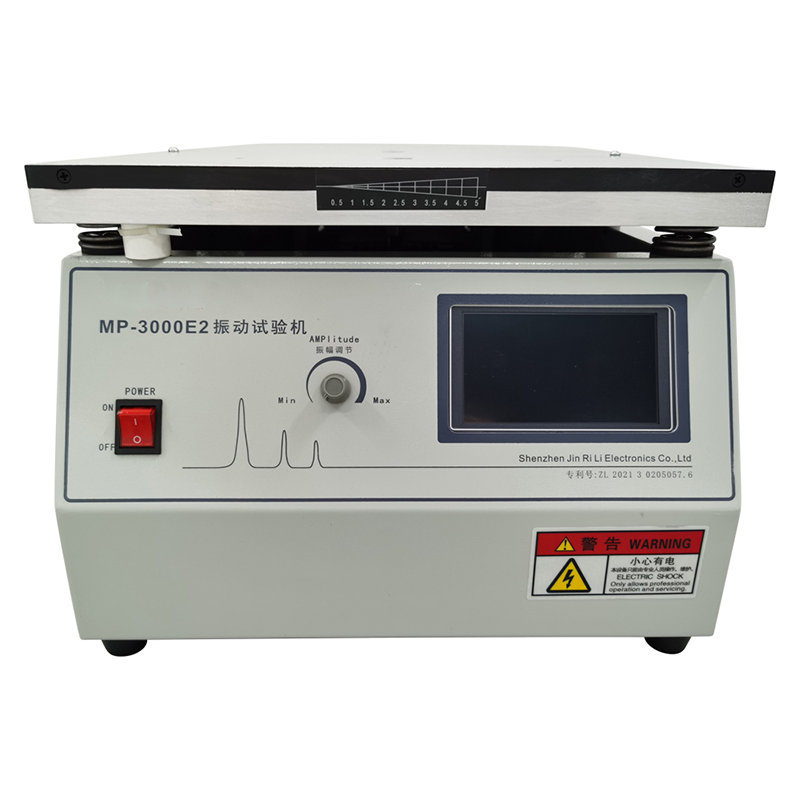

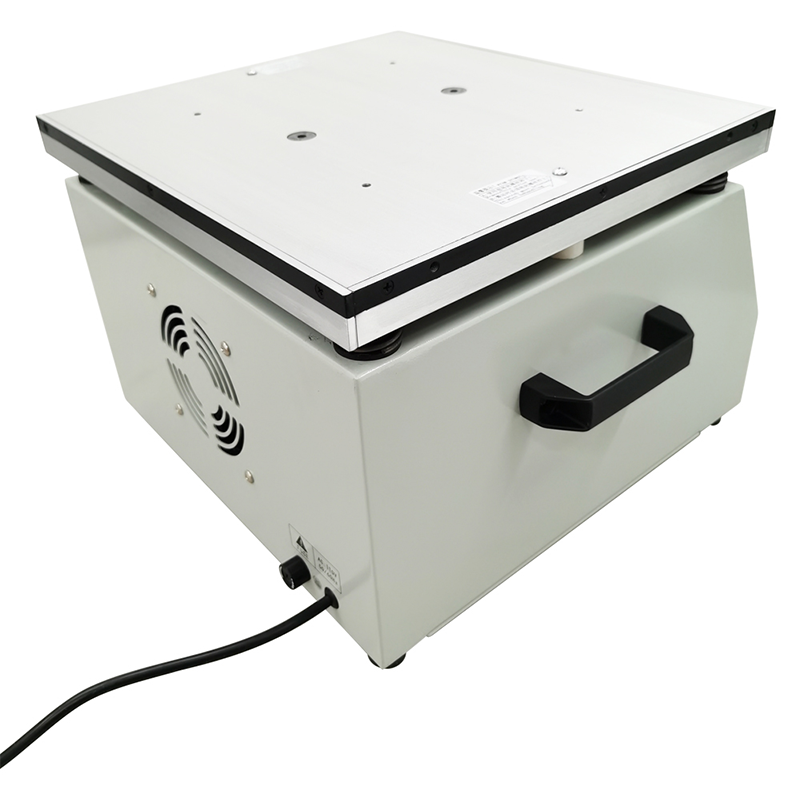

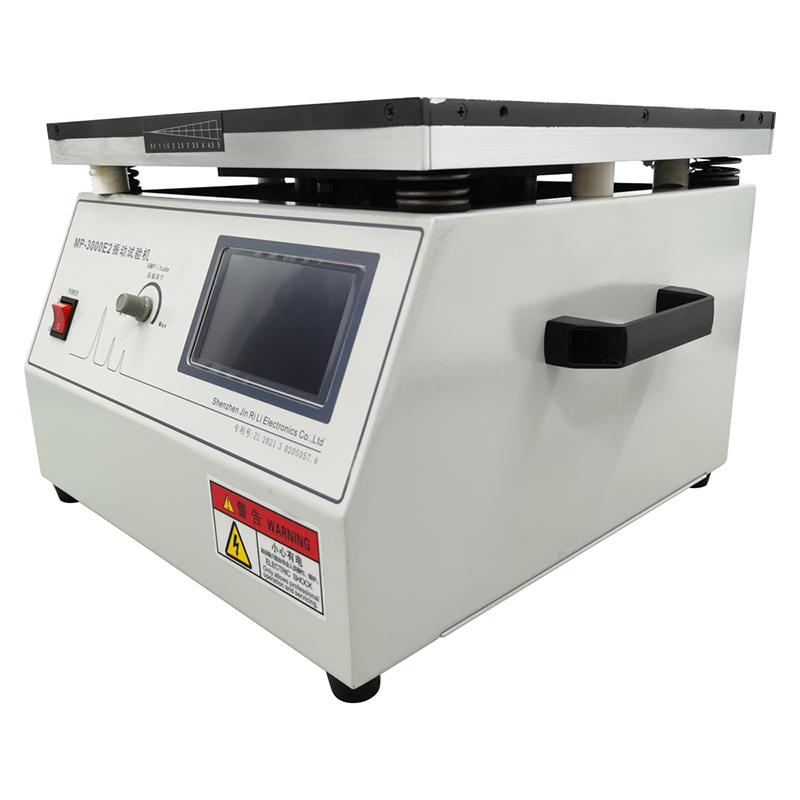

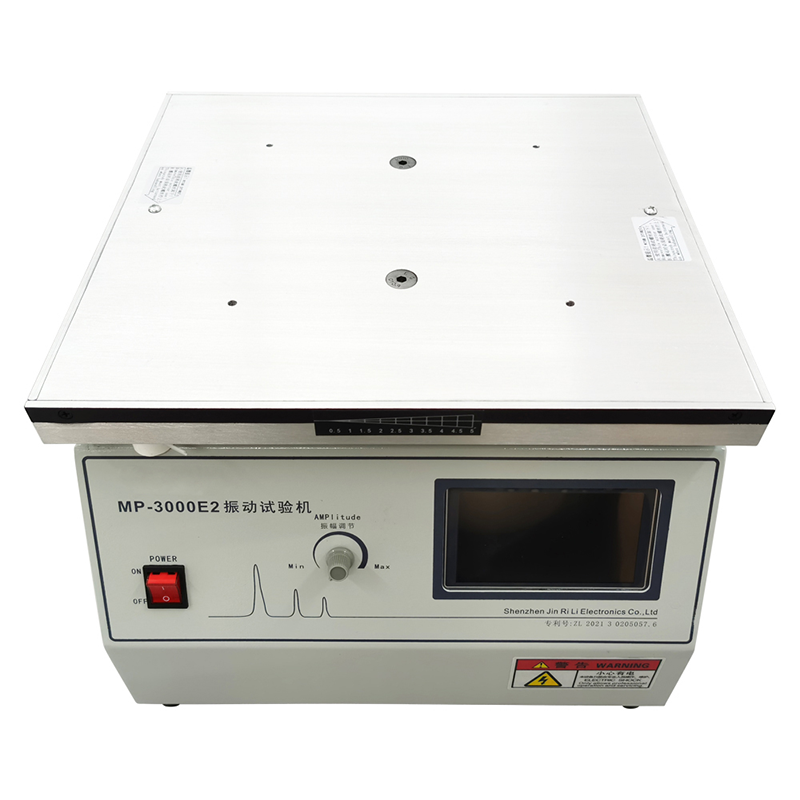

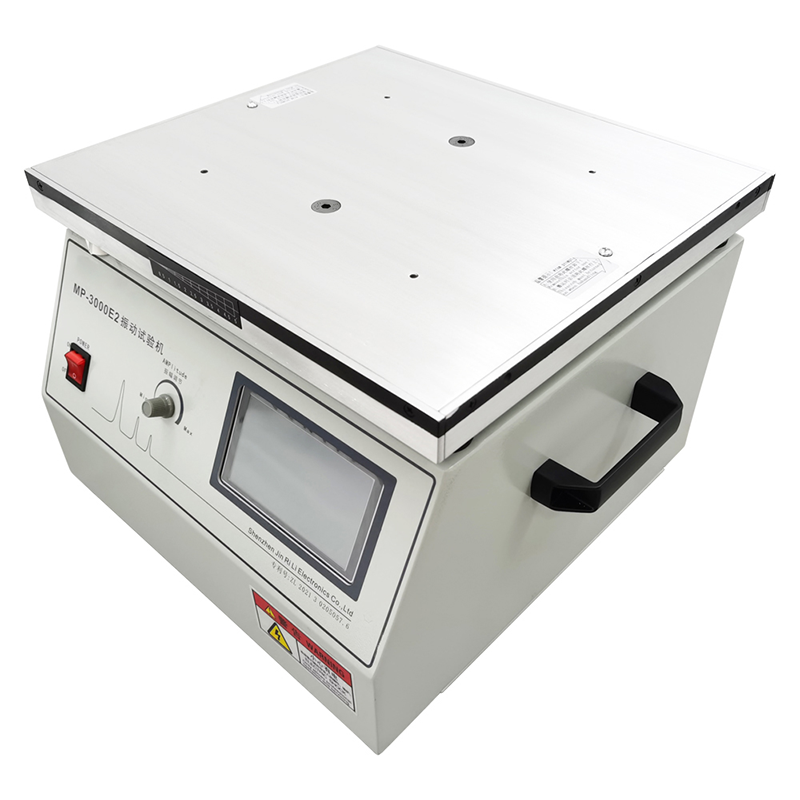

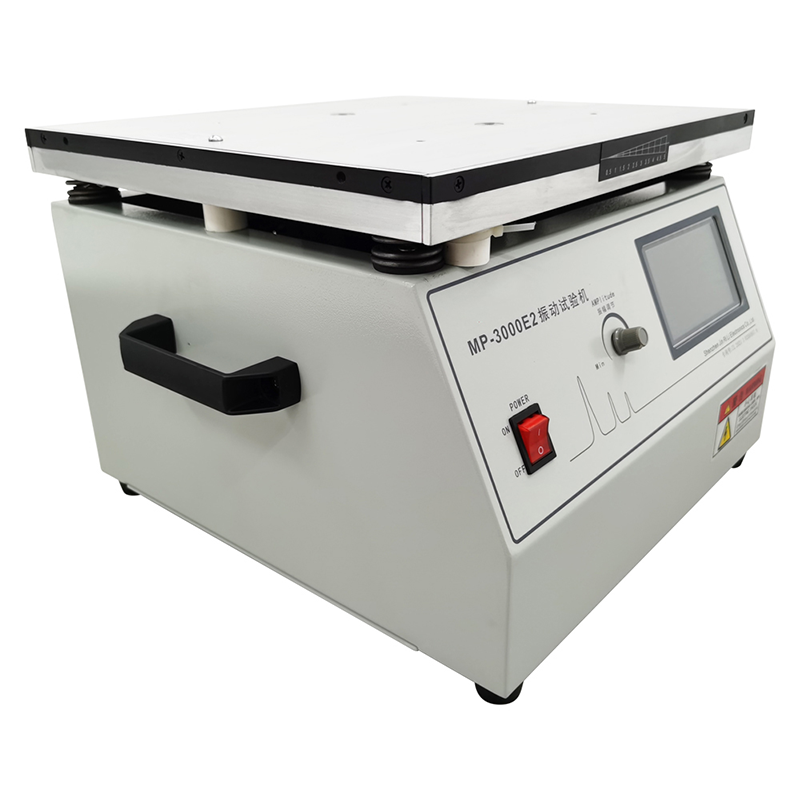

2.Product display:
3.Product features:
-----Intelligent control:
Built-in overload protection fuse, and equipped with high-performance chip, read
data more accurately. The microcomputer protection circuit is adopted to
overcome the defect that the ordinary machine is burned by the impulse voltage
when starting up, and the use is more convenient and reliable.
-----Power off automatic memory:
Automatic setting, simple operation, the use of advanced microcomputer control
circuit, you can permanently memory set parameters, power will not lose data; At
the same time, the number of vibration program segments and the number of
program cycles can be set. When the machine completes the vibration test stop or
the machine is shut down and powered off, the machine will automatically
remember the current vibration data and automatically reset.
-----Thermal design:
The body has a heat dissipation window, timely heat dissipation, discharge the
excess heat inside the machine, to ensure the long-term stable operation of the
machine.
-----Adjustable amplitude:
Through the amplitude adjustment knob, the amplitude can be adjusted at any time
according to the demand, simple and convenient operation.
-----Non-slip and waterproof:
Rubber support pad at the bottom, anti-slip and wear-resistant, play a good
cushioning role; At the same time, the bottom of the machine can be isolated
from the desktop to prevent the machine from water.
-----Handle design:
There are handles on both sides to facilitate the handling and moving of the
machine, and the machine can be moved to the place where it needs to work at any
time, saving worry and effort and making it safer.

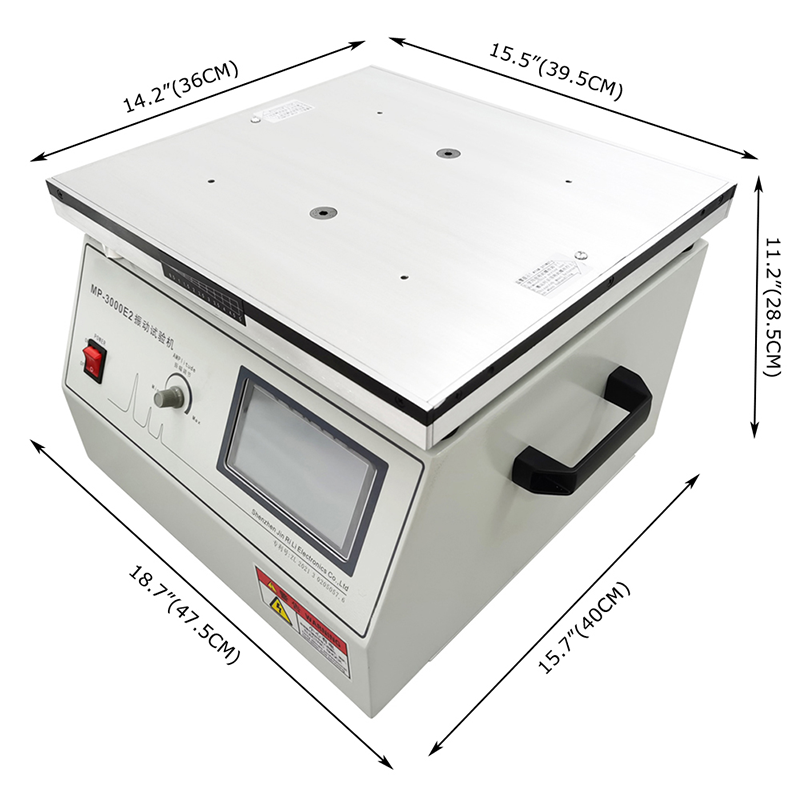

4.Product dimensions:
