Martindale Abrasion Testing Machine-4 Sample Holders
The Martindale Abrasion Tester is an ideal and advanced instrument to be used for determination of the abrasion resistance of textile fabrics. Fabrics of all types may be tested by this unit, including woven, non-woven, and knit apparel fabrics, household fabrics, industrial fabrics, and floor coverings, with fabric pile depth of less than 2mm.
This machine have four sample clamp, can testing four sample at the same time. Via motor drive land out in motion friction device under certain load doing reciprocating friction testing determine the effect of the abrasion. To judge the level of sample and provide reference data for material selection.
The product can be used for fabric wear test, fabric pilling test, a wider range of application.
1.Product parameter:
Voltage: AC110V
Number of sample holder: 4
Frequency setting: Color touch screen, 0 ~ 999999 times
External axis: 47.5±2.5r/min
Internal axis: 44.5±2.4r/min
Pressurized material quality:
A. Pilling sample sleeve: 155g
B. Stainless steel disc: 260g
Effective friction diameter of grinding head:
A. Wear resistance test: 595±7g/795±7g
B. Pilling performance test: pilling-415±2g
Wear pressure:
9±0.2kp (fabric)
12±0.3kp (decorative fabric)
Package size: 36"*27.5"*26.5" (91cm*70cm*67cm)
Net weight/Gross weight: (65kg) / 220LB(100kg)
Standards:
EN ISO 12945-2/12947-1/12947-2/12947-3/12947-4, ISO 20344 6.12, ASTM 4966/4970,
BS EN 388/530,
BS 3424/5690, JISL1096, DIN 53863/53865, GB/T 13775, SATRA TM31, IS 12673, IWSTM
112/196,
IWTO 40-88, SFS 4328, NEXT 16,GMW15651, ISO 5470-2, M&S 17 / 19 / 19C, Next
18/18a/18b,
GB/T4802.2/21196-1/21196-2, Wool Mark TM 112/196.

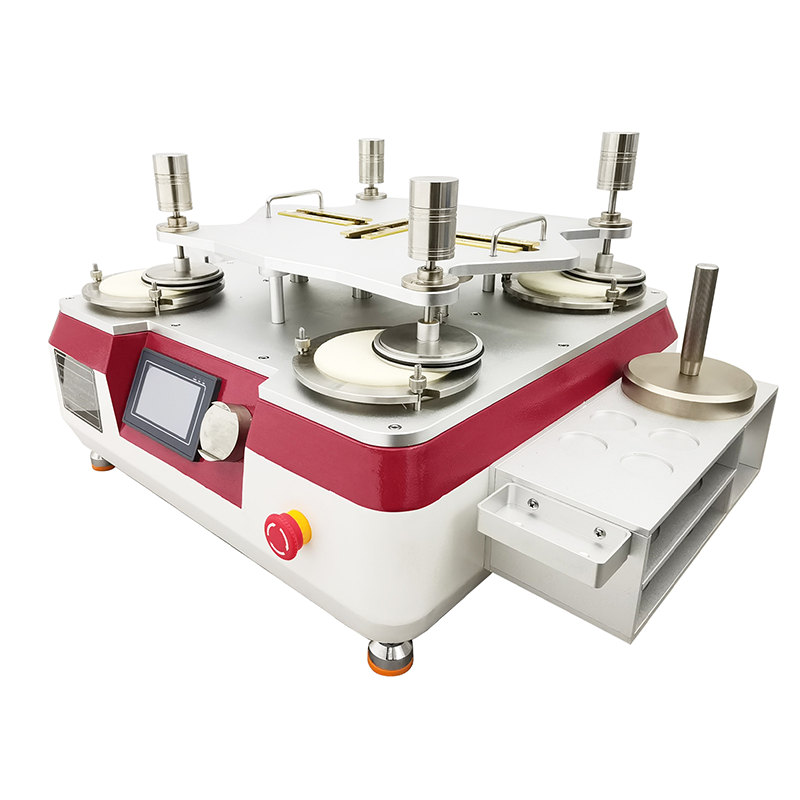

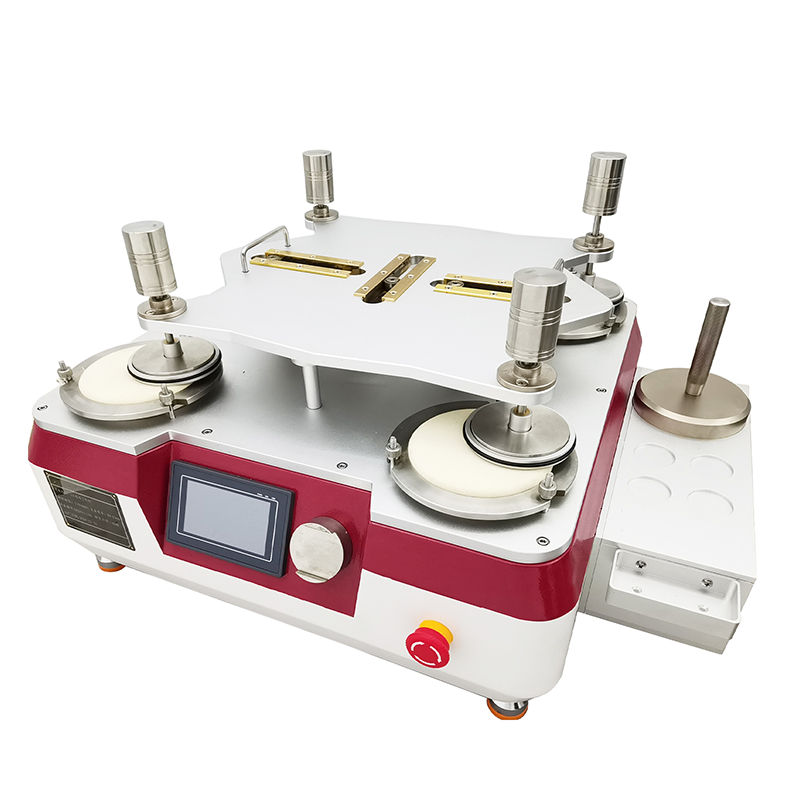

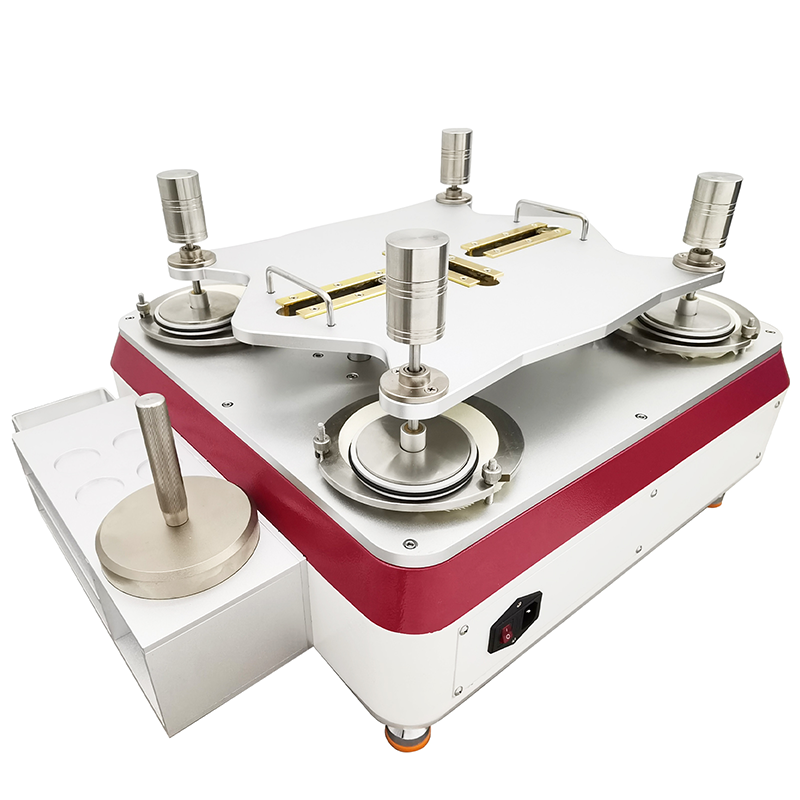

2.Product display:
3.Product features:

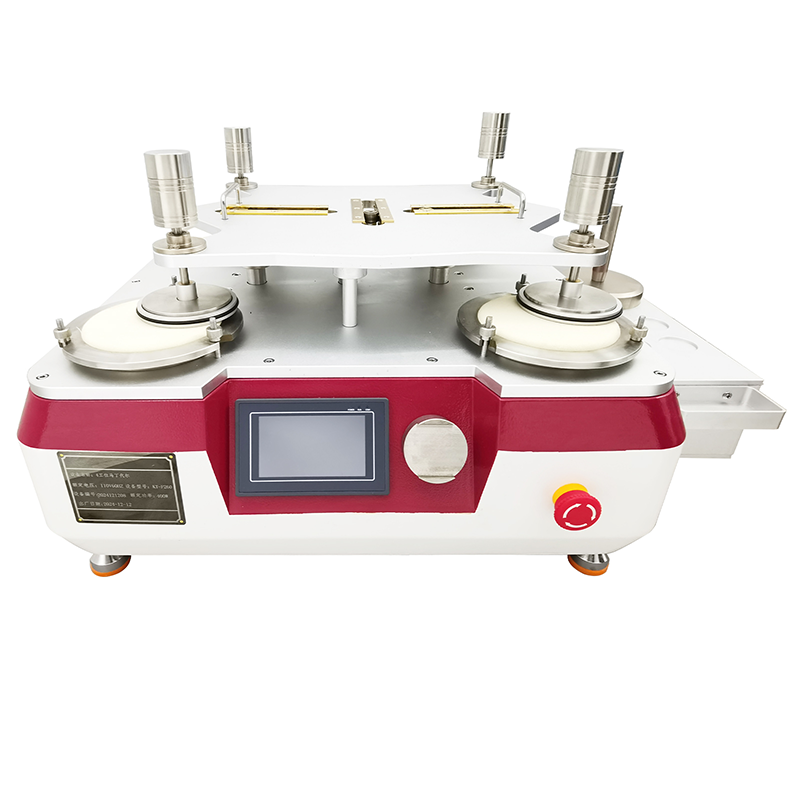

-----LCD Touch Screen
The LCD intelligent touch screen is used for operation, and the display is more
intuitive and specific; Tap the screen to adjust, easy to operate, easy to use
-----4 Sample Holders
There are four sample holders, which can be detected at the same time, saving
time and operation, and improving detection efficiency.
-----Wide Test Range
The wear testing machine can test the wear resistance of the fabric, the pilling
of the fabric, and the application range is wider.
-----Material
Using high quality material, the body adopts special technology, anti-corrosion
and anti-rust, long service life; The machine design is scientific and
reasonable, in line with many standards.

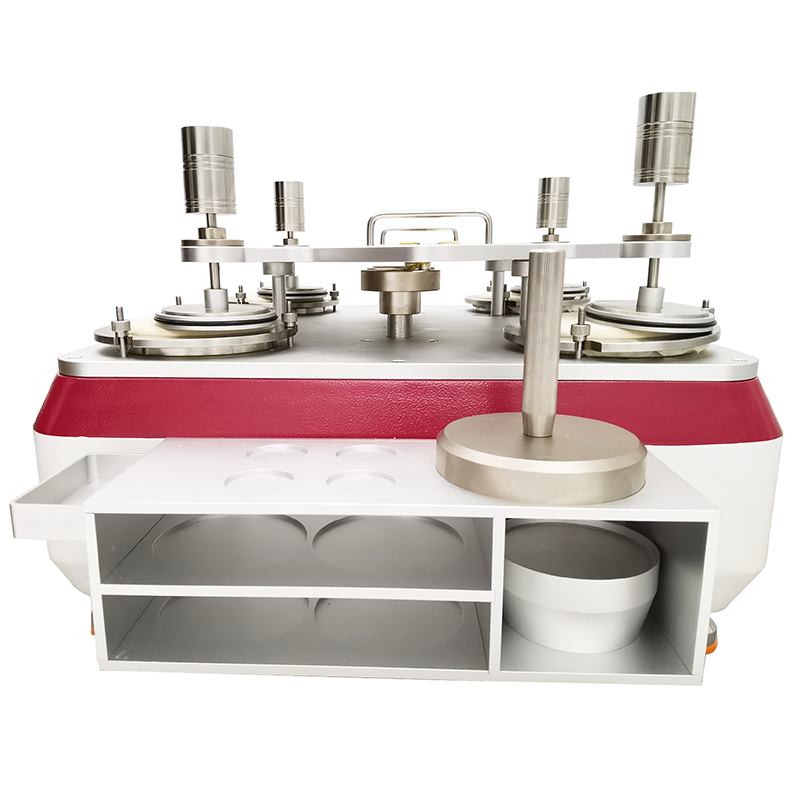

-----Storage
The right side of the machine has a storage space, which can be used to store
the friction test head and pilling test clamp and other accessories to prevent
loss.
-----Hanging Groove
The left side of the machine is designed with a hanging groove, which is easy to
hang the butterfly plate in the left hanging slot when the butterfly plate is
removed, and the support is stable and firm, which is convenient to access the
butterfly plate at any time.
-----Emergency Stop Switch
The machine is designed with an emergency stop switch, which can quickly cut off
the power in an emergency to protect the safety of personnel and equipment.
-----Foot Pads
There are four non-slip foot pads at the bottom of the machine, which can keep
the machine fixed and stable and prevent sliding.

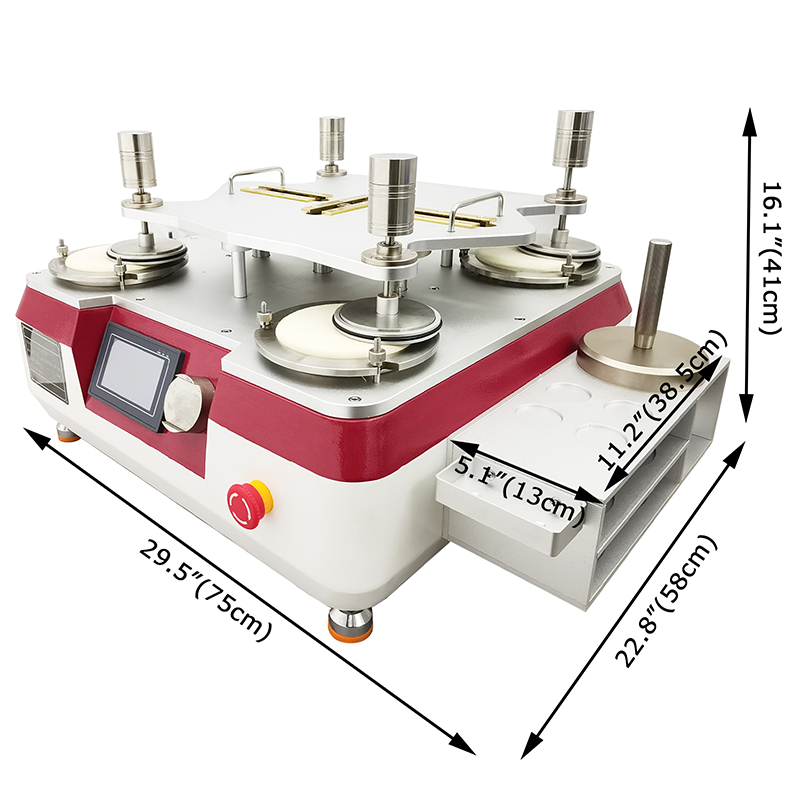

4.Product dimensions:
