Martindale Abrasion Testing Machine
1. Martindale abrasion tester applies to: test appearance change(pilling degree/class) of the textiles.
Standards: GB/T4802.2, ASTM D4970, ISO12945-2 ect.
Theory: at a given pressure, circular fabric specimen and the same material, carrying out friction Lissajous trajectory graph, after achieved the required rotation, evaluate the pilling degree of the specimen.
2. Tester also applies to: test the performance of fabric wearing resistance.
Standards: GB/T13775, ASTM D4966, ISO12947 etc.
Theory: circular fabric sample at a certain pressure, rubbing with the standard abrasive according to Lisa if (Lissajous) curve’s trajectory, leading to specimen damaged, use the times of specimen damaged to represent fabric abrasion wear resistance.
1.Product parameter:
Number of working position: 4
Counter range: 0~999999
Max stroke: 60.5±0.5mm, 24±0.5mm
Pressure weight:
a. specimen holder: 200 ± 1g
b. load piece for apparel & household textiles:395 ± 2g
c. load piece for workwear & upholster: 594 ± 2g
d. stainless steel plate: 260 ± 1g
Abrader speed: 50-2r/min
Pressing weight: 2385 ± 10g
Instrument size: 885×600×410mm（34.8*23.6*16.1inches）
Power supply: AC110V/60Hz
Net weight: 135.7LBS

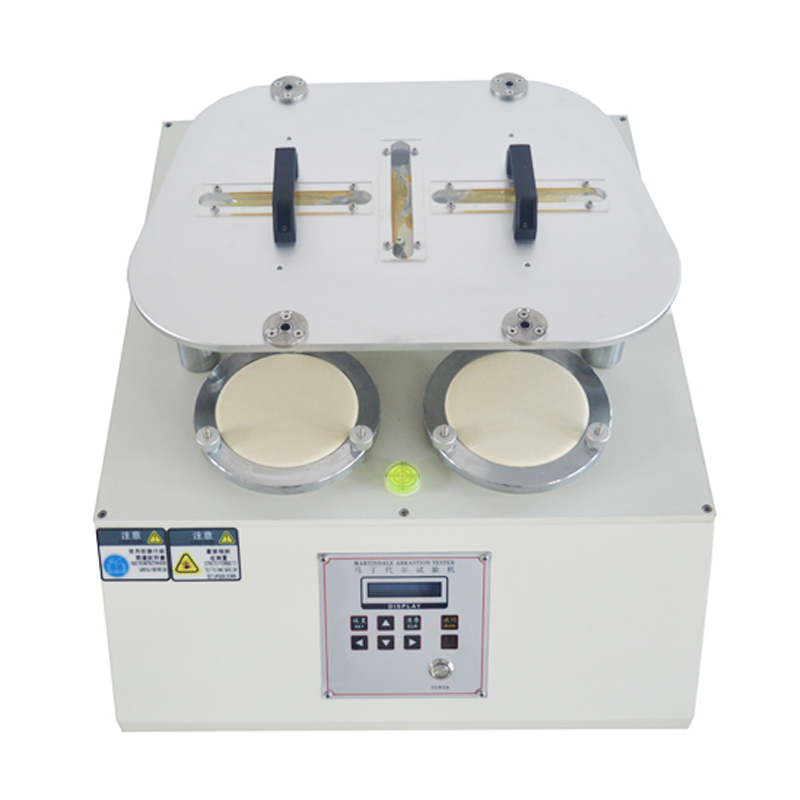

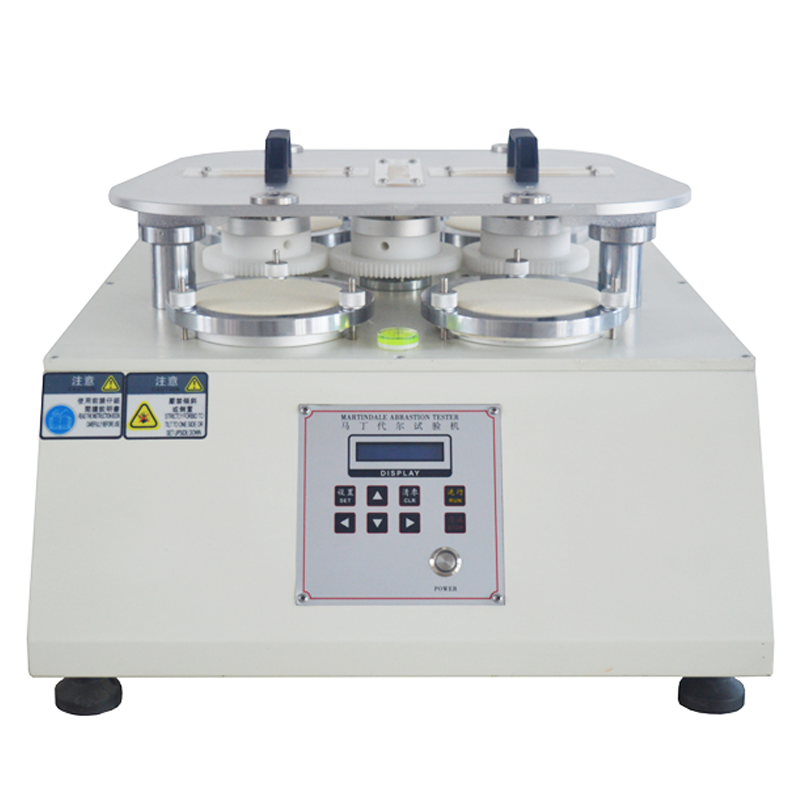

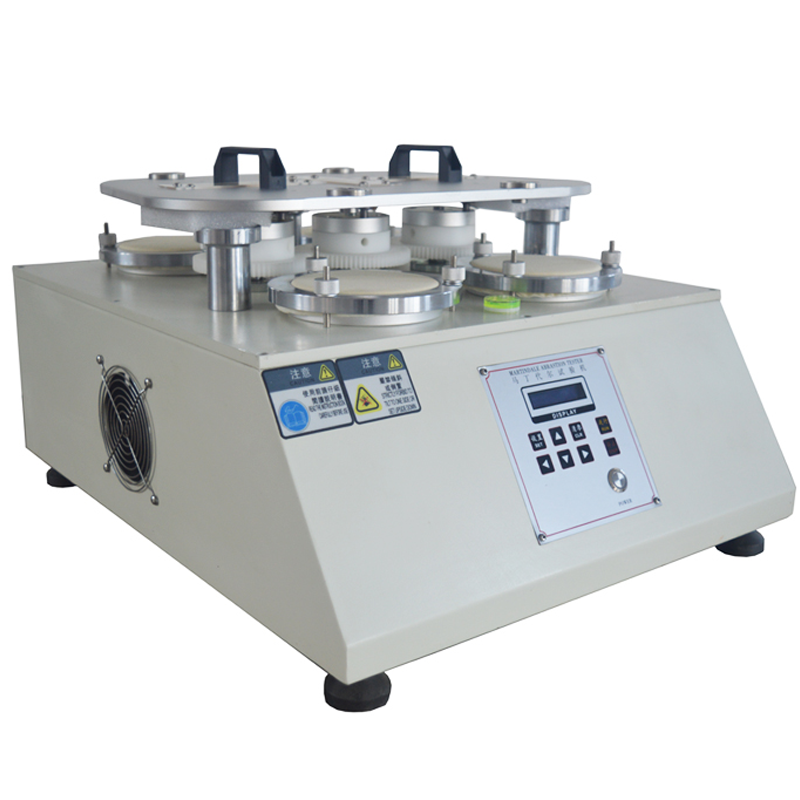

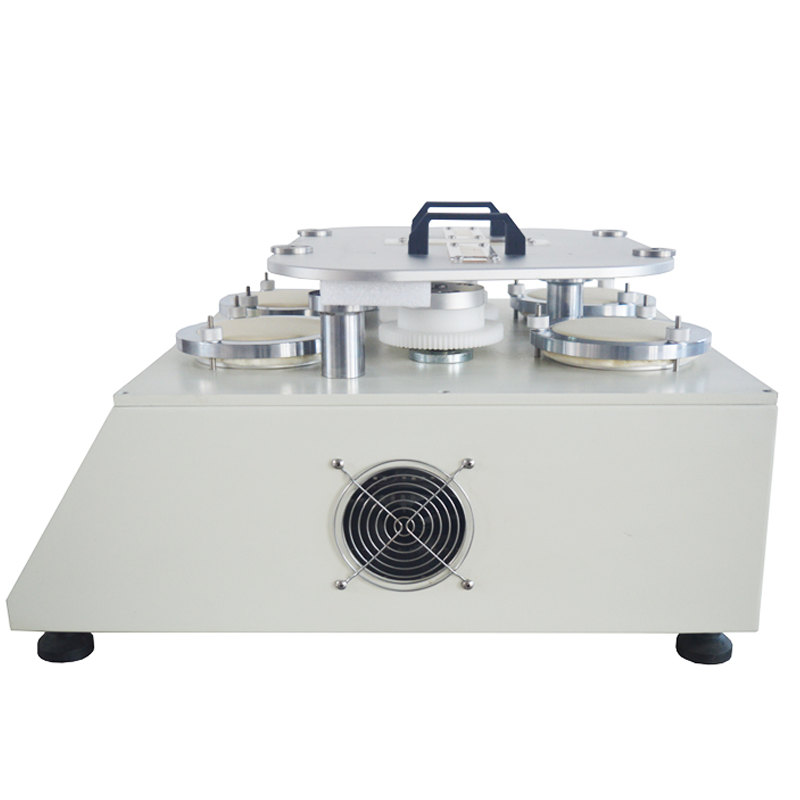

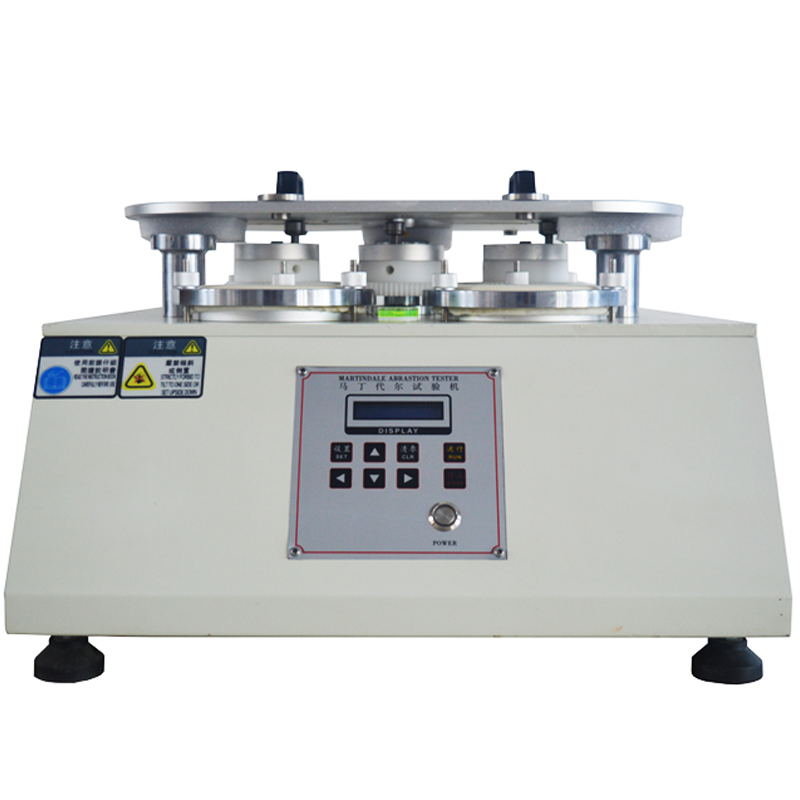

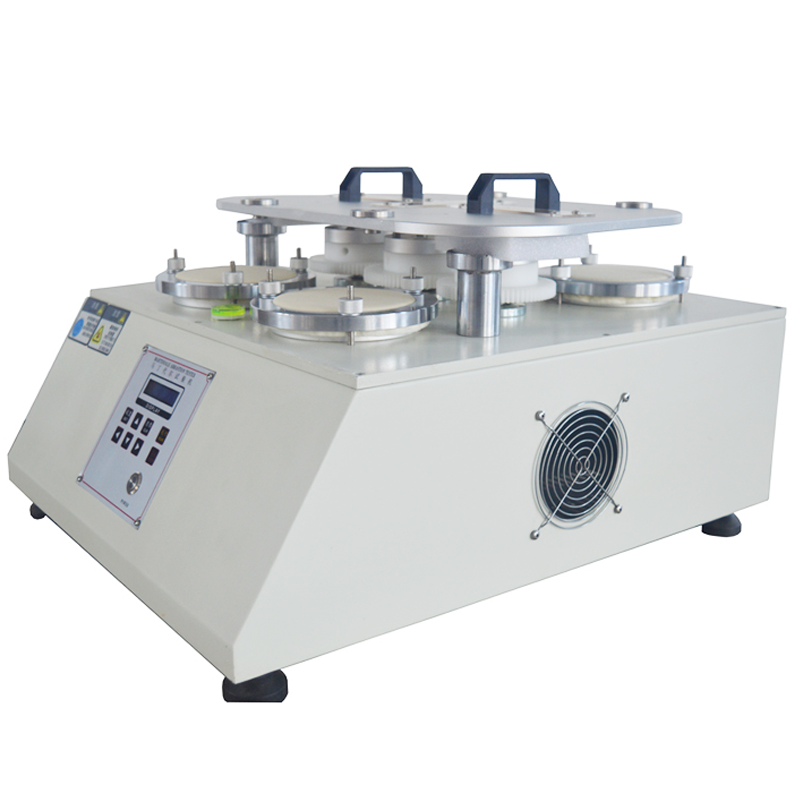

2.Product display:
3.Product features:
-----Scientific and reasonable design and high test accuracy.
-----Two counting methods, easy to use, intuitive and concise.

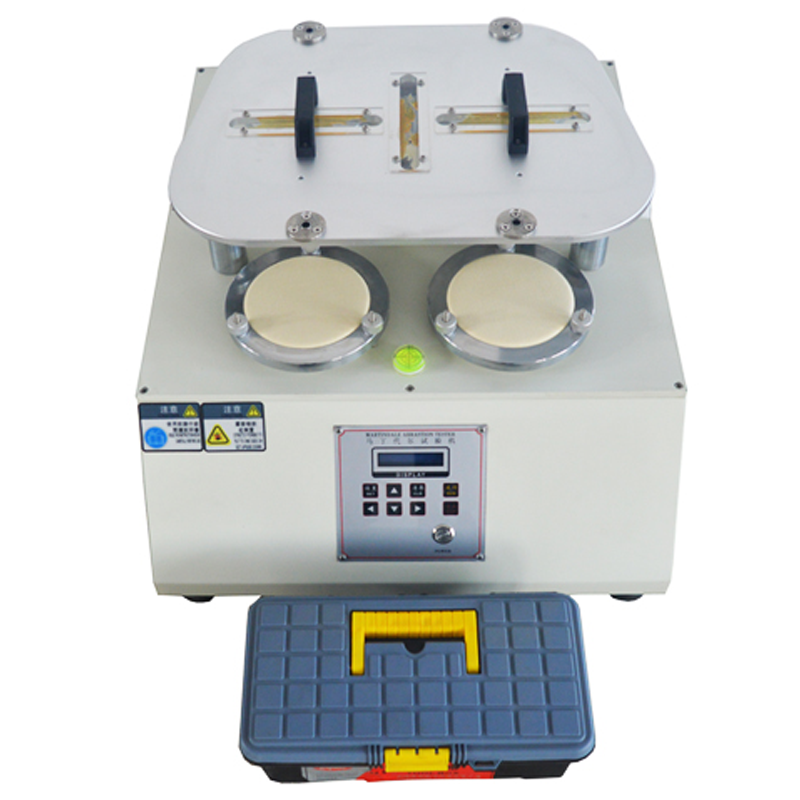

-----A variety of accessories can be purchased, which can adapt to a variety of
test methods and standards.
-----The equipment is made of high-quality materials and has a long life.
-----With non-slip pad, the machine works more stably. The machine body adopts
special technology to resist dirt and corrosion.
4.Product dimensions:
5.Scope
of Application:
-----Martindale abrasion tester applies to: test appearance change(pilling
degree/class) of the textiles.
Standards: GB/T4802.2, ASTM D4970, ISO12945-2 ect.
Theory: at a given pressure, circular fabric specimen and the same material,
carrying out friction Lissajous trajectory graph, after achieved the required
rotation, evaluate the pilling degree of the specimen.
-----Tester also applies to: test the performance of fabric wearing resistance.
Standards: GB/T13775, ASTM D4966, ISO12947 etc.
Theory: circular fabric sample at a certain pressure, rubbing with the standard
abrasive according to Lisa if (Lissajous) curve’s trajectory, leading to
specimen damaged, use the times of specimen damaged to represent fabric abrasion
wear resistance.
-----Application: Used for testing the performance of the wearing resistance,
abrasion, appearance change (pilling degree/class) of the textiles and membrane
materials.
