Insulation oil dielectric strength tester
Insulation oils are widely used in high voltage electrical equipment such as transformers, oil circuit breakers, oil-filled cables, power capacitors and oil bushings. The dielectric strength tester can ensure that the insulation oil in these equipments has good performance, so as to ensure the normal operation of the equipments. This machine is easy to operate and has a beautiful appearance. Because it adopts full-automatic digital microcomputer control, it has high measuring precision, strong anti-interference ability, safety and reliability.
1.Product
parameter:
Voltage:
AC110V
Power consumption: <200W
Booster capacity: 1.5 kVA
Boost speed: 0.5 kV/s, 1.0 kV/s, 2.0 kV/s, 3.0 kV/s, 5.0 kV/s
Output voltage: 0~80 kV
Power supply distortion rate: <1%
Display mode: Large-screen LCD display
Electrode clearance standard: 0.1"(2.5mm)
Ambient temperature: 0~40℃
Relative humidity: ≤85%
Package size: 21.3"*19.3"*19.7" (54cm*49cm*50cm)
Net weight/Gross weight: 70.3lbs(31.9kg)/86.9lbs(39.4kg)

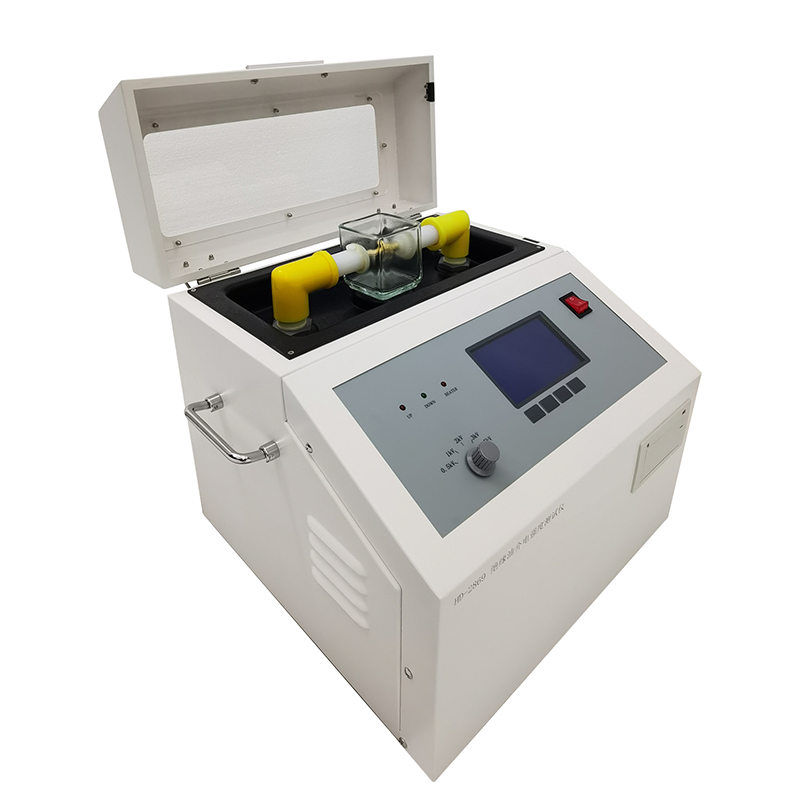

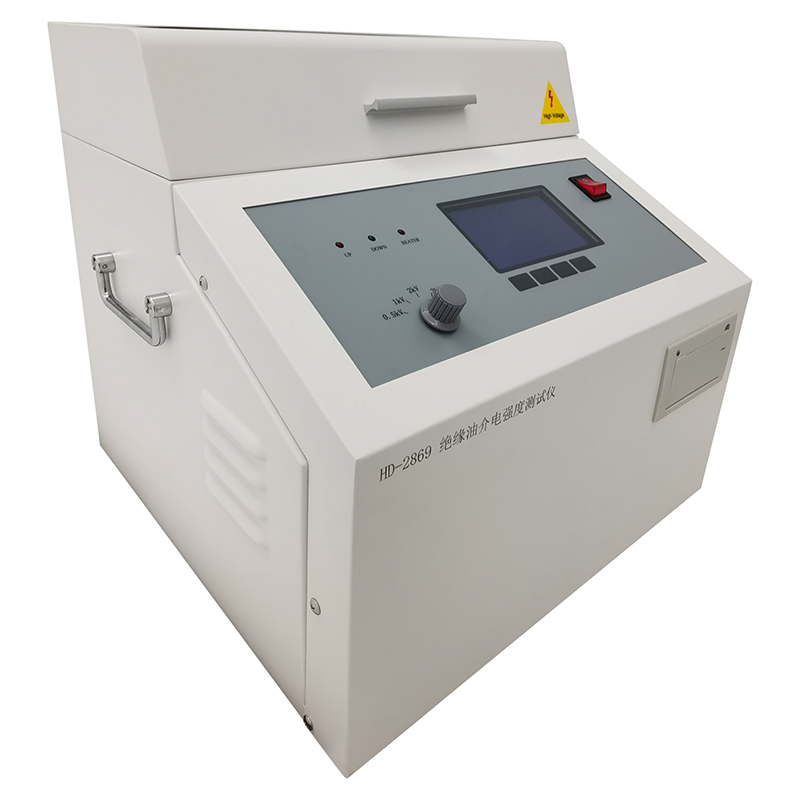

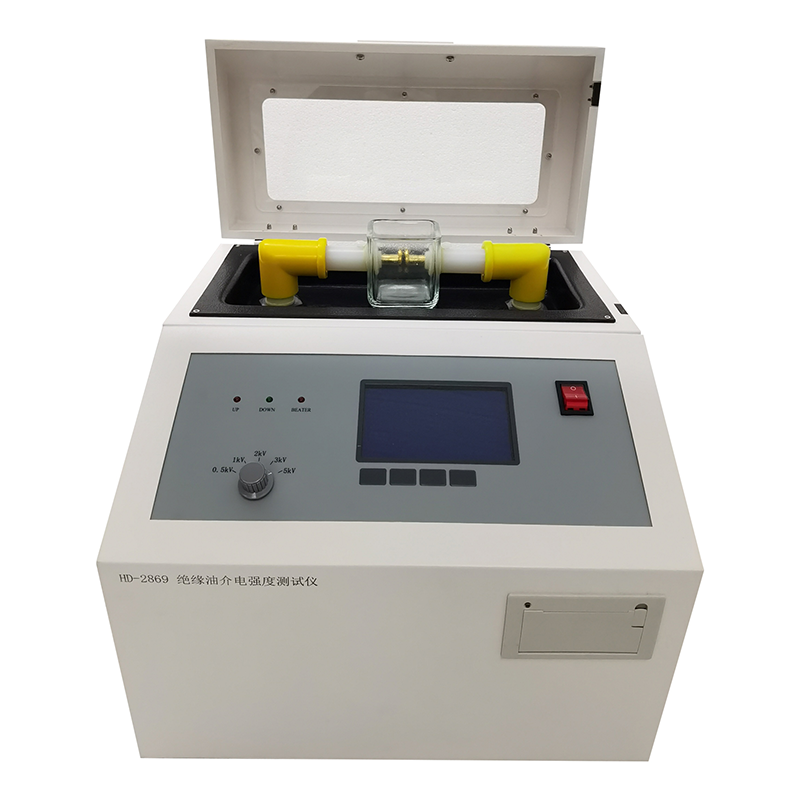

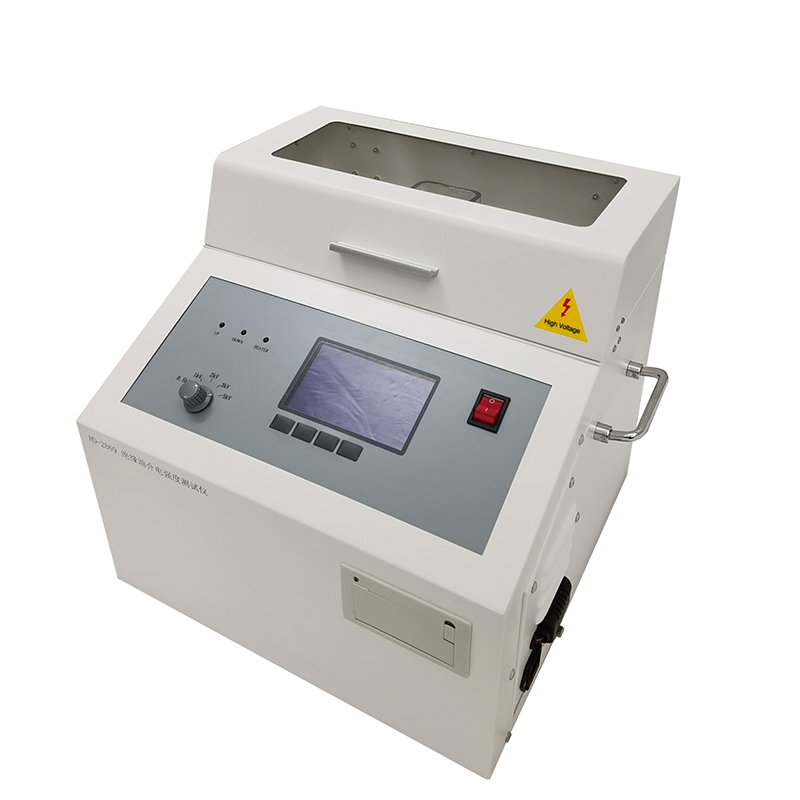

2.Product display:
3.Product features:
-----Automatic Operation
The design of the oil cup realizes fully automatic operation, including
automatic stirring, automatic resting, automatic voltage raising and automatic
voltage lowering. Users only need to set up, press the test button to complete
all the work, the test will be completed with sound prompts.

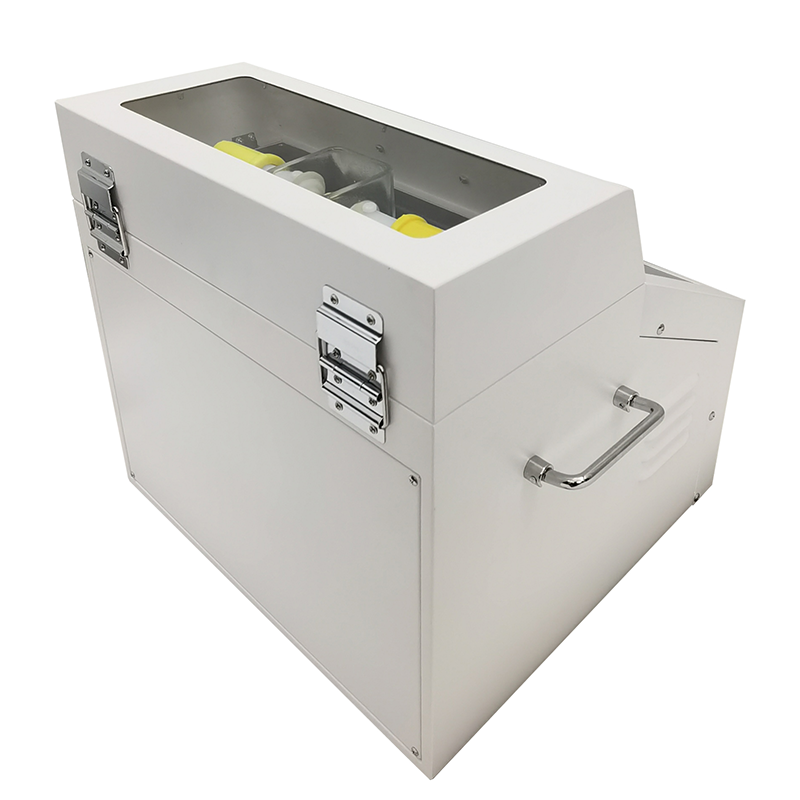

-----Portable Handle
The left and right sides of the machine are designed with portable handles,
comfortable grip, easy for two person to move the machine.
-----Vent Hole
The machine is designed with vent holes, which can timely discharge the excess
heat generated in the process of work, prevent overheating and protect the
machine.
-----Printer
After the test is completed, the printer can automatically print out the test
results, including single and multiple test results. This design simplifies the
operation process and improves the work efficiency.
-----LCD Screen
The tester uses an LCD display with smart control and digital operation. An
integrated control panel with comfortable keys is very easy to operate.
-----Temperature & Humidity Sensor
The temperature and humidity sensor measures the Celsius temperature and
relative humidity, and converts it into a digital signal for display, with high
measurement accuracy and stability.

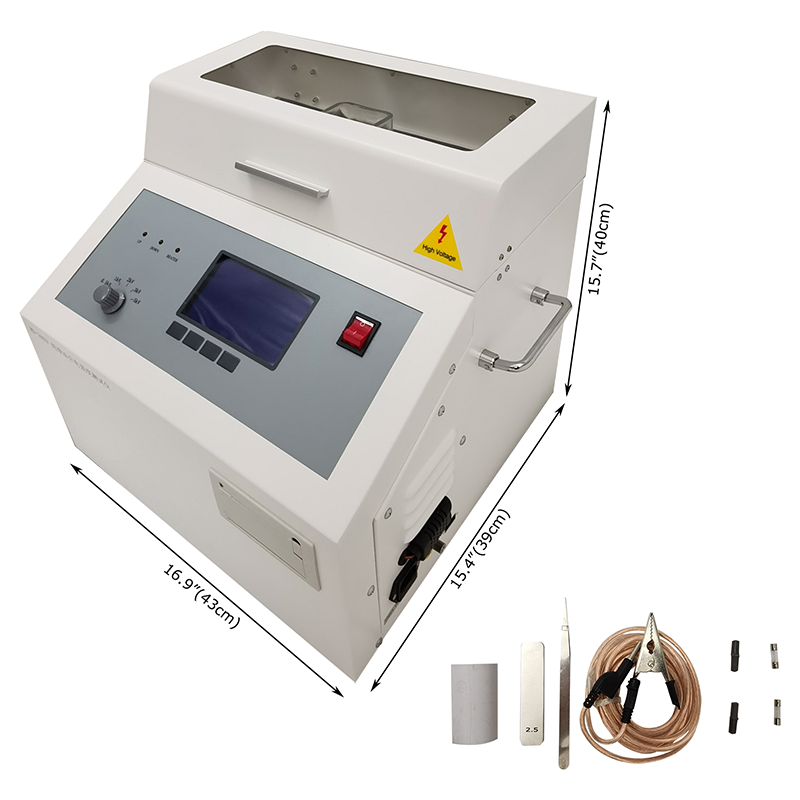

4.Product dimensions:
