Withstand Hi-Pot 5KV 100VA Tester
RK267 series voltage withstand test instruments are for general- purpose HV test operation. It can be widely used for voltage withstand test in electrician’s assistant instrument,rubber-wooden facility,voltage convertor,wires , power meter, motor, power supply plug, cables and all kinds of electronic and electric products. As the launch of the national security standard, Voltage withstand instrument has become one of necessary withstand test instruments to the radio and electronic products manufacturer.
1.Product
parameter:
Model:
RK2670AM
Description: Klgital display with remote control
Test Voltage (AC): 0~5KV +/-5%
Leakage Current (AC): 0~2/20mA +/-5%
Timing (s): 0~99s; Manual control
Pmax: 100VA
Intput Voltage(Power): 220V
Weight: 40lbs

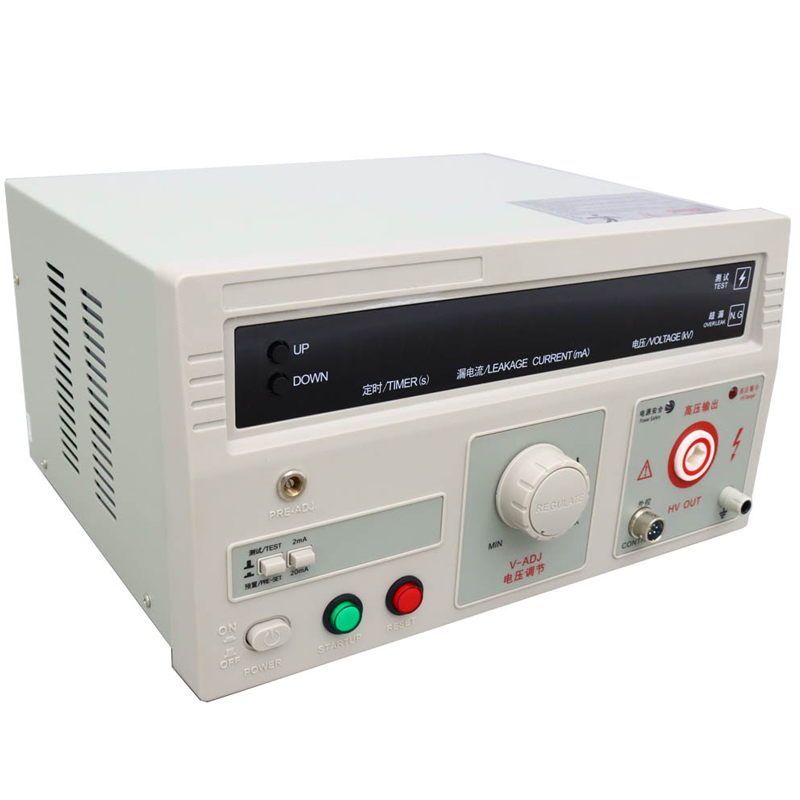

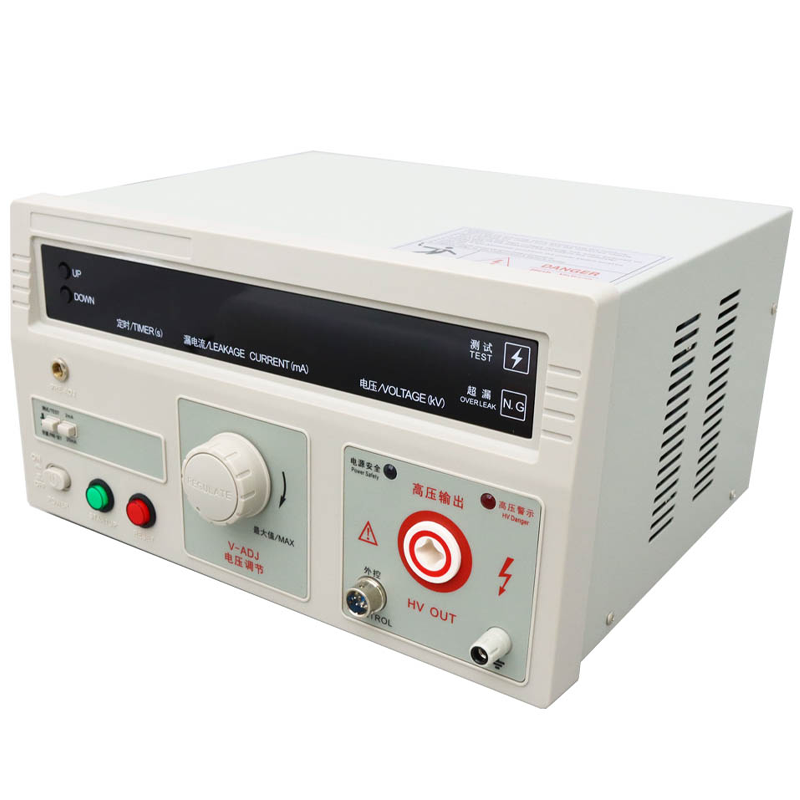

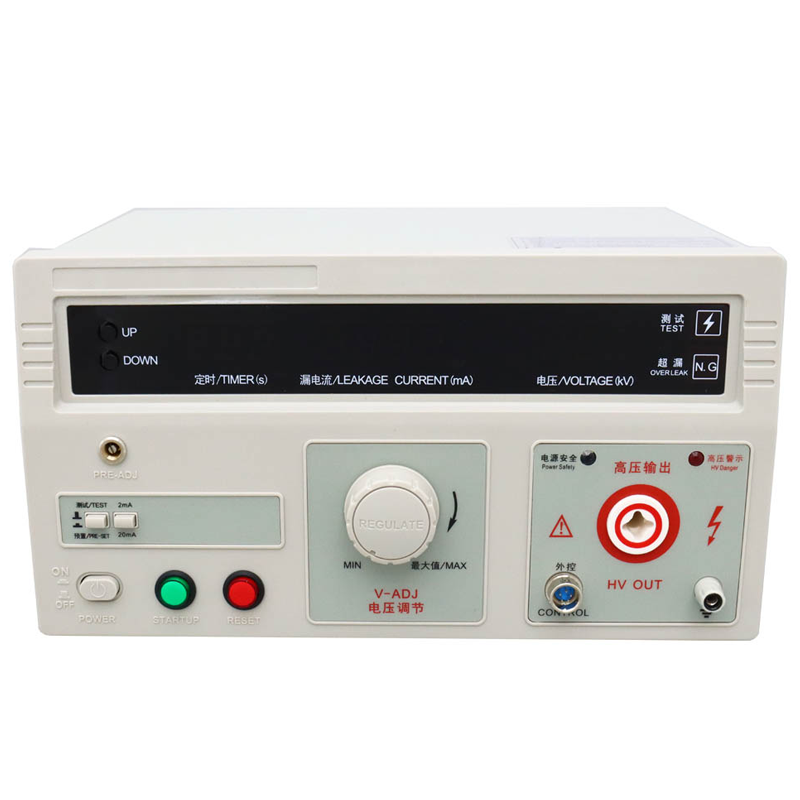

2.Product display:
3.Pre-used Caution:
-----Use
three-hole power supply plug and insure GND connection well.
-----GND port and power supply GND port should be connected well.
-----Wear insulation glove, stand on insulation mat.
-----Anti-clockwisely circumvolve “V-ADJ” rotary switch to the maximum before
turn on test instrument.
-----Before preset all functions, reset instrument.
-----Don’t connect test port and test wire when doing test.
-----Don’t connect HV output port with shield box or GND wire to avoid
instrument damage.
-----Turn off power when accident take place
-----Examine and repair when Indicator or annunciator is out of function .
-----Operate carefully to avoid hazard when take the remote test.
-----The instrument must be placed on the worktable of conductive materials
-----The operator can not wear clothes with metal decoration or wear metal
accessories
-----When the tester is in the test conditions, the test line, the test probes,
output end , and the test objects are all with high pressure, do not touch!

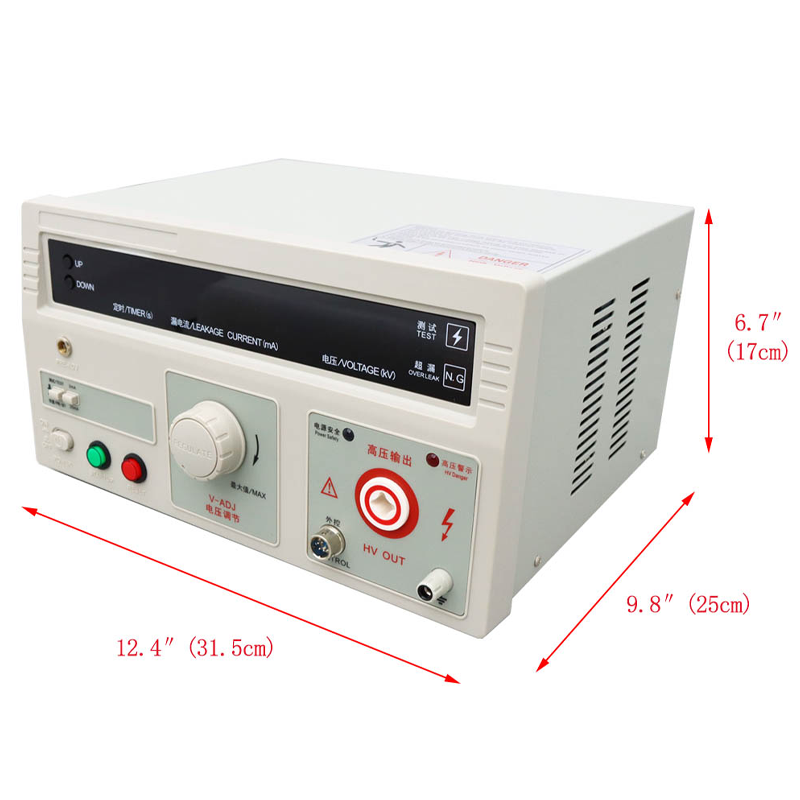

4.Product dimensions:
