Withstand Hi-Pot Tester
RK7112 series voltage withstand test instruments are for general- purpose HV test operation. It can be widely used for voltage withstand test in electrician’s assistant instrument,rubber-wooden facility,voltage convertor,wires , power meter, motor, power supply plug, cables and all kinds of electronic and electric products. As the launch of the national security standard, Voltage withstand instrument has become one of necessary withstand test instruments to the radio and electronic products manufacturer.
1.Product parameter:
Model:
RK7112
Advantage: 5 sets of data can be set. Insulating test
Input: single-phase47-63HZ,115V/230V AC±15%
Output frequency Range: 50Hz/60Hz Optional
Slow rise Range: 0.1--999.9s，0.1s/Step
Output ripple: Sine wave THD <2%(Crest Factor)>1.3<1.5
Test time Range: 0.2--999.9s，0.1s/Step 0=continuity
Input Voltage (Power): 110V
ARC Detector Range: Level 1-9 can be set

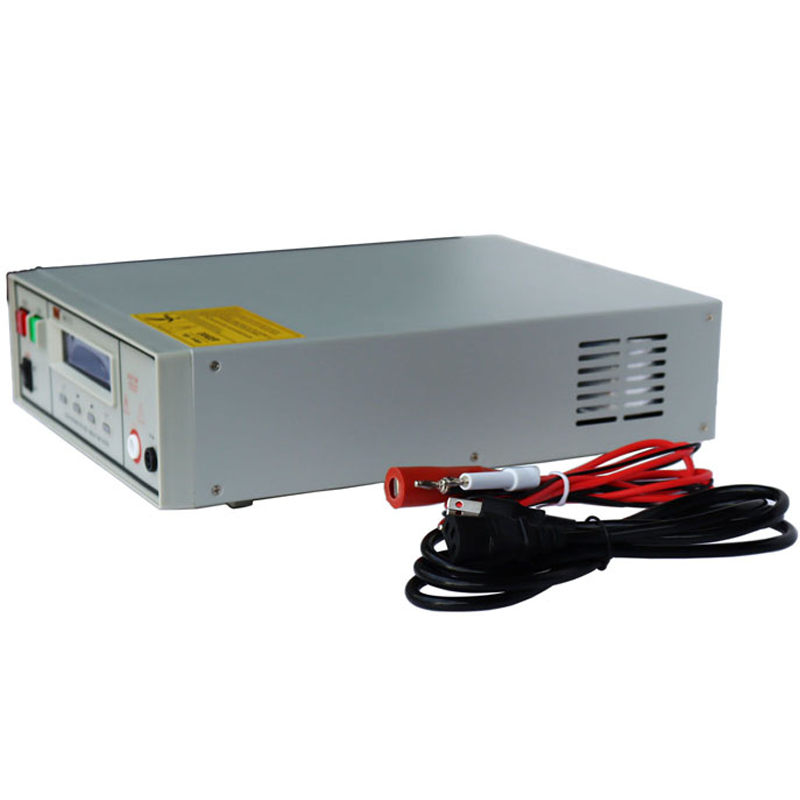

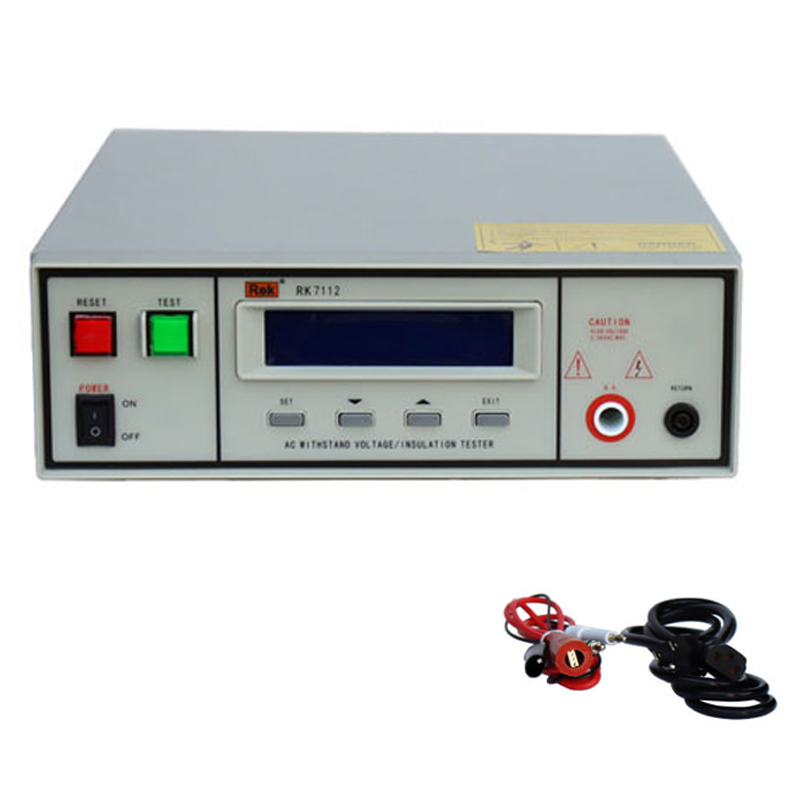

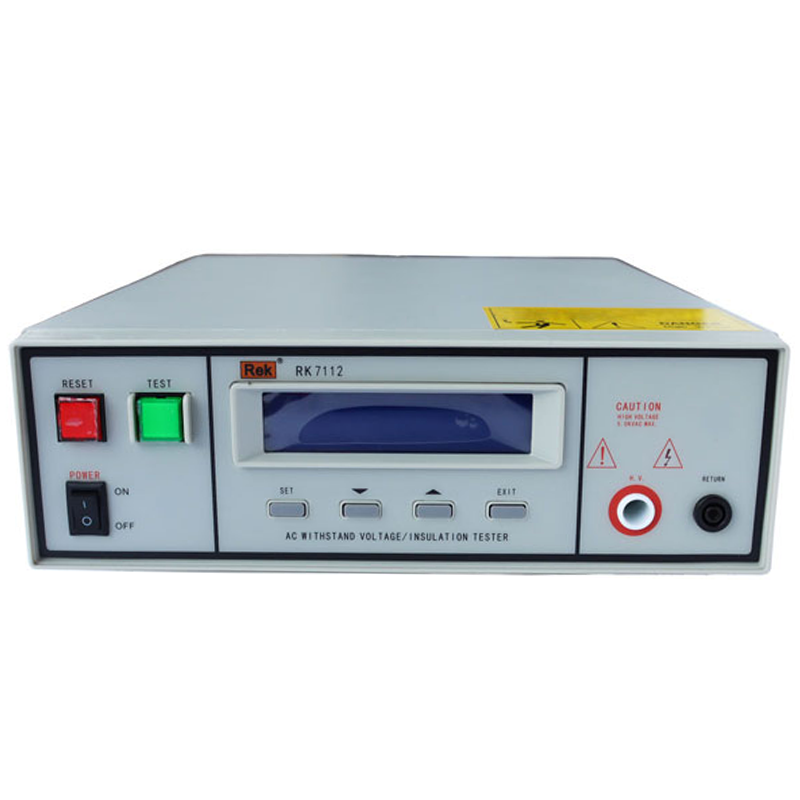

2.Product display:
3.Calibration of instrument and equipment:
The
instrument has been carefully calibrated before they go out, completely conform
to the requirements of the index of the instrument. The instrument for at least
a yearly calibration, calibration precision of the instrument must be better
than 0.5%, to ensure that the instrument can continue after calibration is
precision of the instrument should be.
Voltmeter: Measuring range above the 0-6000 V AC
Ammeter: Measuring range from 0-15 mA AC above
Load resistance: 500 k Ω - 800 k Ω, more than 0.5 watt
