Tensile testing machine
Tensile testing machine is a device for testing the pull-off force of wire harness terminals, designed to ensure the quality and reliability of wire harnesses and electronic products. This test instrument is mainly used to detect the pull-off force between wire harness terminals to ensure the reliability of the product in various usage environments.
1.Product
parameter:
Voltage:
110V
Power: 0.1kW
Unit of measurement: kg.f / N / LB
Maximum speed: 600mm/min(real measured data)
Testing range: ≤490N(50kgf)
Testing accuracy: ± 0.09lbs(0.04kg)
Package size: 20"*10.2"*11" (51cm*26cm*28cm)
Net weight/Gross weight: 24.9lbs(11.3kg)/27.1lbs(12.3kg)

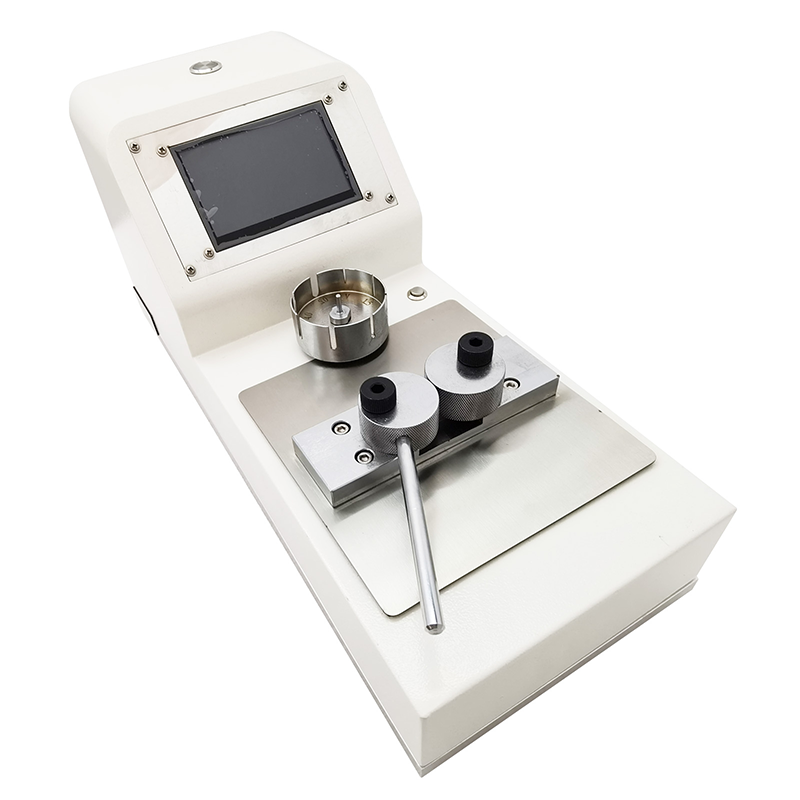

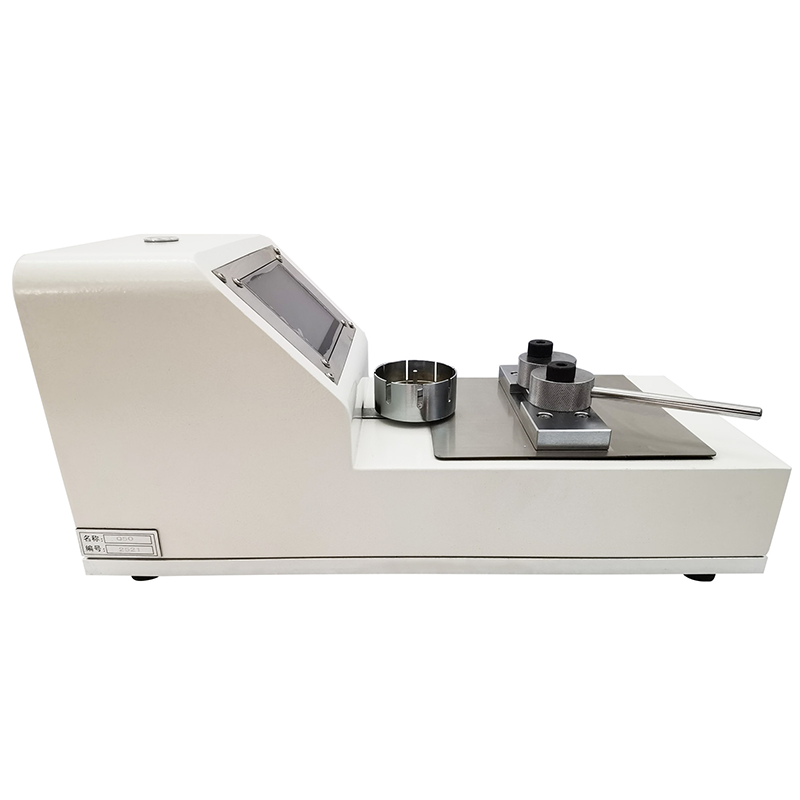

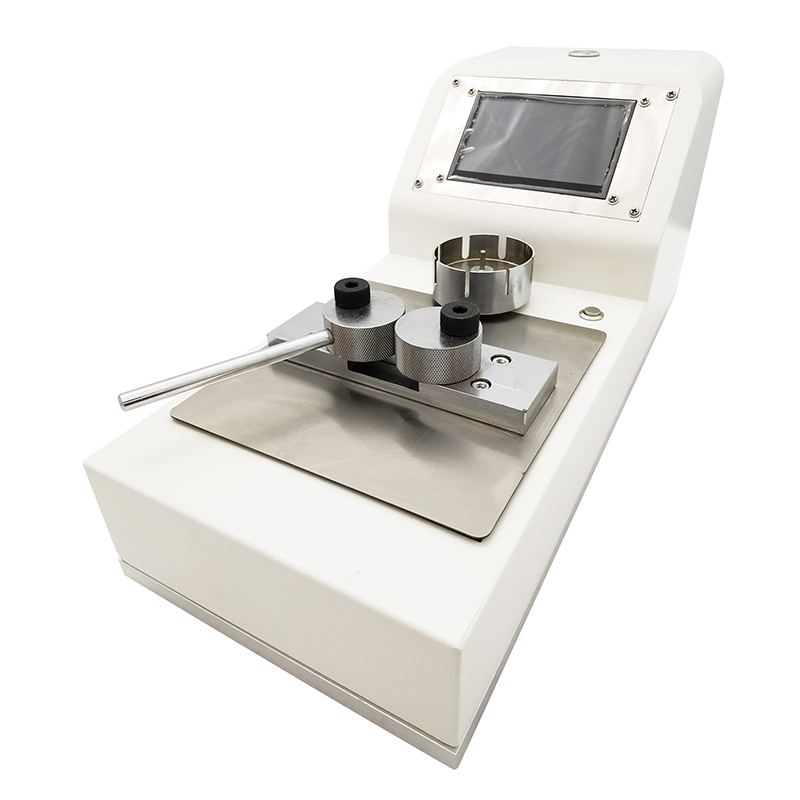

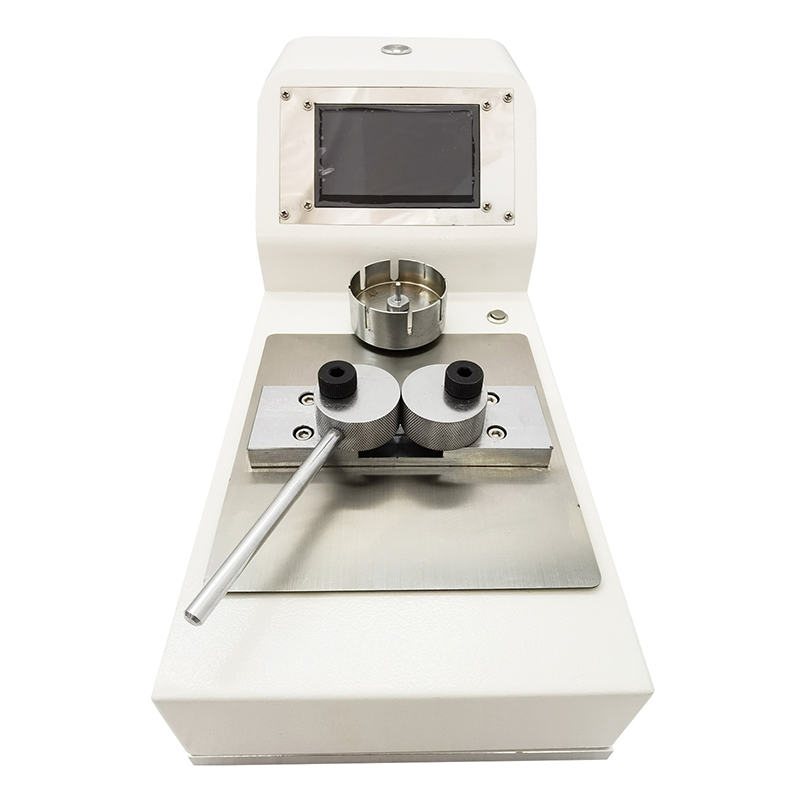

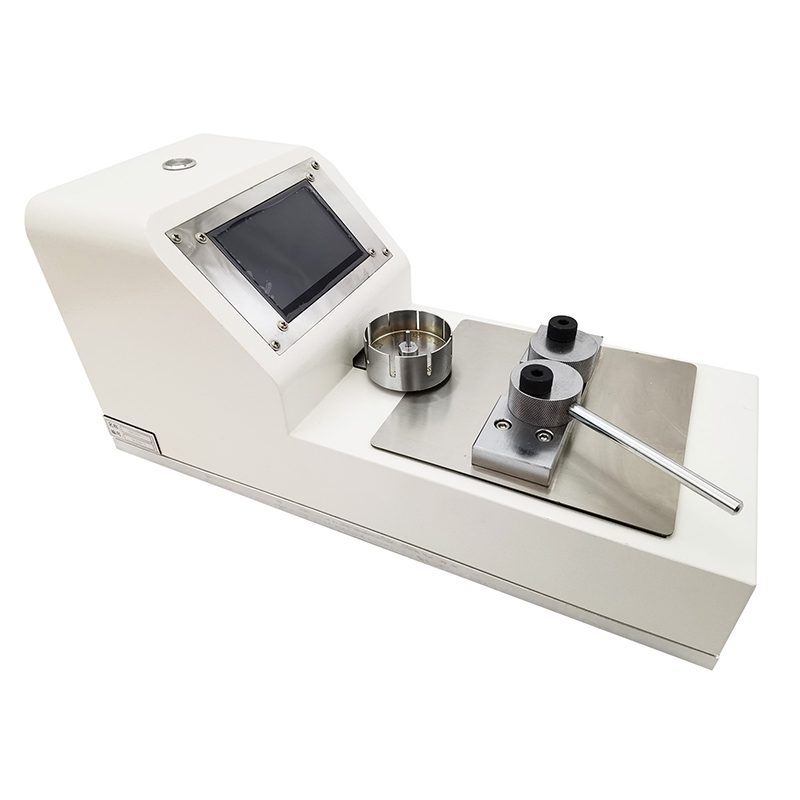

2.Product display:
3.Product features:
-----Touch
Screen
Can switch between Chinese and English, the machine adopts touch screen control,
debugging operation through touch screen input, accurate and convenient. After
the test is completed, it will automatically return to zero and return to
position automatically.
-----CAM Clamping Wheel
Newly upgraded wire clamping wheel, automatic clamping, no need to manually fix
the wire, save worry and effort.
-----Terminal Clamping Disc
This clamping disc can hold wires of different diameters, and can be fixed at
different clamping outlets according to the size of the wires.
-----Supporting Leg
The four rubber support legs at the bottom are non-slip, wear-resistant and
mute, which can ensure the stability of the machine to achieve the accuracy of
the measurement results, and prevent water from entering the machine from the
bottom.

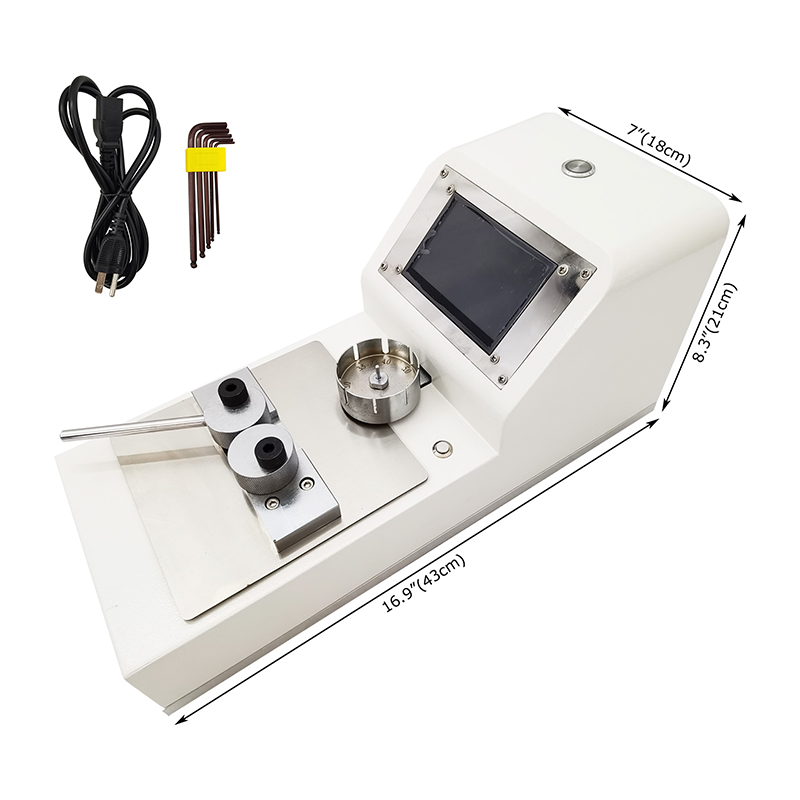

4.Product dimensions:
