Printing Ink Abraser Friction Testing Machine
This machine is mainly used for testing the abrasion performance and ink rub-off rate of printed materials (e.g., ink prints, packaging boxes). It applies standard load with controlled reciprocating friction speed and travel distance on the sample surface to evaluate the contamination level between sample and standard friction paper, as well as surface fluffing or abrasion damage. The instrument complies with GB/T 7706, GB 7707, JIS K5701, ASTM D5264 and TAPPI T830 standards.
1.Product
parameter:
Voltage:
AC110V
Power: 40W
Operation Method: Microcomputer-controlled with LCD display
Test Specimen Area: Dimensions: 2.3"*9.0"(60*230mm)
Friction Speed: Adjustable speed (21/43 rpm), customizable upon request
Friction Load: 2LB, 4LB (0.9kg, 1.8kg)
Friction Stroke: 2.3" (60mm)
Cycle Count Setting: Automatic stop at 0-9999 cycles.
Friction Contact Area: 1.9"*7.8" (50*200mm)
Material: Steel
Package size: 15.7"*13.7"*25.2" (40cm*35cm*64cm)
Net weight / Gross weight: 42.5lbs(19.3kg) / 66.1lbs(30kg)

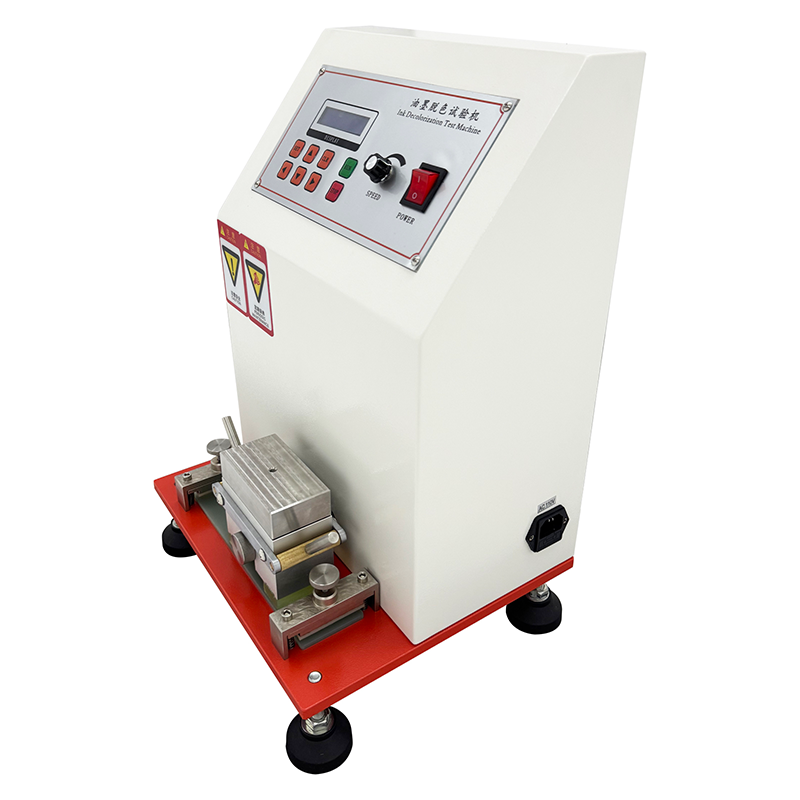

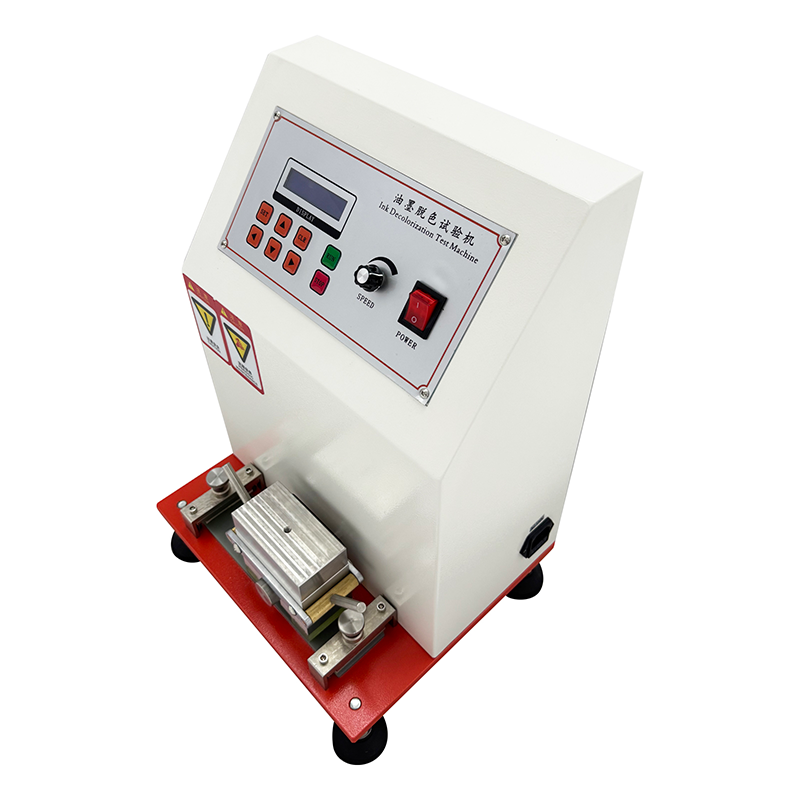

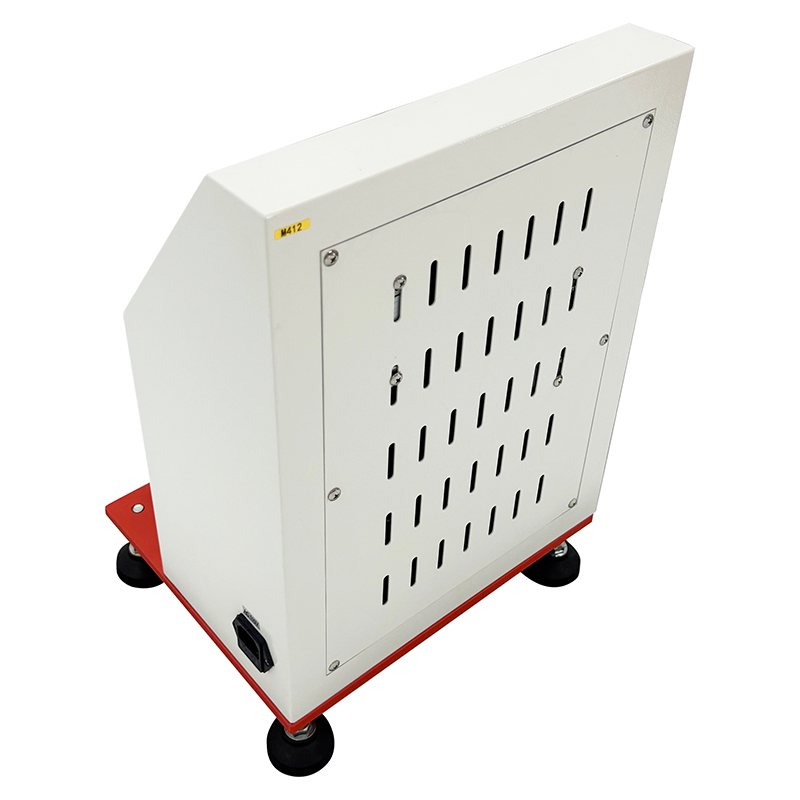

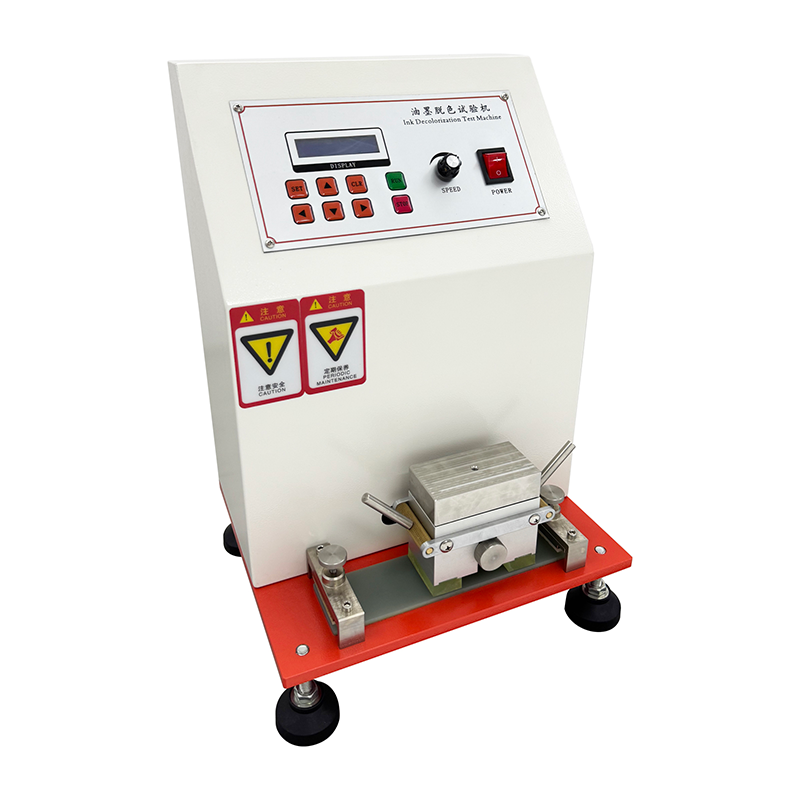

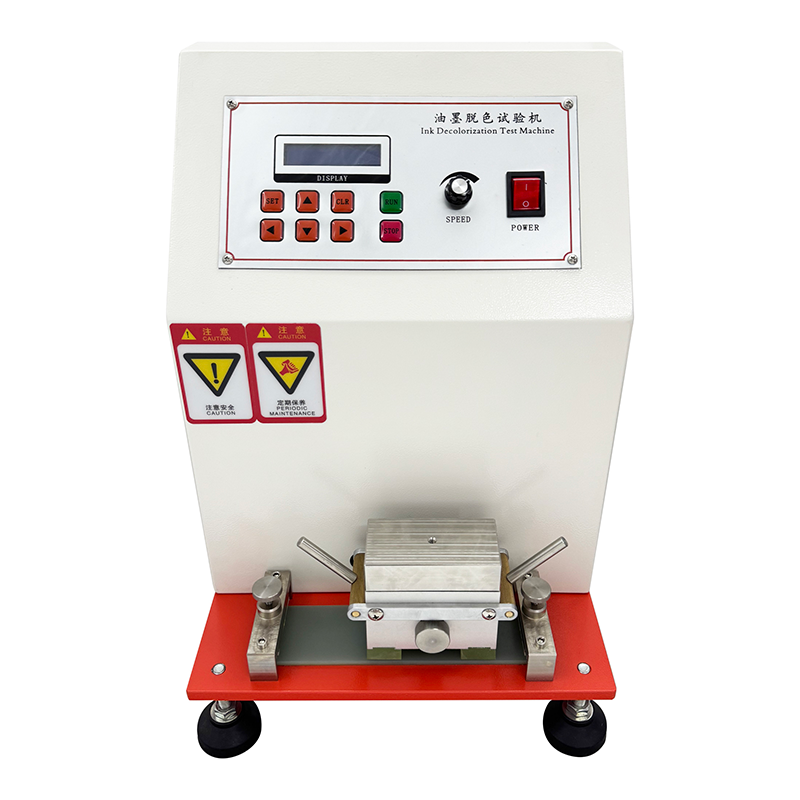

2.Product display:
3.Product features:
-----more
convenient operation.
-----The core metal components adopt a five-layer electroplating process to
prevent corrosion and rust, ensuring greater durability.
-----The main body of the machine is made of high quality corrosion-resistant
steel plate, featuring anti-fouling, high toughness, corrosion resistance, and
rust-proof properties.
-----The equipment is compact, lightweight, space-saving, and highly portable.
-----Non-slip rubber feet provide stable operation, excellent quality, and a
long service life.

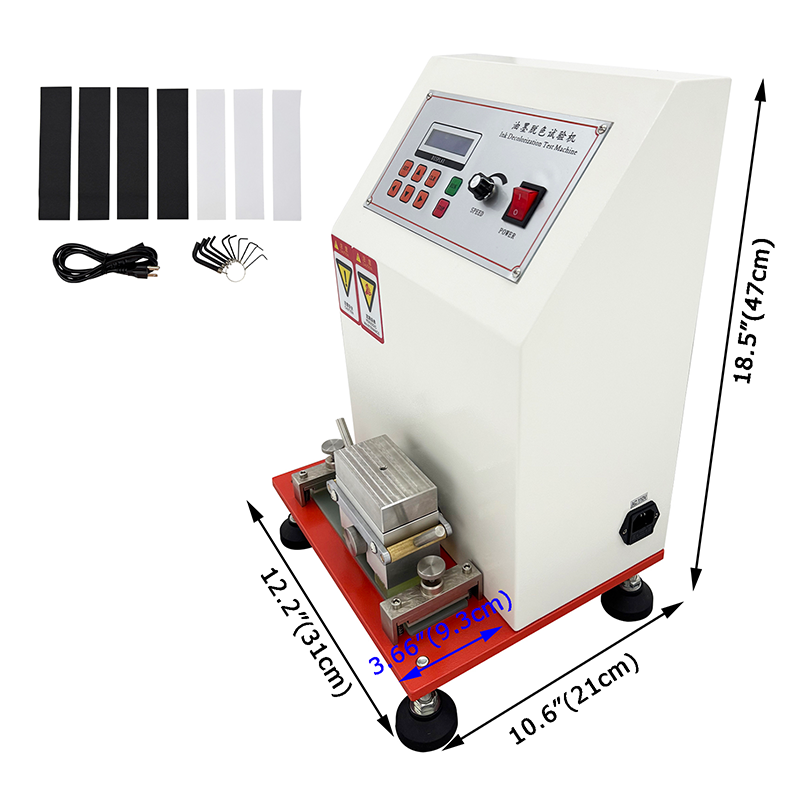

4.Product dimensions:
