1.Product parameter:
Voltage:
110V
Size of probe: 0.79"*0.79"(20*20mm)
5 optional travel distances: 0.5",1",2",3" and 4"(Special travel distances can
be customized)
Friction frequency: 2-60 times/min, adjustable speed
Compliance with relevant standards: ASTM D3884, ASTM D1175, ASTM D1044, ASTM
D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS
L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799
Complies with CE standards, with CE safety mark
Package size: 19.29"*12.20"*12.99" (49cm*31cm*33cm)
Net weight/Gross weight: 30.42lbs(13.8kg)/32.63lbs(14.8kg)

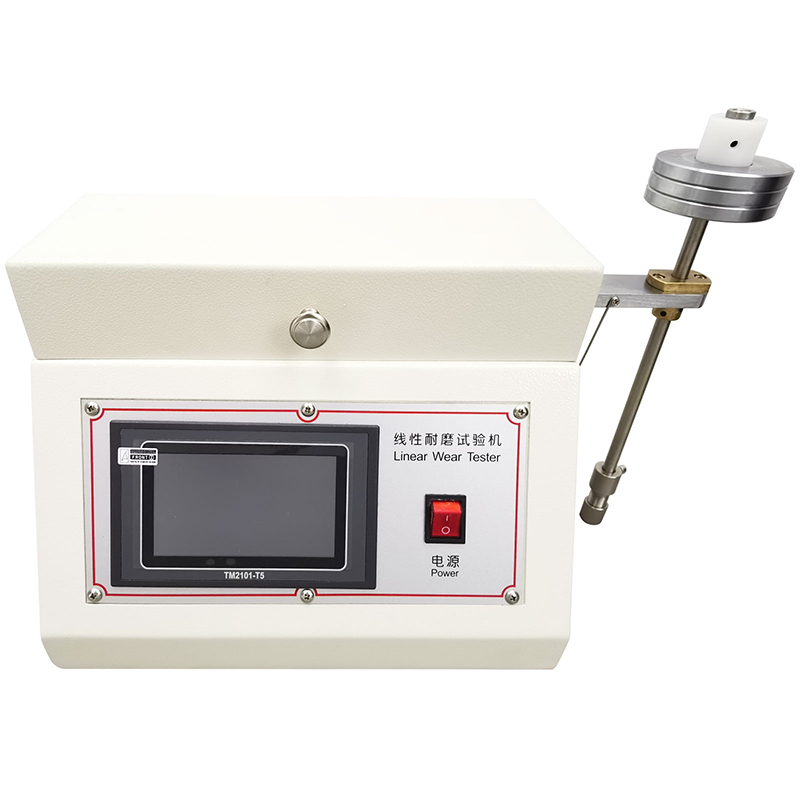

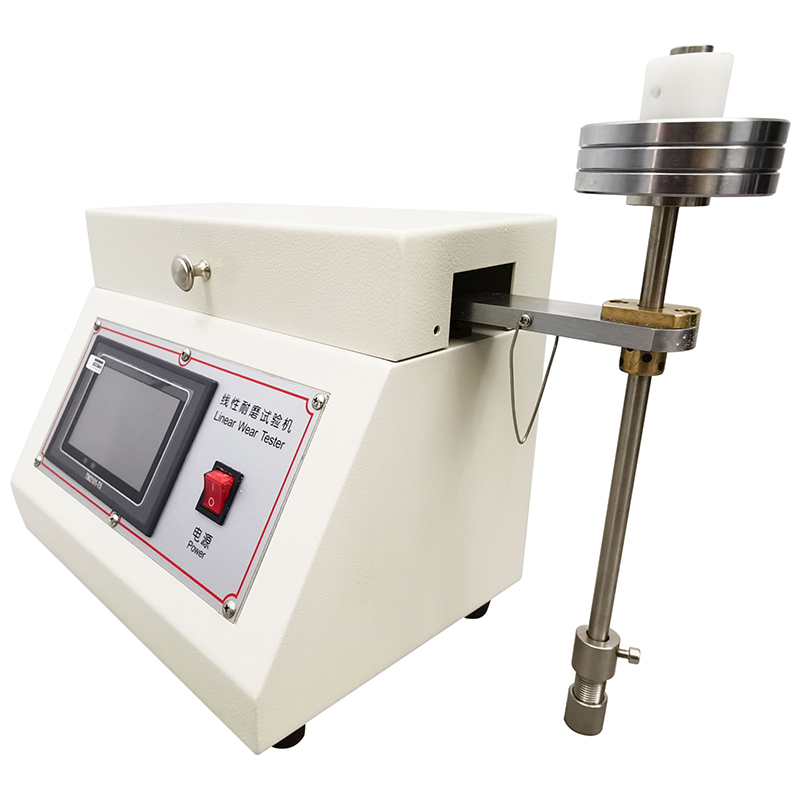

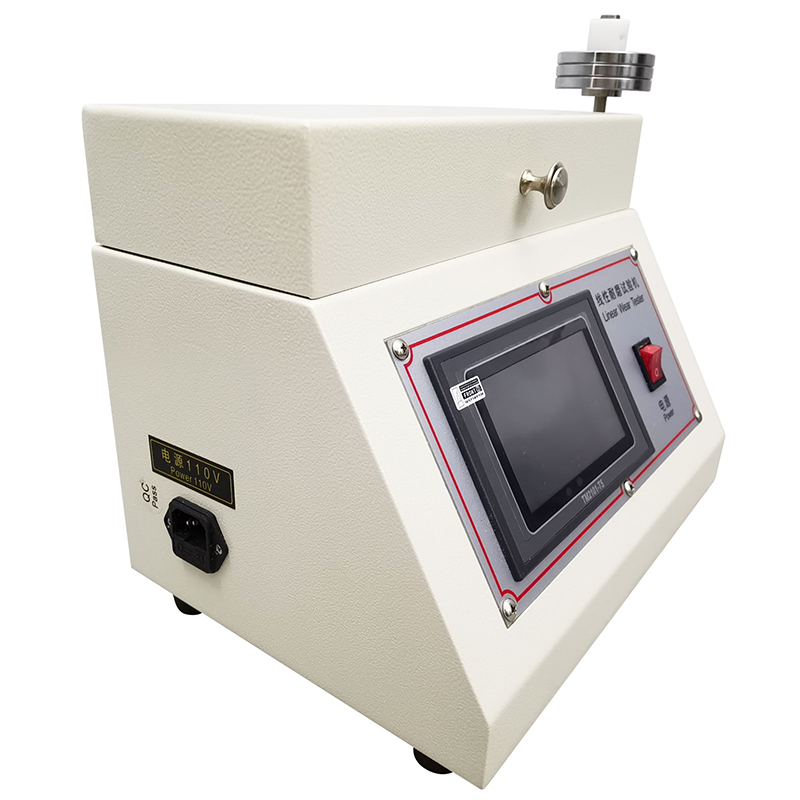

2.Product display:
3.Product features:
-----Parameters such as moving distance, speed, revolution and load can be set.
-----A variety of different wear media and accessories can be selected.
(Optional sample holder and other optional accessories for damage testing as
well as alcohol testing, coin scratching, etc.)
-----Ensure the stability and accuracy of the test: The general grinding head is
made of high-quality wear materials. Can ensure the stability of the test.
-----There are rubber support legs at the bottom, anti-slip and wear-resistant,
with a certain cushioning, to ensure the smooth operation of the machine.
-----The bottom of the machine has a certain distance from the table, which is
convenient for handling , and can prevent water from entering the machine from
the bottom.

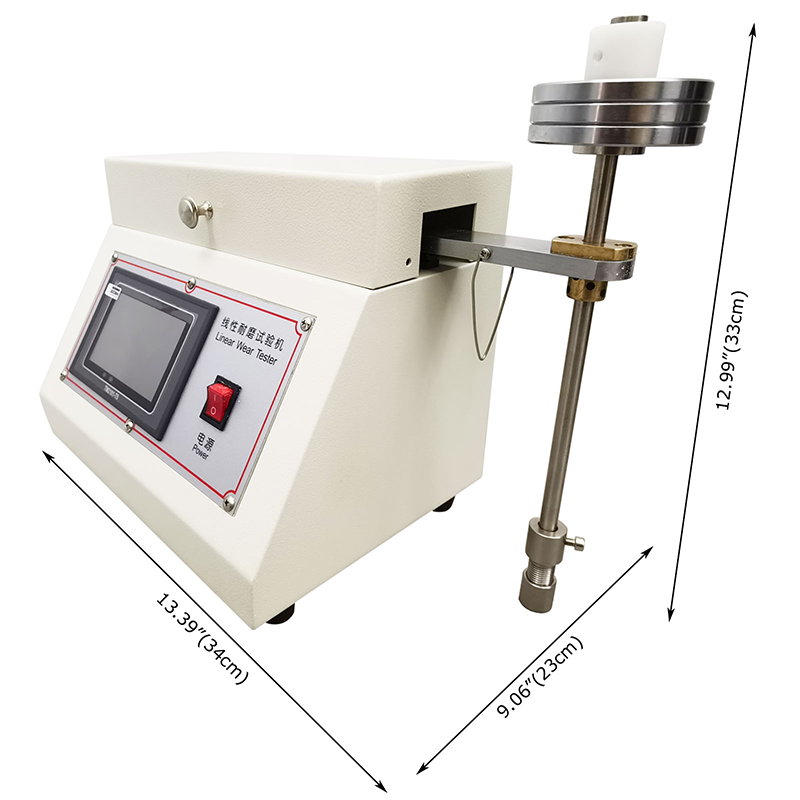

4.Product dimensions:
5.Product Details:
-----LCD
Touch Screen
The control panel is intuitive and simple, you can set the test times and test
speed, data display at a glance, simple and convenient operation.
Can set back and forth times, maximum 999,999 times (note, that the grinding
head rubber during this period may need to change); Can be set up test program.
-----Premium Quality
The use of anodized aluminum, durable, corrosion resistant, lightweight,
beautiful. There are three 250 gram disc weights, the surface of the weight is
plated with stainless steel, which can prevent corrosion and rust.
-----Height adjustable
You can adjust the height of the test rod by simply turning the screw, suitable
for testing various thicknesses of materials, easy to use.
-----Compact Design

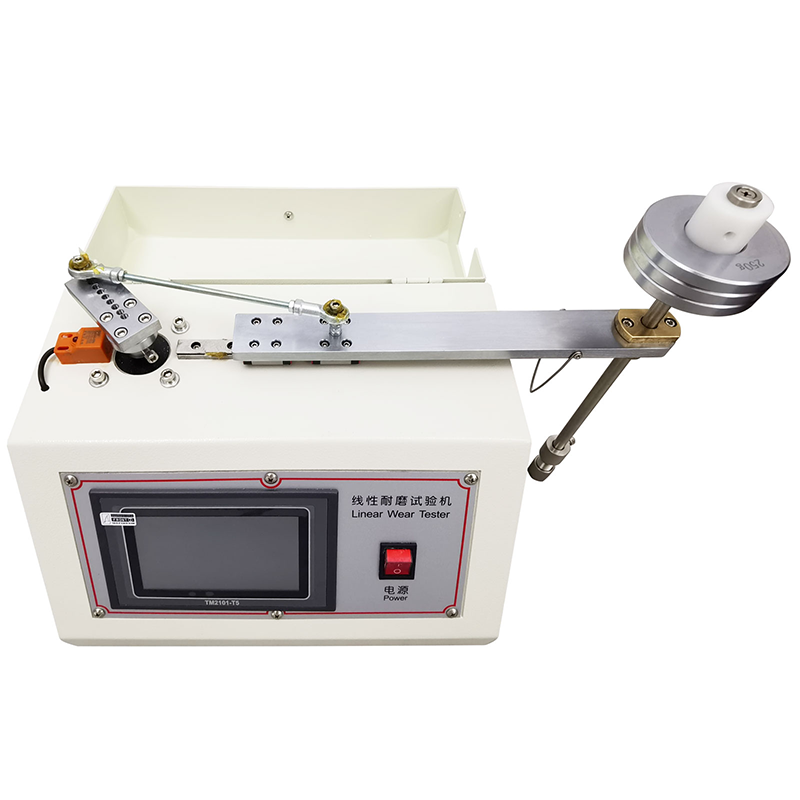

Eccentric shaft construction for adjustable travel. Sensor, each revolution the
sensor will sense, the control panel will count, represents how many times the
friction.
-----Wide Range of Application
It can test the wear resistance of plastics, auto parts, rubber, leather and
textiles, electroplating, paints, printing patterns and other products.
