UV Light Accelerated Aging Test Chamber
This UV aging test chamber is designed for UV aging resistance testing of materials such as leather, plastics, rubber, and fabrics under UV radiation and water exposure. Since ultraviolet (UV) light in sunlight is the primary cause of oxidative degradation in polymers, and moisture significantly accelerates aging, this system efficiently simulates outdoor weathering conditions, providing practical evaluation of the relative weather resistance of test specimens. Widely used in industries including coatings, resins, plastics, printing & packaging, and more.
1.Product parameter:
Voltage:
AC110V
Total power: 1.5kW
UV source wavelength: 315~340nm(UVA)
Test lamp: 20W UV lamp tube *3 pcs
Rated lifespan of the lamp tube: 1000 hours
Maximum number of test pieces: 24
Controller: Touch screen controller
Temperature range: RT～60℃
Material: SUS304 stainless steel
Test time range: 0.01s~99.99s/0.1h~999.9h
Spray time range: 1s~99min59s/ 1min~9999min (dual setting)
Sample dimension: 2.9"*5.9"*0.02"(75*150*0.6mm)
Sample rotating rack drive motor power: 0.025kW
Sample shelf rotate speed: 3.7 cp.m
Sample rotating rack diameter: Ø7.4"-9.8" (Ø189–249mm)
Water pump flux: 47 L/min
Water pump power: 0.08kW
Package size: 40.1"*23.2"*28.7" (102cm*59cm*73cm)
Net weight / Gross weight: 110.2lbs(50kg) / 171.9lbs(78kg)

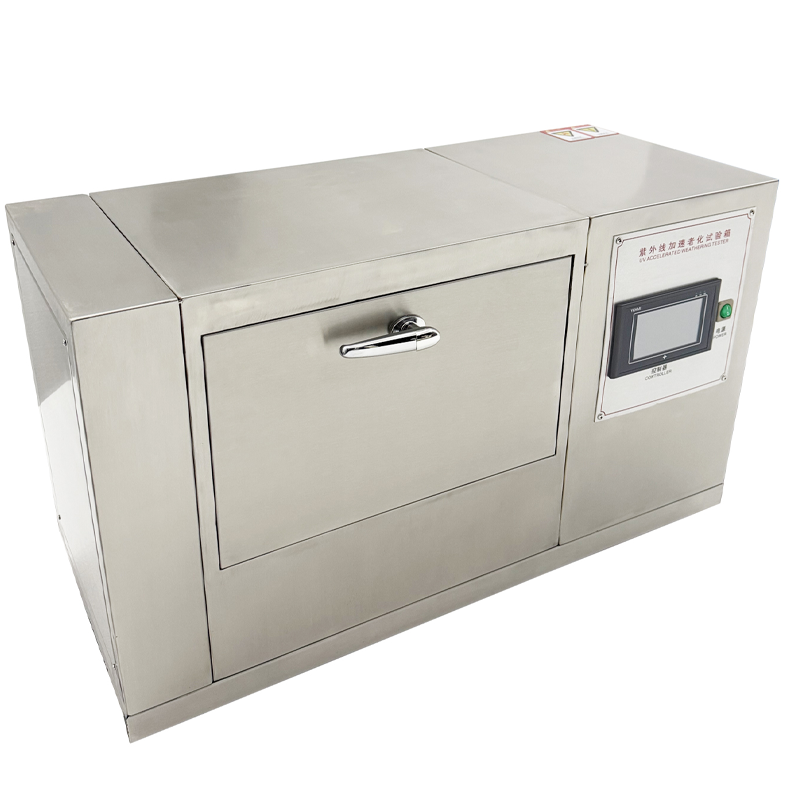

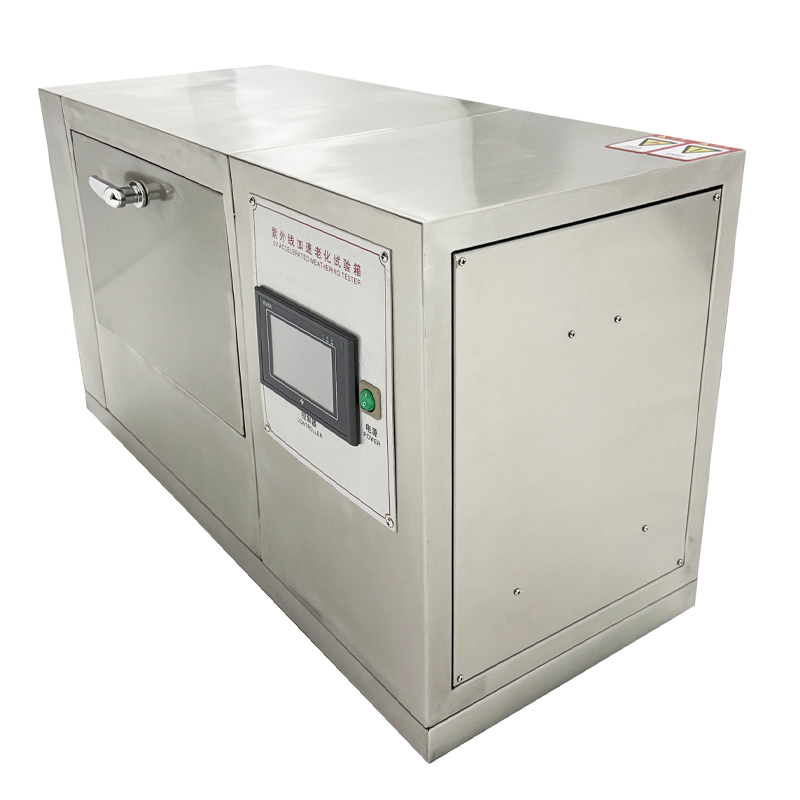

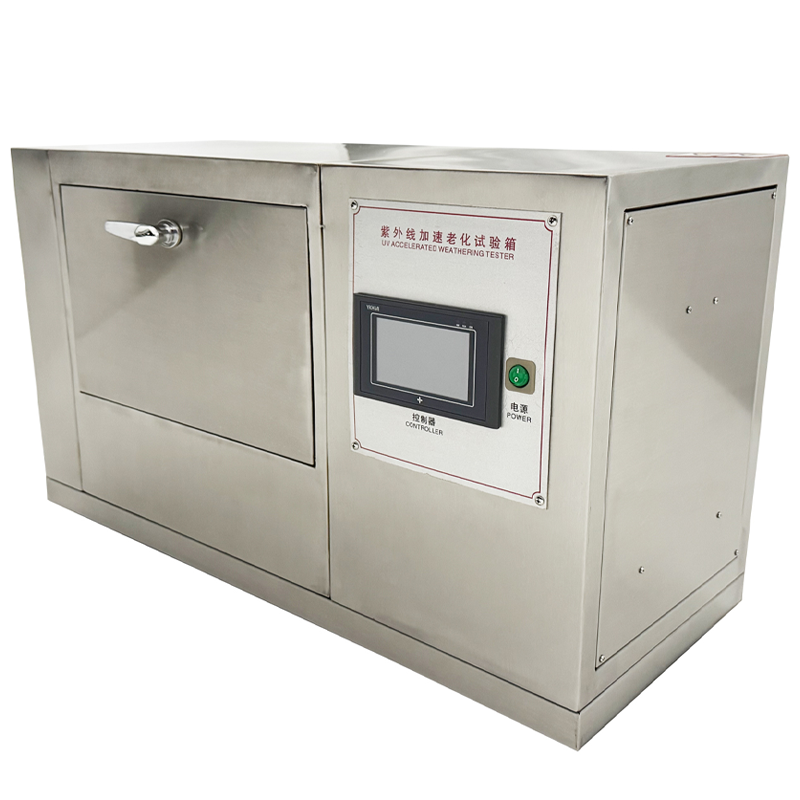

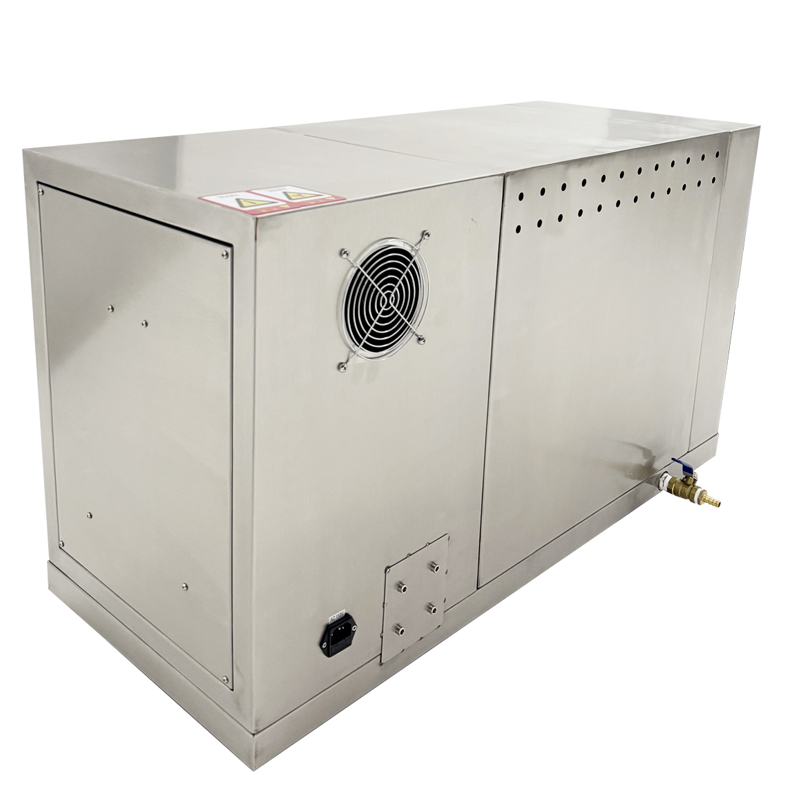

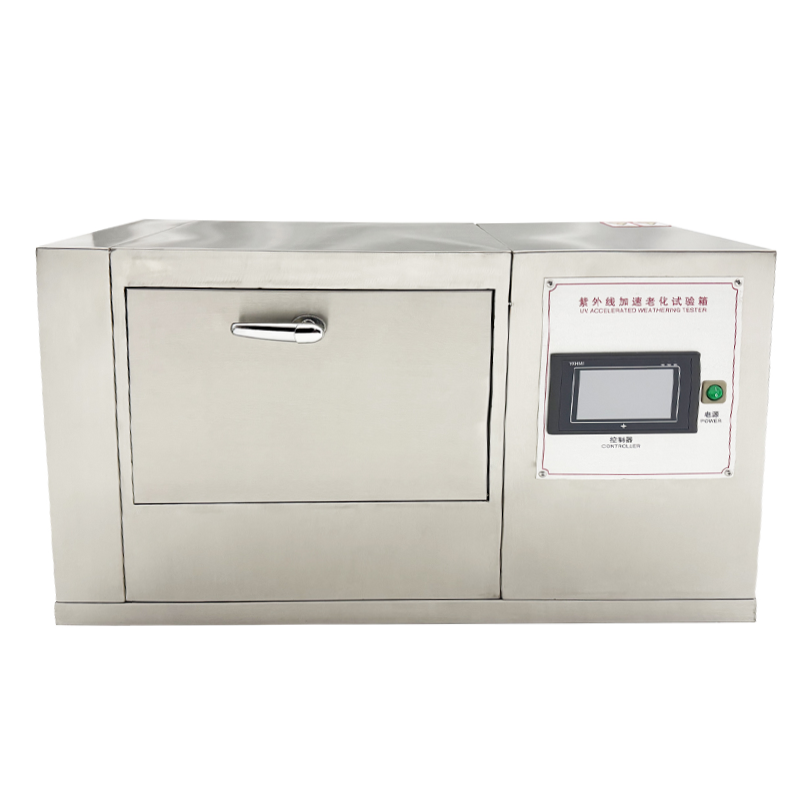

2.Product display:
3.Product features:
-----304 Stainless Steel Material
The 304 stainless steel construction delivers exceptional corrosion resistance,
high-temperature durability, and structural stability, making it ideal for
prolonged exposure to UV radiation, high humidity, and spray environments.
-----Temperature-Controlled Spray Function
Precisely simulates outdoor temperature/humidity fluctuations and water exposure
effects to accelerate material aging tests.
-----Triple UVA Lamp System
High intensity UV output accurately replicates solar spectrum, enabling
lab-based accelerated UV weathering simulation.
-----User-Friendly Touch Panel
Features an intuitive touch panel for one-touch operation of complex test
protocols, significantly improving weathering evaluation efficiency.
-----Wide Application Range.
Widely used in industries including coatings, resins, plastics, printing &
packaging, and more.

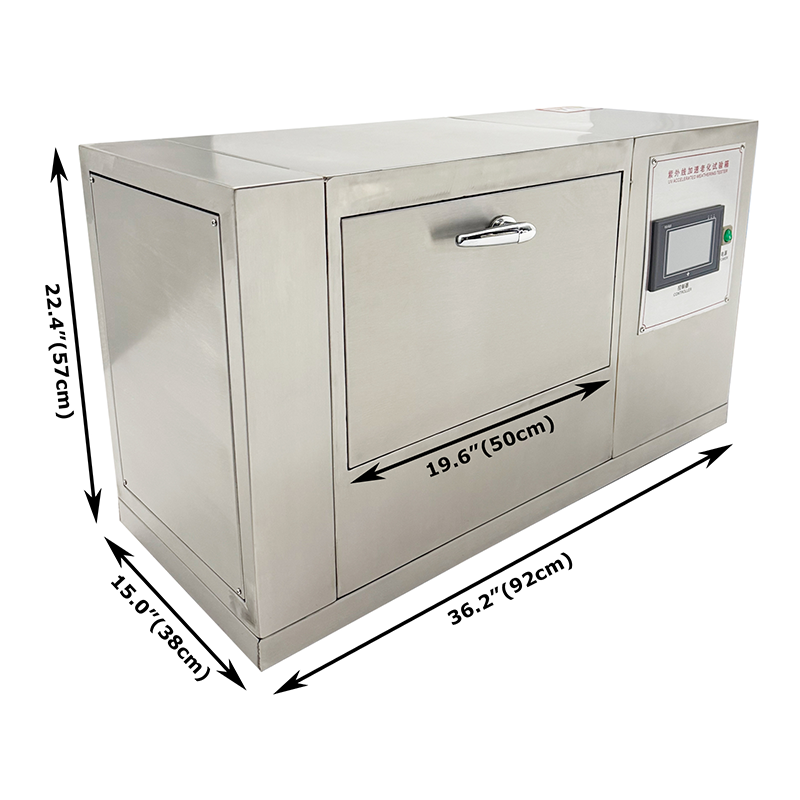

4.Product dimensions:
