Steam Aging Test Machine
Steam aging testing machine is suitable for accelerated aging life time test of electronic connectors, ssemiconductor ICs, transistors, diodes, liquid crystal LCDs, chip resistors and capacitors, and component metal pins before tin-sticking test; Semiconductor, passive components, parts pin oxidation test. Microcomputer temperature controller, LED digital display, PID+SSR control, simple operation, accurate data, stable performance!
1.Product parameter:
Voltage:
AC110V
Power: 3000W
Timing function: 1-999 minutes/hour
Steam tempuerature: Up to 97℃
Controller: PID + SCR
Material of inner and outer boxes: SUS304 high quality stainless steel
Insulation layer: PV foam
Heating time: About 45 minutes
Control accuracy: ±0.5℃
Package size: 33"*23"*27" (84cm*59cm*69cm)
Net weight/Gross weight: 74LB(33.5kg) / 118LB(53.5kg)

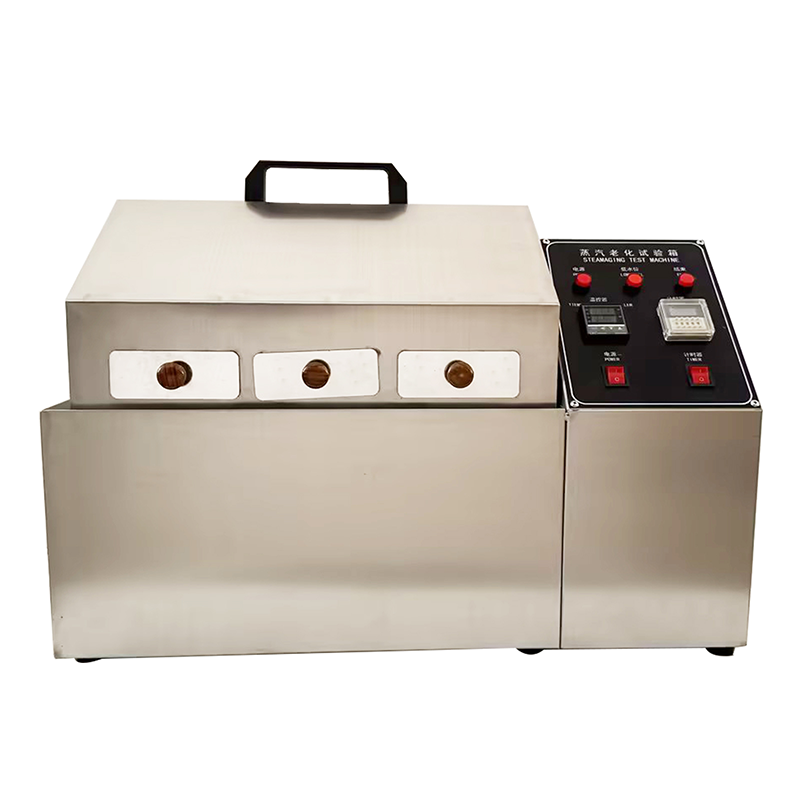

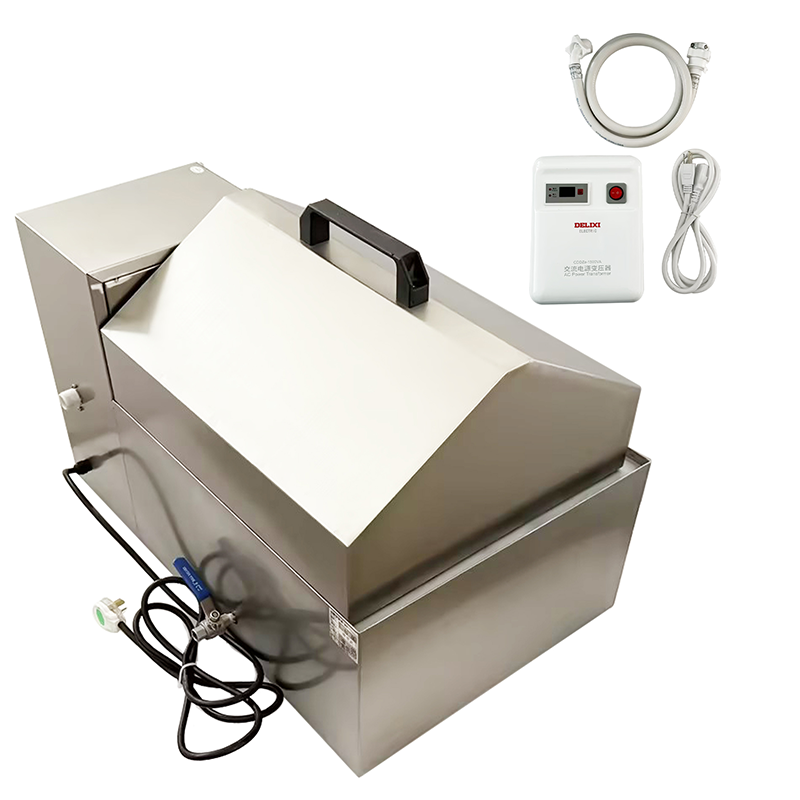

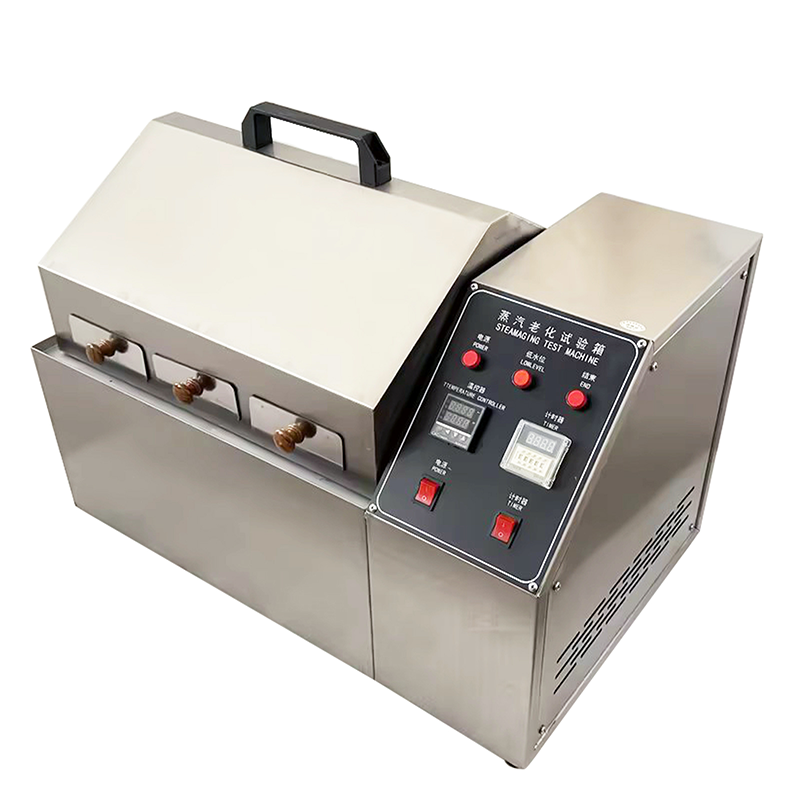

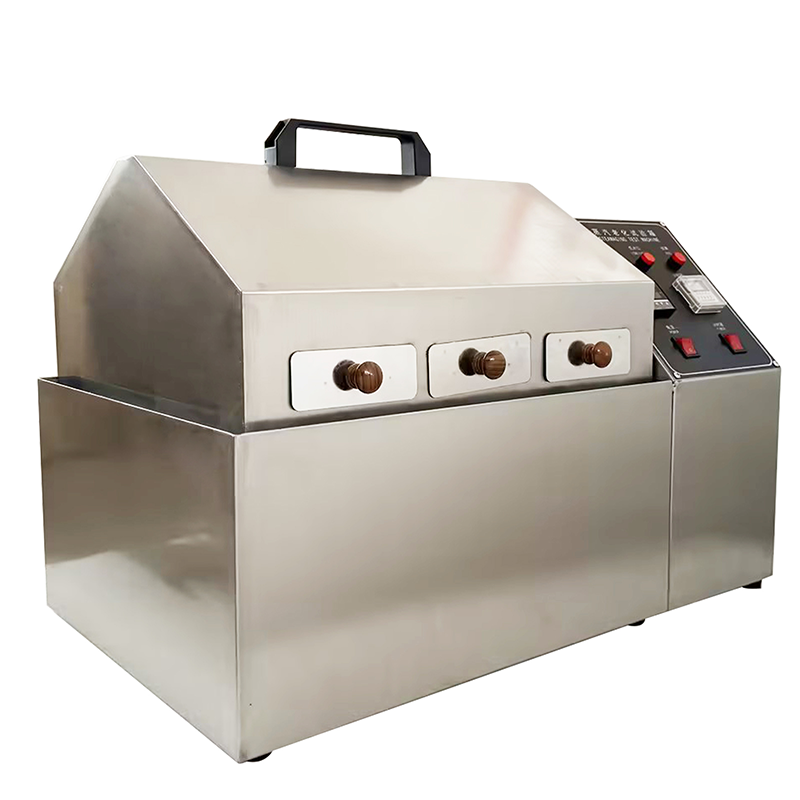

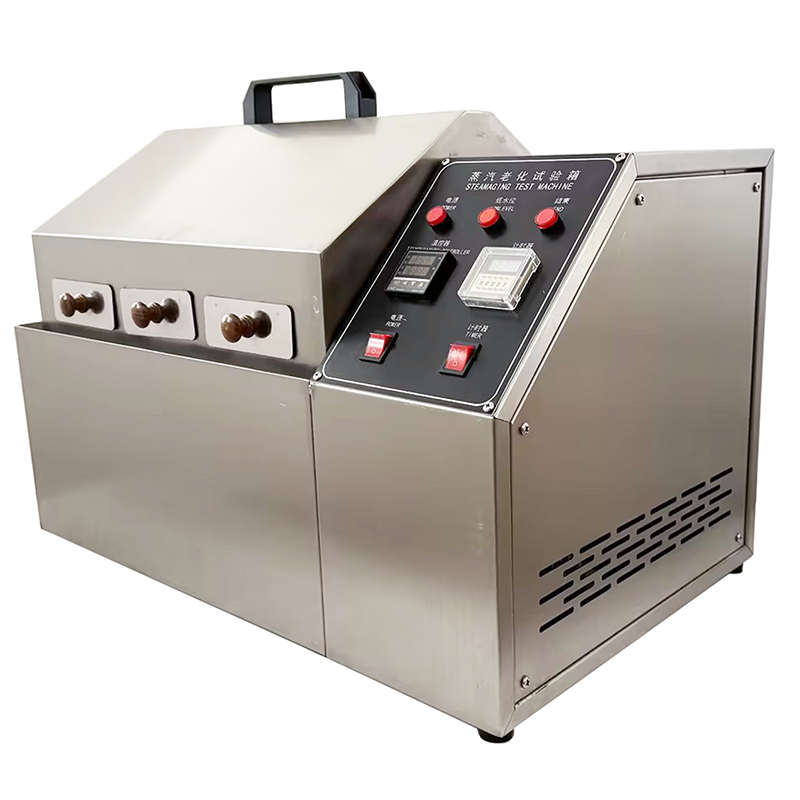

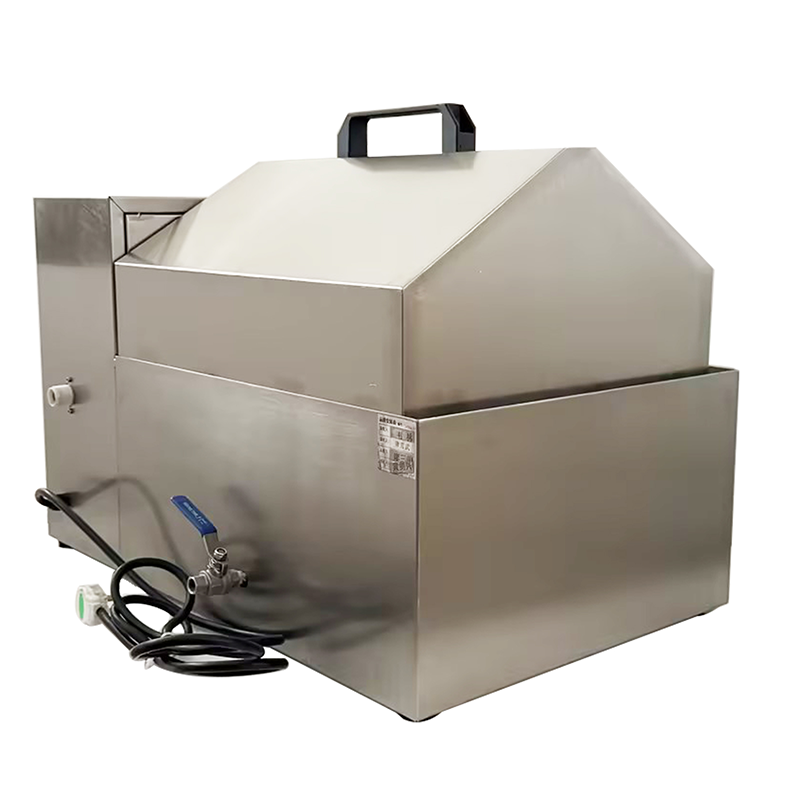

2.Product display:
3.Product features:
-----The inner and outer box are made of
SUS304 stainless steel. Beautiful appearance, not easy to age.
-----With a stainless water tank, can manually add water or external water pipe,
manual or automatic water supply at low water level, to ensure that the
experiment is not interrupted.
-----The use of high-quality temperature control system, PID control, SSR
output, the temperature is more accurate, high temperature quality is more
reliable.
-----Timer can be diversified Settings, (can be set seconds/minute -
seconds/minute/hour - minute/hour). Equipped with power outage memory function,
it can continue working according to the set time after power outage and power
restoration.
-----The full detection system is used, and the light is on when the fault
occurs, which is convenient for the operator to understand the equipment
condition in time.
-----The heating pipe of the heating system uses titanium tubes. Not easy to
corrode, longer service life.
-----High stability platinum probe, less error.

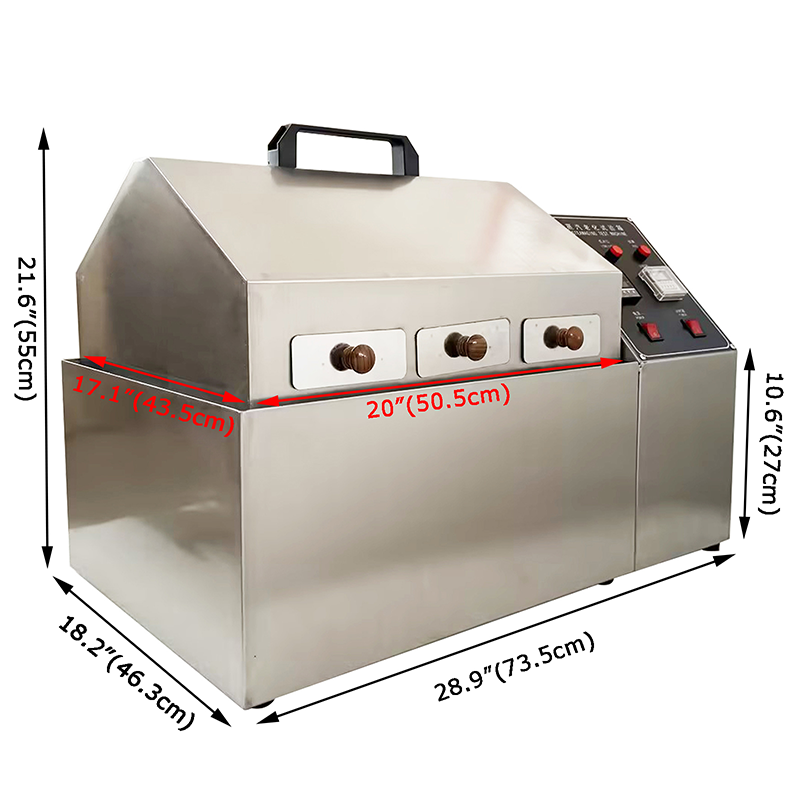

4.Product dimensions:
