110V MP-3000A Electromagnetic Fixed Frequency Vertical Vibration Test Table
Product Overview
Electromagnetic vibration test rig for specific to undergo several times after vibration object to be tested whether can achieve ideal standard of a kind of test, simulation products in manufacturing, assembly, transport and use that occur in the execution phase of various vibration environment, to identify whether products bear the ability of environment vibration, mainly for the circuit boards, electronic components, power will be poor contact, desoldering, false welding, etc.
1.Product parameter:
Voltage:
AC110V
Power: 0.9KW
No-load vibration amplitude: 0-0.08" (0-2mm)
Vibration frequency: 50hz
Table size: 15.1"*13.8" (38.5cm*35cm)
Vibration table material: Antirust aluminum plate
Vibration wave: Sine wave
Time setting: 1 second-99 hours
Vibration direction: Vertical
Amplitude monitoring value: Display 1-100%
Time display: 99H: 99M: 99S
Test load: 88LB (40kg)
Operating environment: 0~+45℃
Control precision: ±0.1Hz
Analytical precision: 0.01Hz
Distribution of precision: ±0.1Hz
Packing size: 20.5"*18.9"*13.4" (52*48*34)
Net weight/Gross weight: 73LB(33kg)/ 84LB(38kg)

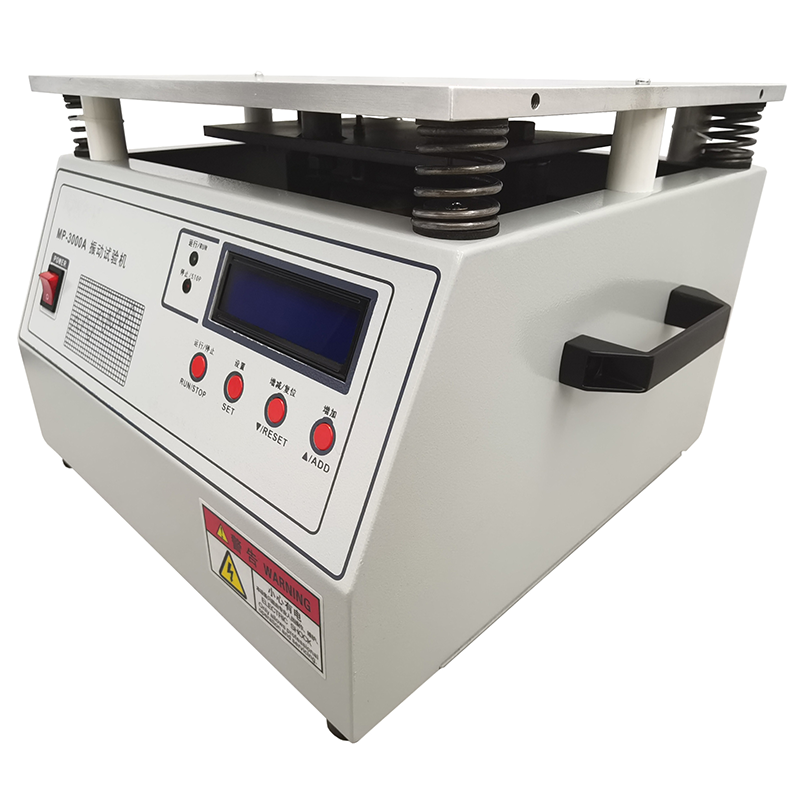

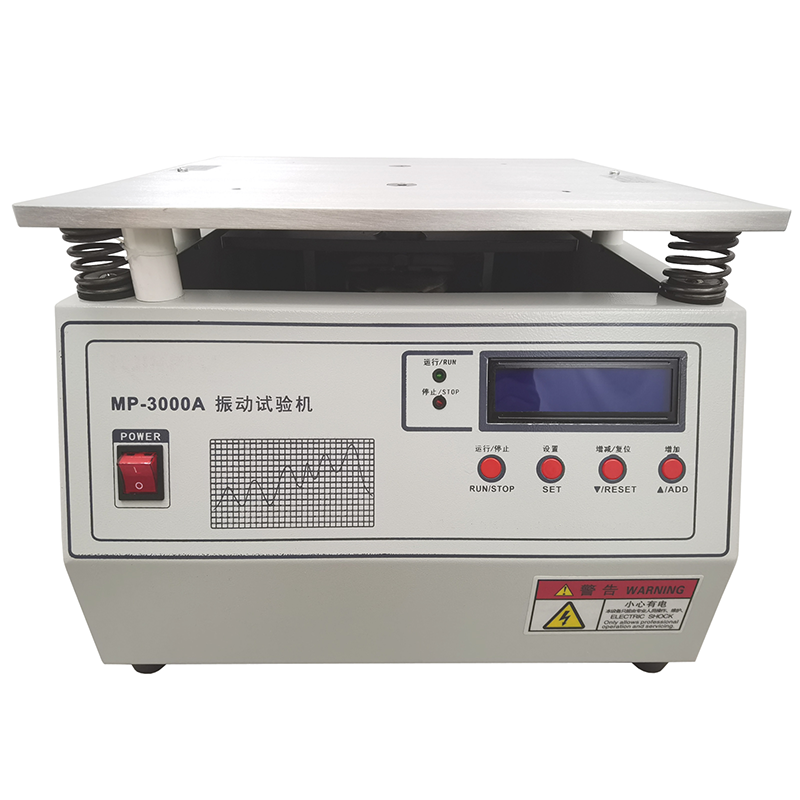

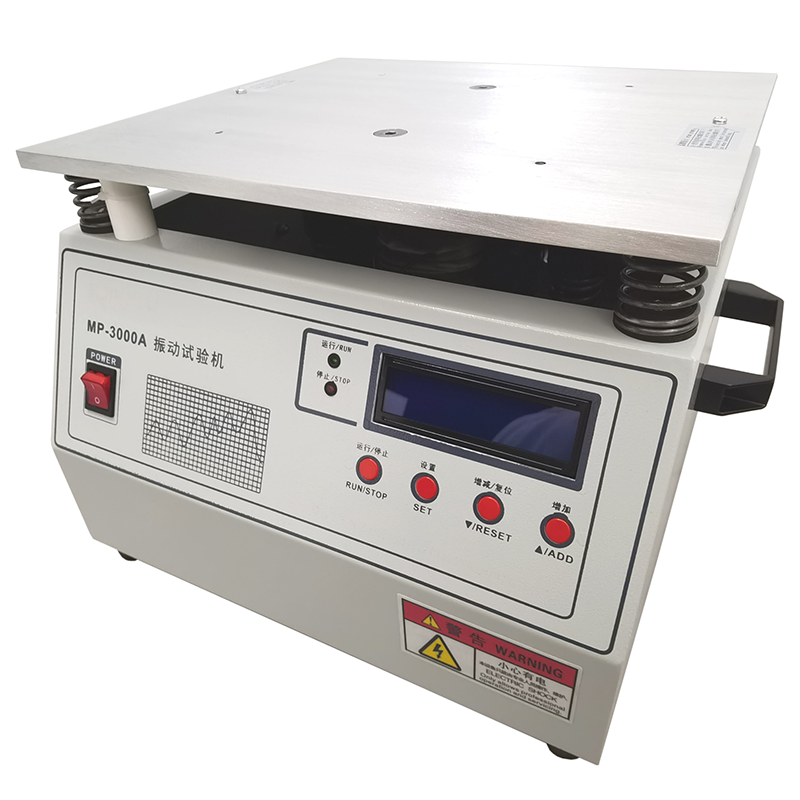

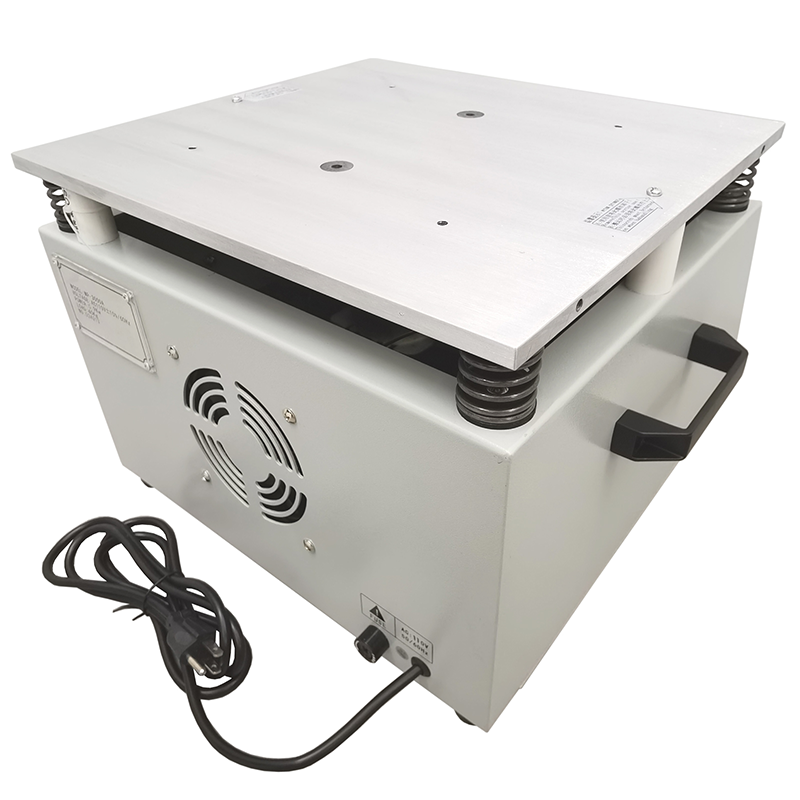

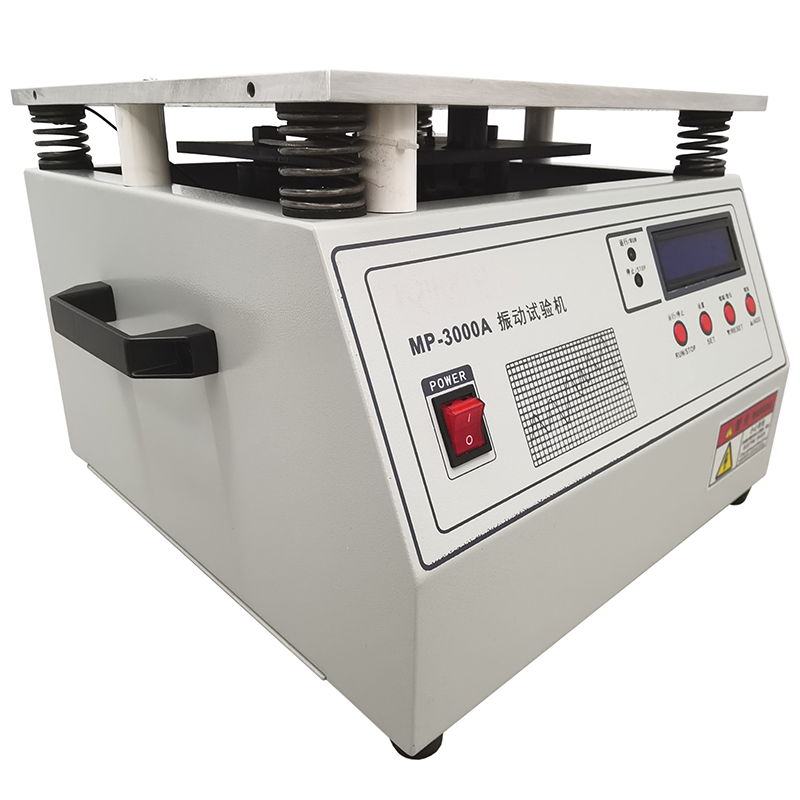

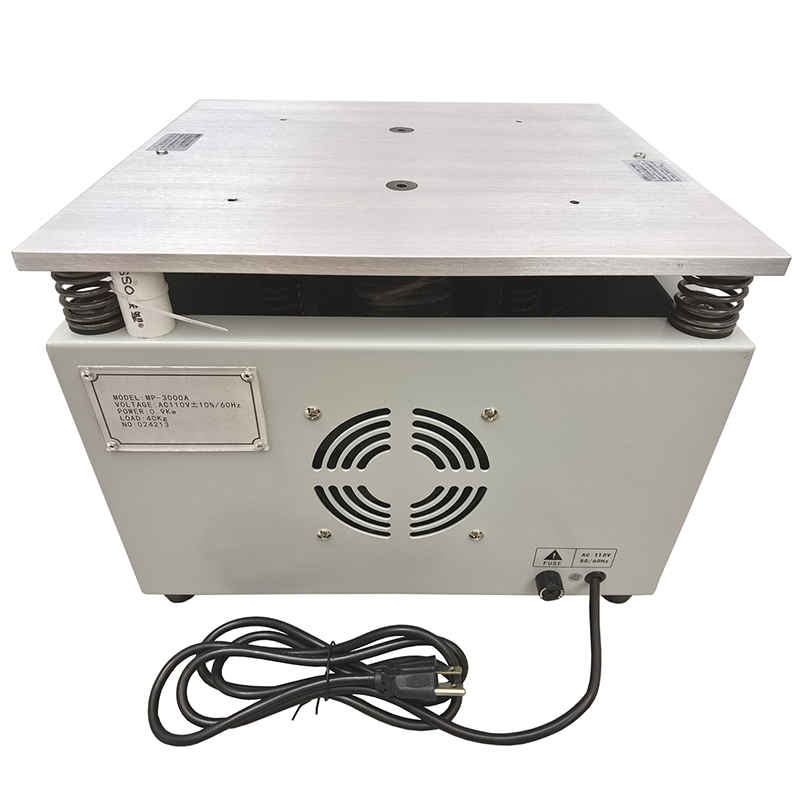

2.Product display:
3.Product features:
-----Delayed soft start, the amplitude
series set at the start is automatically completed within 3 seconds.
-----The use of large screen liquid crystal display, rich content, can store
vibration amplitude series, from 0-100 arbitrary continuous adjustable; The set
time of vibration test and the current real-time vibration running time can be
displayed simultaneously.
-----The machine is easy to install and run smoothly. The digital control and
display frequency of the control circuit and PID adjustment function make the
equipment work stably.
-----Fixed frequency operation mode, adapt to the test requirements of different
industries, add anti-drying circuit, solve the interference of the control
circuit due to strong electromagnetic field; increase the working time setter,
so that the test product reaches the accurate test time.
-----Electromagnetic vibration table is suitable for aviation, aerospace,
communications, electronics, automotive, home appliances, and other industries.

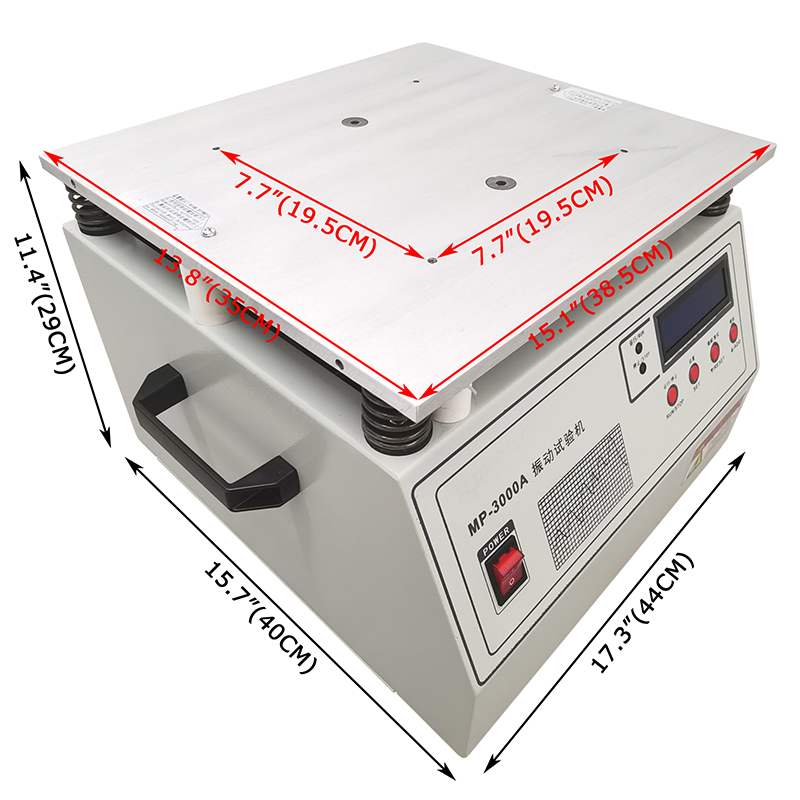

4.Product dimensions:
