MP-3000Z Professional Vertical Vibration Test Bench
Product Overview
MP-3000Z intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries.
The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration. When the machine completes the vibration test stop or the machine is shut down and powered off, the machine will automatically remember the current vibration data and automatically reset.
1.Product parameter:
Voltage:
AC110V
Power: 300W
frequency range: 0~500Hz
Load weight: 22.0lbs(10kg)
Vibration direction: Vertical
Table size diameter: 15.4"*13.8"(39*35mm)
Maximum amplitude: P to P ± 7mm
Service environment: 0~40℃; RH＜80%
Maximum acceleration: 1,000 m/s² P-P
Package size: 20.1"*18.9"*13.4" (51cm*48cm*34cm)
Net weight/Gross weight: 52.9lbs(24kg)/65.0lbs(29.5kg)

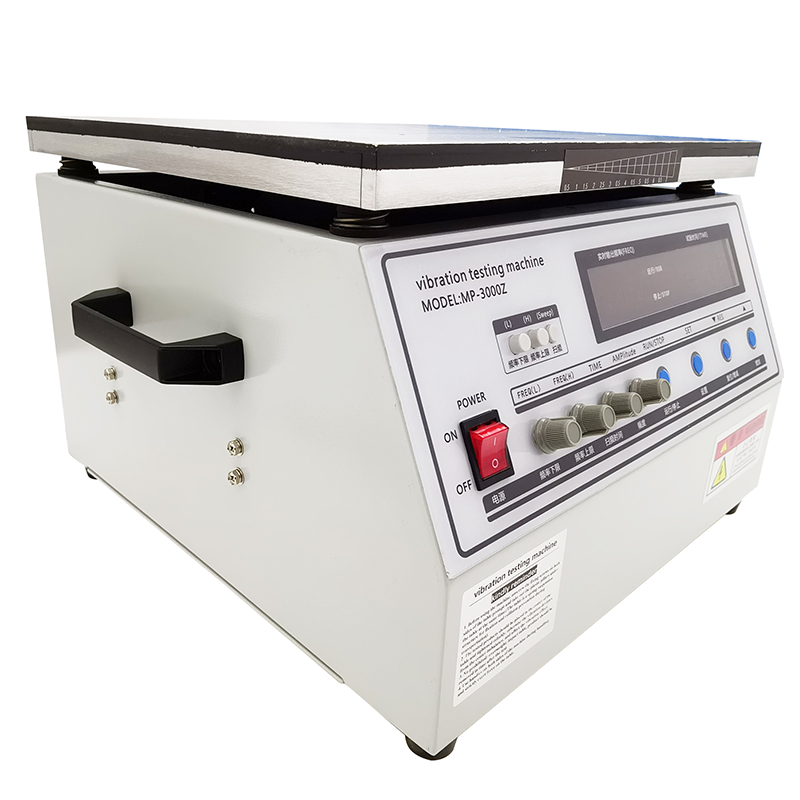

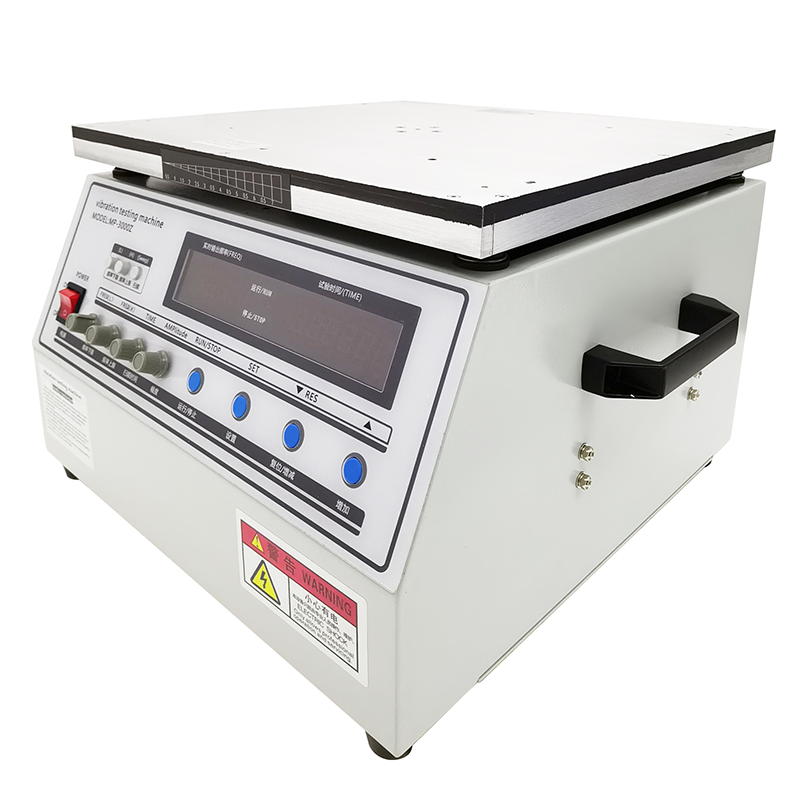

2.Product display:
3.Product features:
-----Power
Off Automatic Memory
Automatic setting, simple operation, the use of advanced microcomputer control
circuit, you can permanently memory set parameters, power will not lose data; At
the same time, the number of vibration program segments and the number of
program cycles can be set.
-----Intelligent Settings
Built-in overload protection fuse, and equipped with high-performance chip, read
data more accurately. The microcomputer protection circuit is adopted to
overcome the defect that the ordinary machine is burned by the impulse voltage
when starting up, and the use is more convenient and reliable.
-----Precise Control
Frequency and amplitude are adjusted independently, without affecting each
other). The maximum amplitude of no load P~P ± 7mm. The amplitude changes with
the change of frequency and load weight, the higher the frequency, the amplitude
decreases and the acceleration increases accordingly.
-----Easy to Move
There are handles on both sides of the machine for easy lifting and handling,
and it can be easily moved to the place where it is needed, saving time and
effort.
Smooth Operation

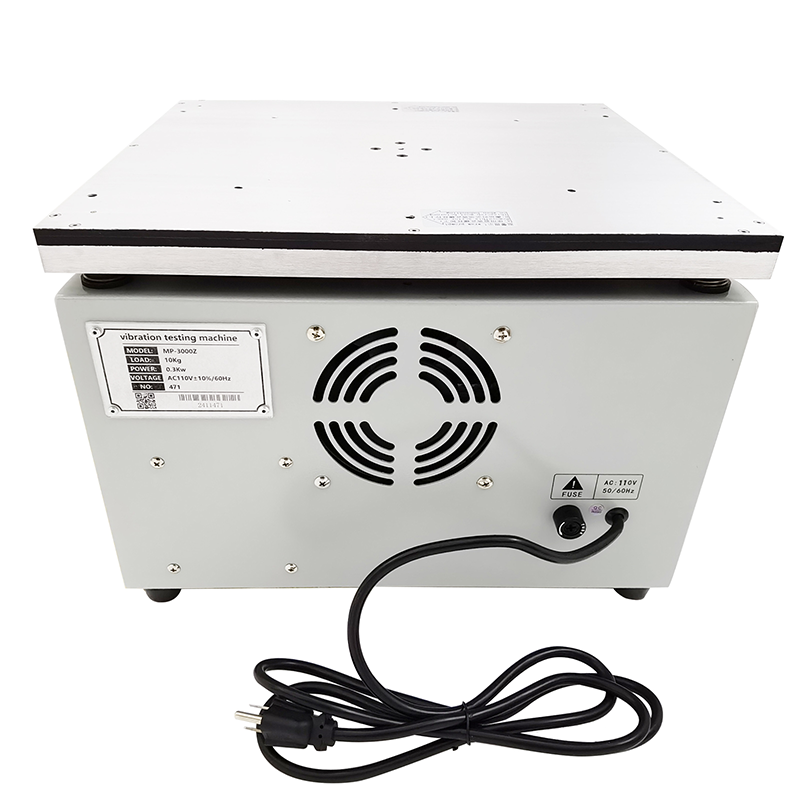

The heat dissipation hole can timely dissipate the heat generated inside,
ensuring that the machine can operate normally for a long time.
-----Safe and Reliable

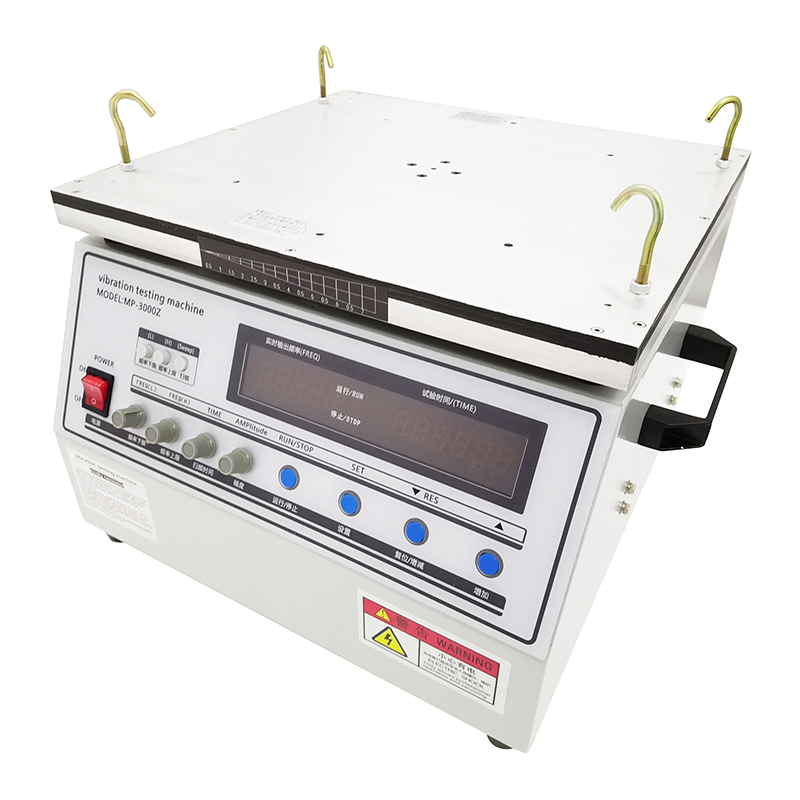

The hooks can be firmly hung on the vibration test machine, while the strap has
enough elasticity and strength to tightly tie the object under test to ensure
that no loosening or displacement occurs during the vibration test.

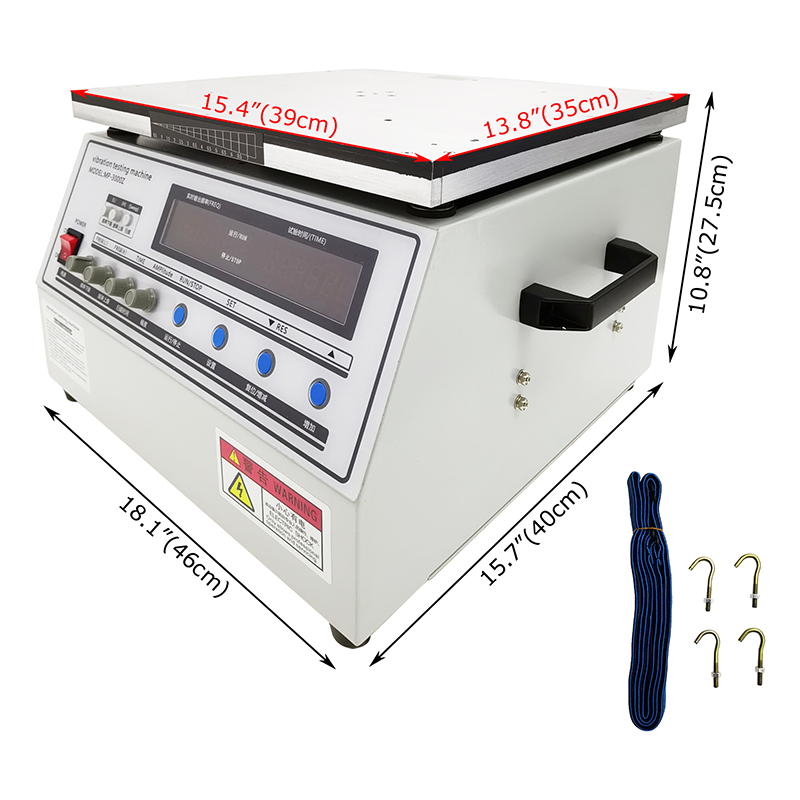

4.Product dimensions:
